Introduction

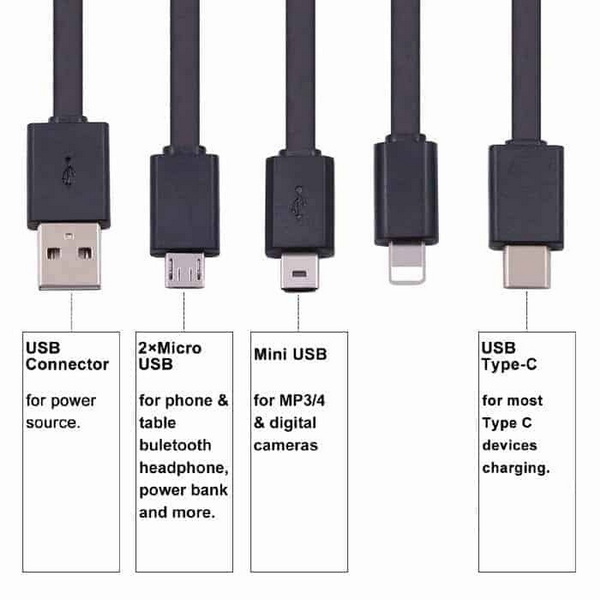

USB (Universal Serial Bus) cables are essential for charging and data transfer between devices. Over time, these cables can degrade or become damaged, leading to connectivity issues. Knowing how to test a USB cable can save you time and money by identifying problems early. This guide provides various methods to check USB cables, troubleshoot common issues, and ensure your cables are functioning correctly.
Why Test a USB Cable?
USB cables are subjected to daily wear and tear, which can cause internal damage that is not always visible. Common issues include frayed wires, broken connectors, and internal shorts. Testing a USB cable helps you:
- Identify Damage: Detect physical damage that may affect performance[5].
- Ensure Proper Functionality: Verify that the cable can effectively transfer data and charge devices[1].
- Save Money: Avoid replacing devices by identifying and replacing faulty cables[1].
- Improve Performance: Ensure optimal charging and data transfer speeds[1].
Required Tools
Before you begin testing, gather the necessary tools:
- Multimeter: For checking continuity and voltage[1].
- USB Tester: A specialized tool for measuring voltage, current, and power[3].
- USB-C Power Meter Tester: For testing USB-C cables specifically[4].
- Known Good USB Cable: For comparison[3].
- Devices for Testing: Smartphones, tablets, or computers[7].
Visual Inspection
The first step in testing a USB cable is a thorough visual inspection. Look for any signs of physical damage[3][5]:
- Fraying or Cuts: Check the cable for any exposed wires or cuts in the insulation[5].

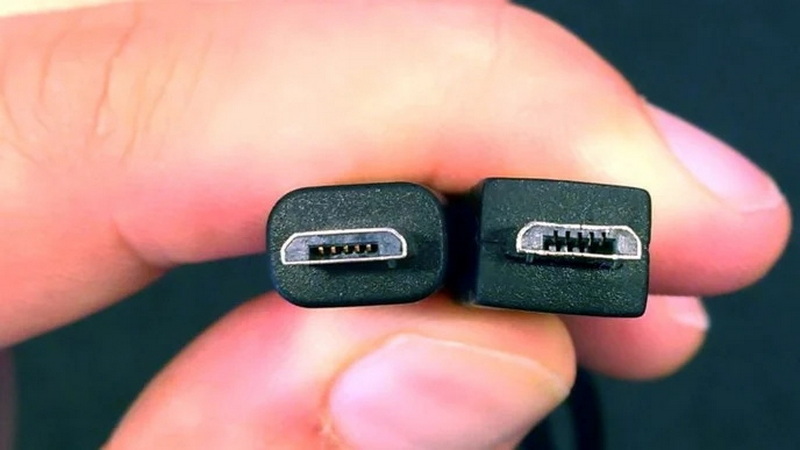

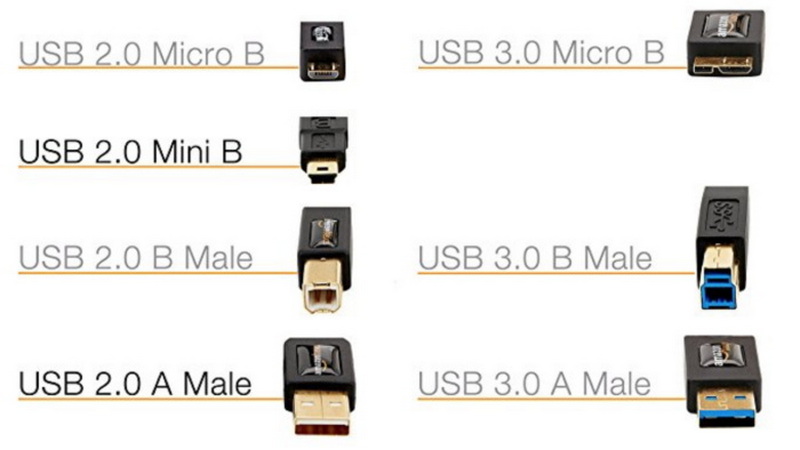

- Bent or Broken Connectors: Examine the USB connectors for bent pins or broken plastic[5].
- Loose Connections: Wiggle the cable near the connectors to see if there are any loose connections[8].
- Debris or Corrosion: Clean any dirt or corrosion from the connectors using a dry cloth[5].
If you notice any of these issues, the cable may be damaged and should be tested further or replaced.

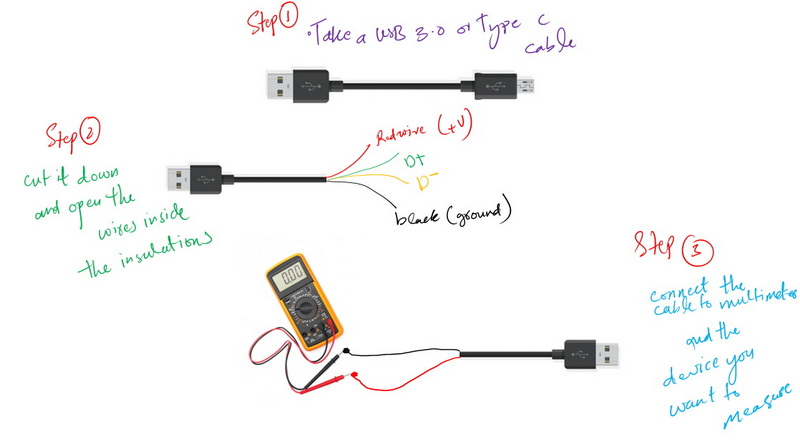

Testing with a Multimeter
A multimeter is a versatile tool for checking the continuity and voltage of a USB cable[1]. Here's how to use it:
Step 1: Set the Multimeter to Continuity Mode
Turn the multimeter dial to the continuity symbol (∞). This mode checks if an electrical circuit is complete. When there is continuity, the multimeter will beep[1].
Step 2: Identify the Cables
A typical USB cable has four wires:
- Red: Power wire (+5V)[1]
- Black: Ground wire[1]
- White: Data wire (D-)[1]
- Green: Data wire (D+)[1]
Step 3: Check Continuity
1. Place one probe on one end of the red wire and the other probe on the corresponding red wire at the opposite end of the cable[1].
2. Listen for the beep, which indicates continuity. If there is no beep, the wire is broken[1].
3. Repeat this process for the black, white, and green wires[1].
Step 4: Check Voltage
1. Set the multimeter to DC voltage mode[1].
2. Connect the black probe to the black wire (ground)[1].
3. Connect the red probe to the red wire (power)[1].
4. The multimeter should display a voltage between 4.5V and 5.5V. If the voltage is outside this range, the cable is likely damaged[1][9][11].
Step 5: Check Data Wires
1. Place the black probe on the black wire (ground)[1].
2. Place the red probe on the white wire (data)[1].
3. Check for a voltage reading. Repeat for the green wire[1].
If the multimeter shows voltage on the data wires, they are functioning correctly.
Using a USB Tester
A USB tester is a specialized device that measures voltage, current, capacity, and power[3]. It can quickly identify bad cables by monitoring the current flow.
Step 1: Connect the USB Tester
Plug the USB tester into a USB port on your computer or a power source[3].
Step 2: Connect the USB Cable
Connect the USB cable to the tester[3].
Step 3: Connect the Device
Connect the other end of the USB cable to the device you want to test[3].
Step 4: Observe the Results
Check the USB tester's screen for the current flow. A functioning cable will show a current value. If there is no current flow, the cable is defective[3].
Testing USB-C Cables
USB-C cables have additional capabilities, such as Power Delivery (PD) and data transfer speeds[7]. To test these, use a USB-C power meter tester[4].
Step 1: Connect the Tester
Plug the USB-C power meter tester into a USB-C port[4].
Step 2: Connect the Cable
Connect the USB-C cable to the tester[4].
Step 3: Connect the Device
Connect the other end of the USB-C cable to a USB-C device[4].
Step 4: Check the Readings
Observe the voltage, current, and power readings on the tester. Verify that the cable supports the expected charging speeds and data transfer rates[4].
Software Tests
Software tests can help determine if a USB cable is data-capable[4].
USBCheck (Android)
USBCheck is an Android app that checks the current draw of a cable[4]. It helps determine if the USB Type-C cable is up to specification[4].
System Information (macOS)
1. Connect the USB-C cable to your MacBook[7].
2. Open the System Information tool[7].
3. Check the data rate supported by the cable when connected to an external USB-C dock[7].
Troubleshooting Common Issues
Even if the cable passes the initial tests, you may still encounter issues. Here are some common problems and how to troubleshoot them:
USB Port Not Working
- Check Physical Connections: Ensure the USB connector is fully inserted into the port[5].
- Try Different Ports: Plug the device into another USB port to rule out port-specific issues[5].
- Restart Your Computer: Sometimes, a simple restart can resolve connectivity problems[2].
USB Device Not Recognized
- Update Drivers: Open Device Manager, locate the device, and update the driver[5].
- Scan for Hardware Changes: In Device Manager, click Action, then Scan for hardware changes[2].
- Disable and Re-enable USB Controller: In Device Manager, expand Universal Serial Bus controllers, right-click each controller, and uninstall it. Restart your computer to reinstall the controllers[2].
Slow Charging or Data Transfer
- Check Cable Quality: Use a high-quality cable that supports the required charging and data transfer speeds[7].
- Avoid Extension Cables: Extension cables can reduce power and data transfer efficiency[7].
- Test with Another Cable: Compare the performance with a known good cable to identify if the issue is with the cable[3].
USB Port Stops Working
- Scan for Hardware Changes: Use Device Manager to scan for hardware changes[2].
- Disable and Re-enable the USB Controller: Use Device Manager to disable and re-enable all the USB controllers[2].
Additional USB Cable Detection Methods
There are several other methods to test USB cables during production and usage[6]:
- Electrical Testing: Measure voltage, current, and resistance to ensure the cable meets specifications[6].
- Push and Pull Force Test: Check the cable's ability to withstand physical stress[6].
- Rocking Test/Swing Test: Simulate daily wear and tear by repeatedly bending the cable[6].
- Unplug and Plug Test: Verify the durability of the connectors through repeated insertions and removals[6].
- Salt Spray Test: Assess the cable's resistance to corrosion in humid environments[6].
- Temperature Test & High-Temperature Test: Evaluate the cable's performance under extreme temperature conditions[6].
Repairing a USB Cable
If a USB cable is damaged but not beyond repair, you can attempt to fix it. This is generally recommended for experienced users only[8].
Step 1: Cut Off and Open
Cut off the USB plug and carefully cut open the plastic casing using a Stanley knife[8]. Be extremely cautious to avoid cutting yourself[8].
Step 2: Expose the Wires
Extract the metal innards and expose the wires[8].
Step 3: Re-Solder the Cable
Cut out the damaged cable section and re-solder the wires onto the plug[8]. Ensure each wire is correctly connected to its corresponding pin[8].
Step 4: Reassemble
Reassemble the plug, ensuring the connections are secure and protected[8].
Conclusion
Testing USB cables is essential for maintaining the performance and reliability of your devices. By using a multimeter, USB tester, or software, you can identify common issues and ensure your cables are functioning correctly. Regular inspections and timely replacements can save you time, money, and frustration.
FAQ
1. How do I check if a USB cable is charging properly?
Set your multimeter to DC voltage mode. Place the black probe on the black wire (ground) and the red probe on the red wire (power). The multimeter should display a voltage between 4.5V and 5.5V. If the voltage is outside this range, the cable may not be charging properly[1][9][11].
2. What does continuity mean when testing a USB cable?
Continuity means there is an uninterrupted electrical path between two points. When testing a USB cable, continuity confirms that the wires are intact and not broken, allowing current to flow[1].
3. Can I use a USB tester to check the data transfer speed of a cable?
Yes, a USB tester can measure the voltage and current flow, which can indicate the data transfer capability of the cable. For more precise data speed testing, use software tools like USBCheck on Android or the System Information tool on macOS[4][7].
4. What are the signs of a bad USB-C cable?
Signs of a bad USB-C cable include slow charging, intermittent disconnections, physical damage (fraying, bent connectors), and failure to support expected data transfer speeds. Use a USB-C power meter tester to check voltage, current, and power delivery[4].
5. How often should I test my USB cables?
You should test your USB cables whenever you notice performance issues such as slow charging or data transfer, or if the cable has been subjected to physical stress. Regular visual inspections can also help identify potential problems early[5].
