What does a USB cable do? This article provides a comprehensive exploration of USB cables, their structure, functions, types, and practical applications. It also includes visual aids and videos to enhance understanding. By the end, you will have a thorough grasp of how USB cables work and why they are essential in modern technology.
What Is a USB Cable?
A USB cable, short for Universal Serial Bus cable, is a standardized cable used to connect electronic devices for data transfer and power supply. It serves as a bridge between devices such as computers, smartphones, printers, external drives, and many other peripherals. USB cables enable communication and charging, making them indispensable in everyday digital life.
How Does a USB Cable Work?
Internal Structure of a USB Cable
Inside a typical USB cable, there are four main wires, each with a specific role:
- Red wire (+5V Vcc): Supplies power to the connected device.
- Black wire (Ground): Completes the electrical circuit.
- White wire (Data+): Carries positive data signals.
- Green wire (Data-): Carries negative data signals.
The cable is also shielded with a metal covering to protect against electromagnetic interference, ensuring stable and reliable data transmission.
When a device is connected, power flows through the red wire to charge or power the device, while data signals travel through the white and green wires in a balanced manner. The black wire grounds the circuit, preventing voltage fluctuations.
USB Connector Types and Pinouts
USB cables come with various connector types, each designed for different devices and purposes:

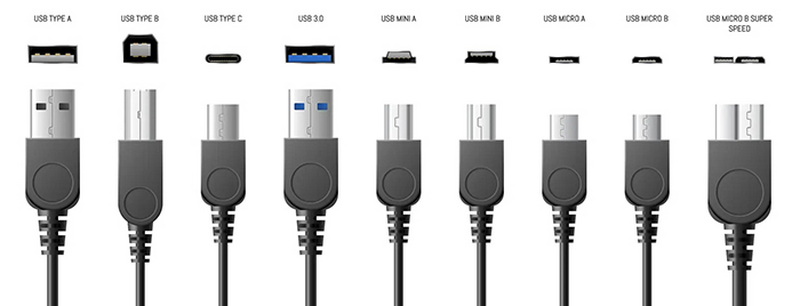

- USB Type-A: The most common rectangular connector found on computers and chargers.
- USB Type-B: Usually square-shaped, used for printers and some external drives.
- USB Type-C: A newer, reversible connector that supports faster data transfer and higher power delivery.
- Micro and Mini USB: Smaller connectors for mobile devices and older gadgets.
Each connector type has a specific pin configuration to facilitate power and data transmission.
Types of USB Cables and Their Uses
USB Versions and Speeds
USB technology has evolved over time, with several versions offering different data transfer speeds and power capabilities:
| USB Version | Data Transfer Speed | Power Delivery | Video Support |
| USB 1.1 | 12 Mbps | No | No |
| USB 2.0 | 480 Mbps | Yes | No |
| USB 3.0 | 5 Gbps | Yes | Yes |
| USB 3.1 | 10 Gbps | Yes | Yes |
| USB 4 | Up to 40 Gbps | Yes | Yes |
Common USB Cable Types

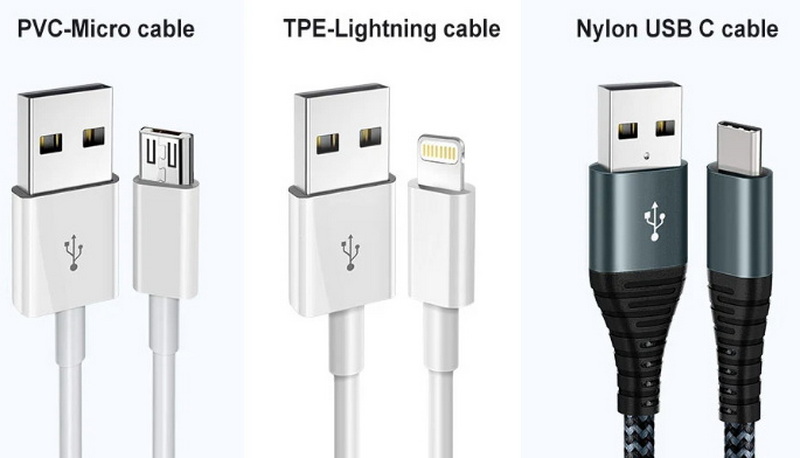

- USB Type-A to USB Type-B: Often used to connect printers to computers.
- USB Type-A to Micro USB: Common for charging older smartphones and tablets.
- USB Type-A to USB Type-C: Used for newer devices supporting fast charging and high-speed data.
- USB Type-C to USB Type-C: Supports the latest devices with reversible connectors and high power delivery.
Applications of USB Cables
USB cables are versatile and used in many scenarios:
- Charging Devices: Smartphones, tablets, laptops, gaming consoles, and other gadgets.
- Data Transfer: Moving files between computers, external drives, cameras, and phones.
- Peripheral Connections: Keyboards, mice, printers, scanners, and external storage devices.
- Video Output: Some USB-C cables support video transmission to monitors and TVs.
- Powering Electronics: Low-voltage devices like Arduino boards, Raspberry Pi, and USB-powered gadgets.
Troubleshooting Common USB Cable Issues
Despite their simplicity, USB cables can face issues such as:
- Slow Data Transfer: Caused by old cables, slow devices, or cluttered storage.
- Loose Connections: Due to wear and tear or dirt in ports.
- Compatibility Problems: Using the wrong cable type or version for a device.
- Damaged Cables: Physical damage can disrupt power or data flow.
Solutions include using high-quality cables, cleaning ports, and replacing damaged cables promptly.
Conclusion
USB cables are fundamental components in modern electronics, enabling both data transfer and power delivery between devices. Their design includes multiple wires for balanced data communication and power supply, protected by shielding to ensure signal integrity. Over the years, USB technology has evolved to support faster data rates, higher power levels, and versatile connectors like USB-C that simplify usage and enhance performance.
From charging your smartphone to connecting peripherals and transferring large files, USB cables are indispensable in daily digital interactions. Understanding their structure, types, and functions helps you choose the right cable for your needs and troubleshoot common issues effectively.
Frequently Asked Questions (FAQs)
1. What is the main function of a USB cable?
A USB cable primarily transfers data and supplies power between electronic devices, enabling communication and charging.
2. Can all USB cables charge devices?
Most USB cables can charge devices, but the charging speed depends on the cable type and the device's power support. USB-C cables generally support faster charging.
3. Are USB-C cables reversible?
Yes, USB-C connectors are reversible, meaning they can be plugged in either way, making them more user-friendly than older USB types.
4. Can USB cables transfer video signals?
Some USB cables, particularly USB-C with DisplayPort Alternate Mode support, can transmit video to monitors and TVs.
5. What causes slow data transfer in USB cables?
Slow data transfer can result from using older USB versions, damaged cables, or slow device hardware.
