USB-C cables have become the universal standard for charging and data transfer in modern electronic devices. Understanding what a USB-C cable looks like, how it functions, and its various capabilities is essential for anyone using contemporary gadgets. This comprehensive article explores the appearance, design, features, and functions of USB-C cables, enriched with detailed explanations, visuals, and videos to provide a thorough understanding.

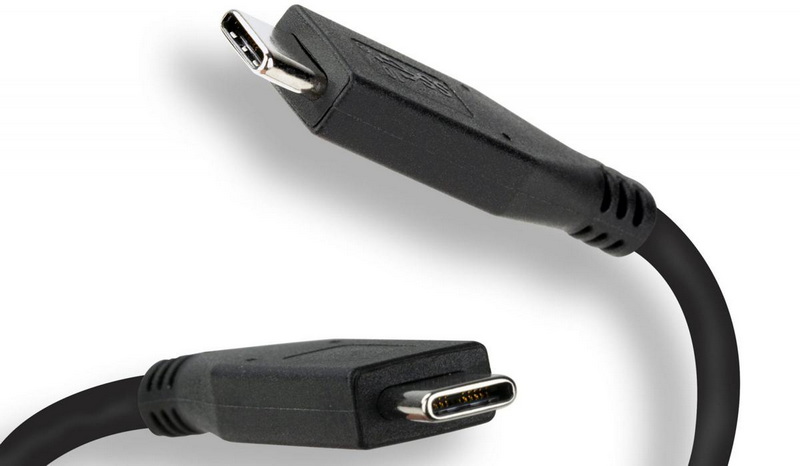

What Does the USB-C Cable Look Like?
At first glance, a USB-C cable might seem similar to older USB connectors, but it has distinct characteristics that set it apart.
- Shape and Size: The USB-C connector is small, compact, and oval-shaped with rounded edges. It is noticeably smaller than the traditional USB-A connector, approximately 60% smaller, making it ideal for slim devices like smartphones and ultrabooks.
- Reversible Design: One of the most notable features is its symmetrical, reversible design. This means the cable can be plugged in either way-no need to worry about orientation. Unlike USB-A or micro USB connectors, which only fit one way, USB-C's design eliminates the frustration of trying to insert the cable incorrectly.
- Connector Pins: Internally, the USB-C connector contains 24 pins arranged symmetrically to support high-speed data transfer, power delivery, and alternate modes such as video output.
Visual Description
Imagine a small oval port about 8.34 mm wide and 2.56 mm tall, with a flat, smooth surface inside where the pins are located. The cable end mirrors this shape perfectly, allowing it to fit snugly into the port regardless of which side is facing up.
Detailed Features of USB-C Cables
Reversibility and Durability
The reversible design is not just about convenience; it also reduces wear and tear on ports and cables. USB-C connectors have been tested for up to 10,000 insertion cycles, which is significantly more durable than previous USB types.
Data Transfer and Power Delivery
USB-C cables support a wide range of data transfer speeds and power delivery capabilities:
- Data Speeds: Depending on the USB version supported, speeds can range from USB 2.0's 480 Mbps up to USB4's 40 Gbps.
- Power Delivery: USB-C cables can carry up to 100 watts of power, enabling fast charging for laptops, tablets, and smartphones.
USB-C Cable Anatomy and Pin Layout
A USB-C cable consists of 24 pins arranged in a symmetrical pattern, which allows for its reversible nature. The pins include:
- Power Pins (VBUS and GND): Deliver electrical power.
- Data Pins (D+ and D-): For USB 2.0 data.
- SuperSpeed Data Lanes: For USB 3.x and USB4 high-speed data.
- Configuration Channel (CC) Pins: Detect cable orientation and negotiate power delivery.
- Sideband Use Pins: Support alternate modes like DisplayPort or Thunderbolt.
This complex pin arrangement enables USB-C cables to be versatile, supporting multiple functions simultaneously.
How to Identify a USB-C Cable
Physical Appearance
- Small, oval-shaped connector.
- Symmetrical design, reversible plug.
- Typically marked with logos indicating features like Thunderbolt or DisplayPort support.
Cable Markings and Specifications
Manufacturers often print specifications on the cable or packaging, such as:
- USB version (e.g., USB 3.2, USB4).
- Power rating (e.g., 100W).
- Video support (e.g., DisplayPort Alt Mode).
USB-C vs. Other USB Types
| Feature | USB-A | USB-B | USB-C |
| Shape | Rectangular | Mostly square | Smaller oval with rounded edges |
| Reversible | No | No | Yes |
| Data Transfer Speeds | Up to 10 Gbps (USB 3.1) | Up to 10 Gbps | Up to 40 Gbps (USB4) |
| Power Delivery | Limited | Limited | Up to 100W+ |
| Common Usage | Older devices, peripherals | Printers, scanners | Modern smartphones, laptops, hubs |
USB-C Cable Uses and Compatibility
USB-C cables are used in a wide range of devices:
- Smartphones and tablets
- Laptops and ultrabooks
- Gaming consoles like Nintendo Switch
- External drives and docking stations
- Monitors and TVs (with video support)
Compatibility depends on the cable's specifications and the device's port capabilities. Not all USB-C cables support every function; some are designed primarily for charging, while others support high-speed data and video.
How USB-C Supports Video Output
USB-C cables can transmit video if both the cable and device support Alternate Mode protocols:
- DisplayPort Alt Mode: Common for connecting to monitors, supports up to 8K resolution.
- HDMI Alt Mode: For direct HDMI connections.
- Thunderbolt 3/4: Supports very high-speed data and video, including dual 4K displays.
- MHL Alt Mode: Used in some mobile devices for video output.
Choosing the Right USB-C Cable
When selecting a USB-C cable, consider:
- Data transfer speed needed (USB 2.0, 3.1, 3.2, USB4)
- Power delivery requirements (e.g., 60W, 100W)
- Video support (DisplayPort, HDMI, Thunderbolt)
- Cable length and build quality
- Certification (USB-IF certified cables ensure safety and performance)
Conclusion
The USB-C cable is a versatile, compact, and powerful connector standard that has revolutionized how we connect and power our devices. Its reversible design, high durability, and support for fast data transfer, power delivery, and video output make it the preferred choice for modern electronics. Understanding what a USB-C cable looks like and how it functions helps users select the right cable for their needs, ensuring optimal performance and compatibility.
Frequently Asked Questions (FAQ)
1. What does a USB-C cable look like?
A USB-C cable has a small, oval-shaped connector with rounded edges. It is symmetrical and reversible, meaning it can be plugged in either way without worrying about orientation.
2. Can all USB-C cables support video output?
No, only USB-C cables and ports that support Alternate Mode (such as DisplayPort or Thunderbolt) can transmit video signals.
3. How can I tell if a USB-C cable supports fast charging?
Check the cable specifications for Power Delivery (PD) support and wattage rating. Certified cables often indicate support for fast charging up to 100W.
4. Is USB-C backward compatible with older USB types?
Physically, USB-C is not backward compatible with USB-A or USB-B ports, but adapters and cables with mixed connectors (USB-C to USB-A) allow compatibility.
5. How durable are USB-C cables compared to previous USB types?
USB-C connectors are tested for up to 10,000 insertion cycles, which is about six times more durable than USB-A connectors.
