Views: 222 Author: Tina Publish Time: 2025-04-30 Origin: Site
Content Menu
● Understanding the Lightning to USB Cable
>> What is the Lightning Connector?
● What Does a Lightning to USB Cable Do?
>> Charging
>> Video Output
● Types of Lightning to USB Cables
● Lightning vs USB-C: Key Differences
● How Does the Lightning to USB Cable Work?
● Limitations of Lightning to USB Cables
● Recent Changes and Future Outlook
● Frequently Asked Questions (FAQs)
>> 1. What devices use Lightning to USB cables?
>> 2. Can a Lightning to USB cable transfer video?
>> 3. What is the difference between Lightning to USB-A and Lightning to USB-C cables?
>> 4. Are all Lightning cables the same quality?
>> 5. Will Lightning cables become obsolete?
A Lightning to USB cable is a type of cable designed primarily by Apple to connect its mobile devices-such as iPhones, iPads, and iPods-to USB ports on computers, chargers, or other peripherals. The cable features a proprietary Lightning connector on one end, which plugs into the Apple device, and a USB connector on the other end, which plugs into a USB port for charging, syncing, or data transfer.
This cable plays a crucial role in the Apple ecosystem, enabling users to charge their devices, transfer data, connect to accessories, and sometimes even output video or audio signals. The Lightning connector was introduced in 2012 to replace the older 30-pin dock connector and is known for its compact size, reversibility, and smart chip technology that dynamically manages functions on the pins.

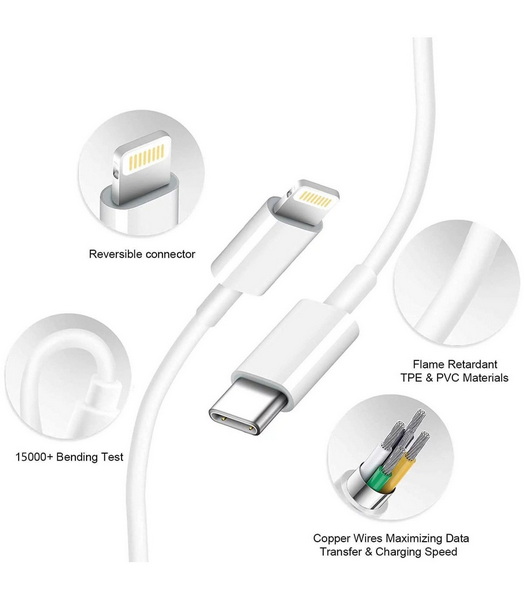

The Lightning connector is an 8-pin proprietary interface developed by Apple. It is reversible, meaning it can be inserted into the device's port in either orientation, which enhances user convenience. The connector is small and slim, measuring approximately 6.7 mm wide and 1.5 mm thick, making it much more compact than its predecessor, the 30-pin connector.
Inside the Lightning connector, there is a small chip that communicates with the Apple device to manage data transfer, charging, and accessory compatibility. This chip also authenticates third-party accessories to ensure they meet Apple's standards. This authentication process helps maintain device security and ensures that accessories function properly without causing damage or performance issues.
The USB end of the cable can come in different types:
- USB-A: The traditional rectangular USB port found on many computers and chargers.
- USB-C: A newer, reversible USB connector that supports faster charging and data transfer.
The combination of Lightning and USB connectors allows Apple devices to connect to a wide variety of power sources and computers. USB-C, in particular, has become increasingly popular due to its versatility, faster data transfer rates, and ability to deliver higher power levels for charging.
The primary function of a Lightning to USB cable is to charge Apple devices. When connected to a USB power adapter or a computer USB port, it delivers power to the device's battery.
- Lightning to USB-A cables support standard charging speeds, typically up to 5 watts or 12 watts depending on the power adapter.
- Lightning to USB-C cables support faster charging, especially when paired with USB-C power adapters, allowing for fast charging up to 18-24 watts on compatible iPhone models.
Fast charging can significantly reduce the time it takes to charge your device, making it more convenient for users who are often on the go.
Besides charging, the cable enables data transfer between Apple devices and computers. This includes syncing music, photos, videos, contacts, and backups. The data transfer speed is generally USB 2.0 standard, with a maximum speed of 480 Mbps, except for some iPad Pro models that support USB 3.0 speeds with specific adapters.
This data transfer capability is essential for users who want to back up their devices, transfer media files, or sync apps and documents between their Apple device and a computer using software like iTunes or Finder on macOS.
The Lightning to USB cable also allows Apple devices to connect to various accessories, such as:
- External cameras (via Lightning to USB Camera Adapter), enabling users to import photos and videos directly.
- Audio devices like headphones and speakers, especially when used with adapters or docks.
- CarPlay systems for in-car entertainment and navigation.
- Keyboards, mice, and other peripherals, especially on iPads, enhancing productivity and usability.
These accessory connections expand the functionality of Apple devices, turning them into versatile tools for work, entertainment, and creativity.
Direct video output through a Lightning to USB cable is limited. The Lightning port itself does not support native video output due to bandwidth constraints. However, Apple offers a Lightning Digital AV Adapter that compresses video data and outputs it to HDMI-compatible displays.
This adapter allows users to mirror their device's screen or stream video content to larger displays such as TVs, monitors, or projectors. It is especially useful for presentations, watching movies, or gaming on a bigger screen.
The traditional cable with a USB-A connector is compatible with most existing chargers and computers. It supports charging and data transfer but is limited in speed compared to USB-C.
These cables are widely available and often come bundled with Apple devices purchased before the widespread adoption of USB-C. They remain popular due to the prevalence of USB-A ports on older computers and chargers.
This newer cable features a USB-C connector on one end, which supports faster charging and data transfer speeds. It is commonly used with modern MacBooks, USB-C power adapters, and newer Apple devices.
The Lightning to USB-C cable is essential for users who want to take advantage of fast charging and improved data transfer rates. It also aligns with industry trends toward USB-C as a universal standard for charging and connectivity.
- Coiled Lightning cables for portability and tangle-free use.
- Lightning to 3.5mm audio cables for connecting to analog audio devices, especially after Apple removed the headphone jack from many devices.
- Ethernet to Lightning adapters for wired internet connections on iPhones or iPads, useful in environments where Wi-Fi is unreliable.
These specialized cables and adapters enhance the versatility of the Lightning connector, allowing users to connect to a broader range of devices and accessories.
| Feature | Lightning Cable | USB-C Cable |
|---|---|---|
| Compatibility | Exclusive to Apple devices | Universal across many brands and devices |
| Charging Speed | Up to 18-24W fast charging | Up to 100W Power Delivery |
| Data Transfer Speed | USB 2.0 (480 Mbps), some iPads USB 3.0 | USB 3.1/USB 4.0 up to 40 Gbps |
| Connector Size | Smaller, slim, reversible | Slightly larger, reversible |
| Versatility | Charging, syncing, accessory connection | Charging, data, video output, and more |
| Market Adoption | Limited to Apple ecosystem | Widely adopted universal standard |
The transition from Lightning to USB-C represents a significant shift in Apple's approach to device connectivity, aiming for greater compatibility, faster performance, and alignment with global standards.
When plugged into an Apple device, the Lightning connector establishes communication with the device's internal USB controller. The cable's chip exchanges signals to authenticate the connection and configure the pins for power delivery and data transfer.
The USB end connects to a power source or computer, enabling power flow and data communication. The Lightning cable supports USB 2.0 speeds by default, although some iPads with special adapters can achieve USB 3.0 speeds.
The reversible design of the Lightning connector means it can be inserted either way without damaging the port or cable, a feature that enhances user experience by eliminating the frustration of incorrect orientation.
Internally, the Lightning cable contains eight pins, each capable of carrying power, data, or control signals. The cable and device dynamically assign functions to these pins depending on the connected accessory or power source.
Despite its advantages, the Lightning to USB cable has some limitations:
- Data Transfer Speed: Limited to USB 2.0 speeds on most devices, which is slower than USB-C. This can be a bottleneck when transferring large files like high-resolution videos.
- Video Output: Cannot natively output video without an adapter due to bandwidth constraints. Users must purchase additional accessories for screen mirroring or external display connections.
- Compatibility: Only works with Apple devices; not universal. This limits its usefulness outside the Apple ecosystem.
- Charging Power: Lower maximum power delivery compared to USB-C cables. This affects charging times, especially for larger devices like iPads.
- Third-Party Accessories: Require Apple certification (MFi program) for compatibility. Non-certified cables may cause errors, damage devices, or fail to work properly.
These limitations have prompted Apple and users to gradually adopt USB-C, which offers broader compatibility and higher performance.
Apple has started transitioning some devices, like the iPad Pro and the iPhone 15 series, to USB-C connectors to comply with new regulations and to offer faster charging and data transfer. However, Lightning cables and accessories remain widely used and supported for many existing Apple devices.
This transition is significant because USB-C is becoming the global standard for charging and data transfer across many device categories, including smartphones, tablets, laptops, and accessories. It offers advantages such as faster charging speeds, higher data transfer rates, and the ability to carry video signals natively.
Adapters are available that allow users to connect Lightning cables to USB-C ports and vice versa, helping bridge the gap during this transition period. These adapters ensure users can continue to use their existing accessories while upgrading to newer devices.
Apple's move towards USB-C also aligns with environmental goals by reducing electronic waste and simplifying accessory ecosystems.
The Lightning to USB cable is a proprietary Apple cable that connects Apple devices to USB ports for charging, syncing, and accessory connectivity. It features a reversible Lightning connector on one end and a USB connector (USB-A or USB-C) on the other. While Lightning cables offer convenience and compatibility within the Apple ecosystem, they are limited by slower data transfer speeds and lower power delivery compared to USB-C cables.
With Apple's gradual move towards USB-C, the Lightning cable remains an essential accessory for many users but is expected to phase out over time. Understanding the function, types, and limitations of Lightning to USB cables helps users make informed decisions about charging and connectivity options for their Apple devices.
As technology evolves, users can expect faster, more versatile cables that support a wider range of devices and use cases, making connectivity simpler and more efficient.
Lightning to USB cables are used primarily with Apple devices such as iPhones, iPads, iPods, AirPods, and some accessories like the Siri Remote and Magic Keyboard.
Not directly. Lightning cables have limited bandwidth and cannot natively output video. To connect to external displays, you need a Lightning Digital AV Adapter or similar accessory that compresses and converts the video signal.
Lightning to USB-A cables connect to traditional USB ports and support standard charging and data transfer speeds. Lightning to USB-C cables connect to newer USB-C ports and enable faster charging and better data transfer performance.
No. Apple-certified (MFi) cables ensure compatibility and safety. Non-certified third-party cables may not support all features, could be less durable, or even damage devices.
With Apple's recent adoption of USB-C on newer devices, Lightning cables will gradually be phased out. However, they will remain in use for older devices and accessories for some years.
