USB Type-C, commonly known as USB-C, is a modern and versatile connector standard that has revolutionized how devices connect for charging, data transfer, and video output. This article explores in detail what a USB Type-C cable looks like, its features, benefits, and how to identify its capabilities. It also addresses common questions and provides a comprehensive understanding of this ubiquitous technology.

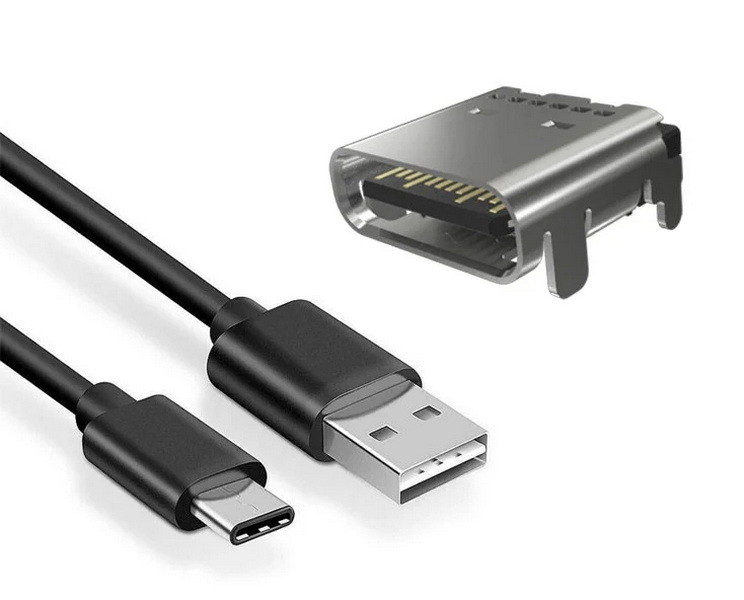

What Does a USB Type-C Cable Look Like?
A USB Type-C cable is characterized by its distinctive small, oval-shaped connector that is symmetrical and reversible. Unlike older USB connectors such as USB-A or Micro USB, which have a specific orientation for plugging in, USB-C cables can be inserted either way without concern for "right side up" due to their symmetrical design. This reversible feature significantly enhances user convenience and reduces wear on ports[1][8][11].
Visual Characteristics
- Shape: The USB-C connector is a flattened oval with rounded edges, smaller than the traditional rectangular USB-A connector.
- Size: It is compact, designed for modern, slim devices like ultrabooks, smartphones, and tablets.
- Reversibility: The connector looks the same on both sides, so it can be plugged in without flipping.
- Pins: Internally, USB-C connectors have 24 pins arranged to support multiple functions, including power delivery, data transfer, and video output[11].
Comparison with Other USB Types
| Feature | USB-A | USB-C |
| Shape | Rectangular | Smaller oval with rounded corners |
| Reversible | No | Yes |
| Size | Larger | Smaller, compact |
| Orientation | One-way plug | Can be plugged either way |
| Compatibility | Older devices | Newer devices, universal |
This design allows USB-C cables to be more user-friendly and adaptable across a wide range of devices[3][8].
Key Features and Advantages of USB-C Cables
1. Reversible Connector
The reversible design means users never have to struggle with plugging the cable incorrectly, which was a common frustration with USB-A and Micro USB connectors[1][8][10].
2. Universal Compatibility
USB-C supports multiple protocols and can be used for charging, data transfer, and video output. It is compatible with USB 2.0, USB 3.0, USB 3.1, USB 3.2, USB4, Thunderbolt 3 and 4, DisplayPort, HDMI, and more, depending on the device and cable specifications[9][11][12].
3. High Data Transfer Speeds
Depending on the cable and device, USB-C supports a wide range of data transfer speeds:
- USB 2.0: up to 480 Mbps
- USB 3.2 Gen 1 (USB 3.0): up to 5 Gbps
- USB 3.2 Gen 2: up to 10 Gbps
- USB 3.2 Gen 2x2: up to 20 Gbps
- Thunderbolt 3 & 4: up to 40 Gbps
- USB4: up to 40 Gbps[1][4][9][11]
4. Power Delivery (PD)
USB-C cables support USB Power Delivery, a fast-charging protocol that can deliver from 10W up to 240W of power. This allows rapid charging of smartphones, tablets, laptops, and even some monitors or docking stations[4][5][9][12].
5. Video Output Support
USB-C cables can carry video signals via Alternate Modes (Alt Modes), enabling connections to DisplayPort, HDMI, MHL, and Thunderbolt devices. This means a single USB-C cable can transmit video to external monitors or TVs, sometimes supporting resolutions up to 8K, depending on the cable and device capabilities[1][2][9][11].
How to Identify a USB-C Cable and Its Capabilities
Physical Identification
- Connector Shape: Oval and symmetrical, smaller than USB-A.
- Markings: Some cables have logos or symbols indicating support for DisplayPort, Thunderbolt (lightning bolt symbol), or HDMI.
- Cable Thickness: Higher-spec cables (supporting fast charging and high data rates) are often thicker due to additional wiring.
Manufacturer Specifications
Always check the product specifications or packaging for details such as:
- USB version (e.g., USB 2.0, USB 3.1 Gen 2, USB4)
- Power Delivery support (e.g., up to 100W, 240W)
- Video support (DisplayPort Alt Mode, HDMI Alt Mode)
- Thunderbolt compatibility
Testing and Reviews
User reviews and product tests can provide insight into real-world performance, especially for charging speed and data transfer reliability[2][4][12].
Common Uses of USB-C Cables
- Charging smartphones, tablets, and laptops
- Data transfer between computers and peripherals
- Connecting to external displays via video output
- Powering and connecting accessories like docking stations, external hard drives, and monitors
- Gaming consoles like Nintendo Switch
Conclusion
USB Type-C cables represent a significant advancement in connectivity technology, combining a compact, reversible design with high-speed data transfer, powerful charging capabilities, and versatile video output support. Their universal adoption across modern devices makes them essential for users seeking convenience and performance. Understanding what a USB-C cable looks like and how to identify its features ensures you select the right cable for your needs, maximizing device compatibility and functionality.
Frequently Asked Questions (FAQs)
1. What does a USB Type-C cable look like?
A USB Type-C cable has a small, oval-shaped, symmetrical connector that can be plugged in either way. It is smaller than USB-A and has 24 pins inside to support multiple functions[1][8][11].
2. Do all USB-C cables support video output?
No, only USB-C cables and ports that support Alternate Mode (Alt Mode) can transmit video signals. Not all USB-C cables have this capability, so check the specifications for DisplayPort, HDMI, or Thunderbolt support[2][9].
3. Can I use any USB-C cable for fast charging?
While most USB-C cables support basic charging, fast charging requires cables that support USB Power Delivery (PD) and appropriate wattage. Always use cables certified for your device's charging needs to ensure safety and performance[4][5][7][12].
4. How do I know if my USB-C cable supports Thunderbolt?
Thunderbolt-compatible USB-C cables usually have a lightning bolt symbol on the connector and support data transfer speeds up to 40 Gbps. Check the manufacturer's specifications to confirm Thunderbolt support[1][2][9].
5. Are USB-C cables backward compatible with older USB ports?
USB-C cables are physically different from older USB-A or USB-B connectors, so they require adapters to connect to those ports. However, USB-C supports older USB protocols for data transfer and charging when used with compatible devices and adapters[3][9].
