USB On-The-Go (OTG) cables have become essential accessories for mobile devices, enabling smartphones and tablets to connect directly to USB peripherals like flash drives, keyboards, and mice without needing a computer. This article explores what a USB OTG cable looks like, its design features, how it works, and practical uses, enriched with visual explanations and videos to enhance understanding.
What Is a USB OTG Cable?
USB OTG is a specification introduced in 2001 that allows devices such as smartphones and tablets to act as both USB hosts and peripherals. This dual-role capability means a mobile device can read data from a USB flash drive or act as a storage device when connected to a computer[1][3].
A USB OTG cable is the physical medium that facilitates this connection. It typically has different connectors on each end to designate which device acts as the host (A-device) and which acts as the peripheral (B-device). The cable includes an additional ID pin that signals the device to switch into host mode[1][3].
Physical Appearance of a USB OTG Cable
Connector Types and Structure
- Micro-USB OTG Cable: One end has a Micro-USB Type-A plug, and the other end has a Micro-USB Type-B plug. The Micro-A plug has the ID pin grounded, which signals the device to act as the host, while the Micro-B plug has a floating ID pin for the peripheral role[1].

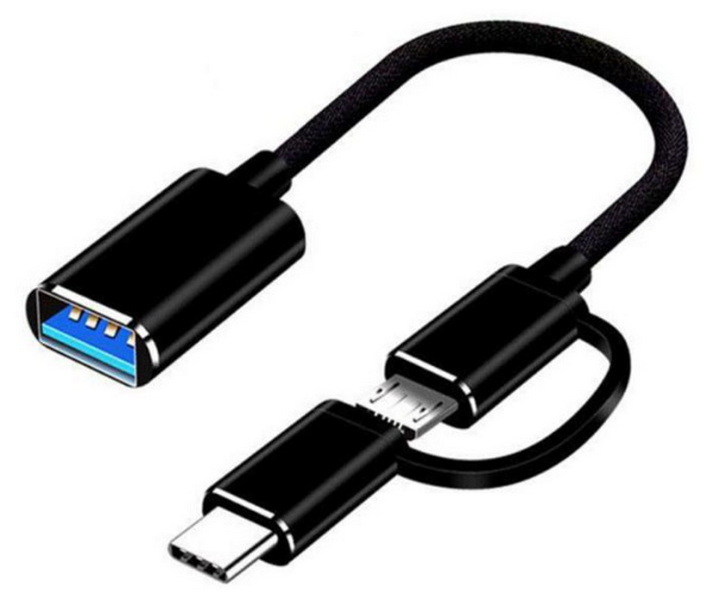

- Standard USB OTG Cable: Often features a Micro-USB or USB-C male connector on one end (to connect to the smartphone or tablet) and a standard USB Type-A female port on the other end (to connect USB peripherals like flash drives or keyboards)[10][13].

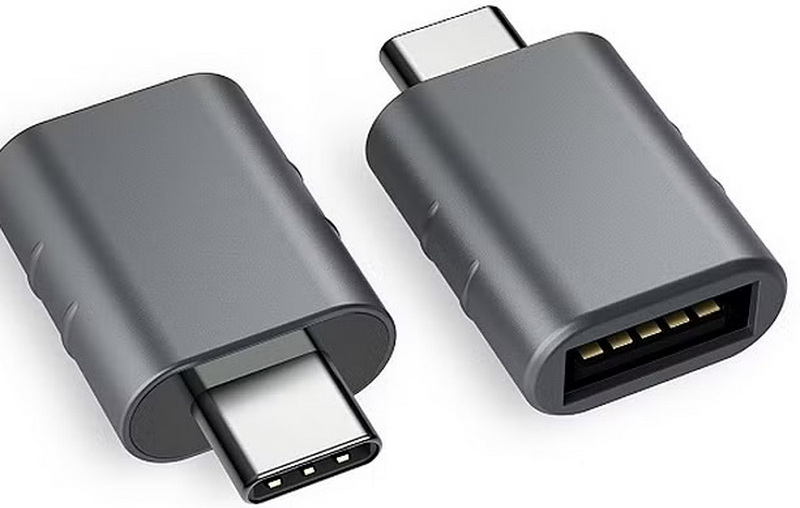

- USB-C OTG Cable: With the rise of USB-C ports on modern devices, OTG cables now also come with USB-C connectors on the device side and a USB-A female port on the other end[2][9].
Typical Cable Design
- The cable is usually short, around 4 to 6 inches (10 to 15 cm), to minimize signal loss and maintain power efficiency[13].
- It has a thicker section near the USB-A female connector to house the ID pin wiring and circuitry that enables OTG functionality[12].
- The cable jacket is typically made of flexible PVC or rubberized material for durability.
How Does a USB OTG Cable Work?
The key to a USB OTG cable's function lies in the ID pin inside the Micro-USB or USB-C connector. When the ID pin is grounded (connected to the ground wire), the device recognizes it should switch to host mode and supply power to the connected peripheral[1][3][13].
This allows a smartphone or tablet to:
- Read data from USB flash drives or external hard drives (if power requirements are met).
- Connect input devices like keyboards, mice, and game controllers.
- Interface directly with cameras, printers, or other USB-enabled devices[8][10].
Practical Uses of USB OTG Cables
1. Connecting USB Flash Drives
You can plug a USB flash drive into your phone or tablet via the OTG cable to transfer files directly without a PC[5][8].
2. Using External Keyboards and Mice
Typing on a smartphone or tablet becomes easier by connecting a physical keyboard or mouse through the OTG cable[5][8].
3. Gaming Controllers
Connect game controllers such as PS4 or Xbox controllers to your mobile device for enhanced gaming experiences[5][10].
4. Direct Printing
Print documents by connecting your device directly to a printer using an OTG cable and compatible printing apps[5].
5. Data Transfer Between Devices
Transfer photos and files between smartphones or tablets by connecting them with OTG cables and appropriate adapters[5][8].
Conclusion
A USB OTG cable is a small but powerful accessory that transforms your smartphone or tablet into a versatile host device capable of connecting to various USB peripherals. Physically, it is characterized by having a Micro-USB or USB-C male connector on one end and a USB-A female port on the other, with special internal wiring involving the ID pin to enable host mode. Its compact design and robust functionality have made it indispensable for data transfer, peripheral connectivity, and expanding the capabilities of mobile devices.
Frequently Asked Questions (FAQs)
1. What does a USB OTG cable look like?

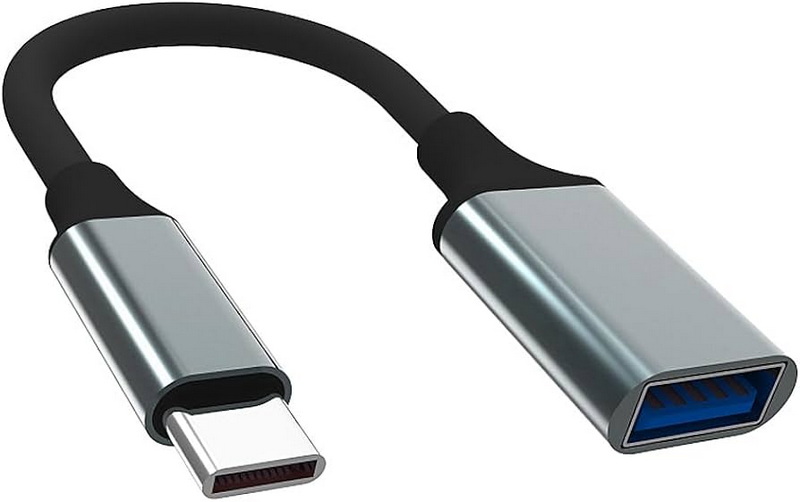

A USB OTG cable typically has a Micro-USB or USB-C male connector on one end (for the smartphone or tablet) and a USB Type-A female port on the other end (for USB peripherals). The cable is usually short, around 4-6 inches, with an extra ID pin inside the smaller connector to enable host mode[1][2][13].
2. How can I identify if my USB cable is OTG?
Look for the OTG label on the cable or connectors. Physically, OTG cables have a grounded ID pin inside the Micro-USB or USB-C connector, which standard cables do not. OTG cables are also shorter and have a USB-A female port on one end[13].
3. Can I use a regular USB cable as an OTG cable?
No. Regular USB cables lack the specific internal wiring, especially the grounded ID pin, required for OTG functionality. Using a non-OTG cable will not allow your device to act as a host[13].
4. What devices can I connect using a USB OTG cable?
You can connect USB flash drives, external hard drives (if power allows), keyboards, mice, game controllers, printers, and cameras to your smartphone or tablet via an OTG cable[5][8][10].
5. Are there any risks in using USB OTG cables?
While generally safe, connecting unknown USB devices can expose your device to malware. Also, since the host device supplies power to peripherals, it may drain your battery faster[13].
