What does a USB data cable look like? This comprehensive article explores the appearance, types, internal structure, and practical uses of USB data cables, enriched with detailed explanations, images, and videos to help you understand this ubiquitous technology. By the end, you'll also find answers to common questions about USB cables.

Understanding What a USB Data Cable Looks Like

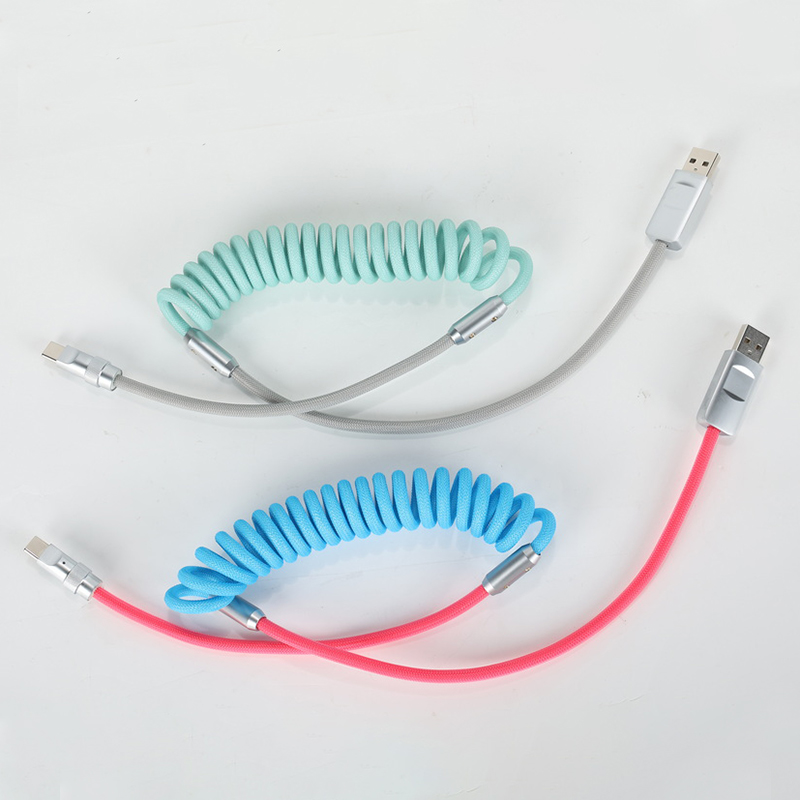

A USB data cable is a physical cable used to connect devices for data transfer and power delivery. Typically, it consists of a plastic or rubber-coated wire with connectors at each end. The appearance of a USB cable varies depending on the USB type and version, but some common features are shared.

Common Physical Characteristics

- Cable Body: Usually round, flexible, and insulated with plastic or rubber. The thickness depends on the number of wires inside and whether it supports data transfer or charging only.

- Connectors: The ends are metal plugs encased in plastic shells. The shape and size of these connectors define the USB type (e.g., USB Type-A, USB Type-B, USB Micro, USB-C).

- Color Coding: Some USB cables have colored plastic inside the connectors to indicate the USB version. For example, USB 3.x cables often have blue plastic inside the connector, while USB 2.0 cables typically have white or black[1][3][9].

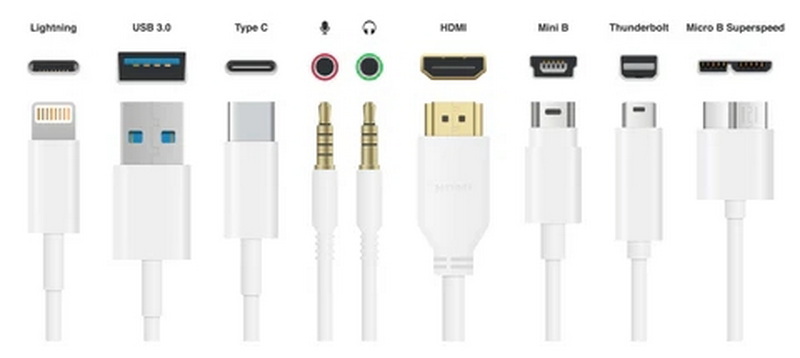

Visual Examples of USB Data Cables

- USB Type-A: The most recognizable, a flat rectangular connector found on one end of most cables. It connects to computers, chargers, and hubs.

- USB Type-B: A square-shaped connector often used for printers and some external hard drives.

- Micro-USB: Smaller than Type-A and Type-B, commonly used on older smartphones and peripherals.

- USB-C: The newest, symmetrical oval-shaped connector that can be plugged in either way, supporting faster data and power transfer[1][3][11].

Types of USB Data Cables and Their Appearance

USB Type-A

- Shape: Flat and rectangular.

- Usage: Standard on computers, chargers, and hubs.

- Appearance: Usually one end of the cable; the connector shell is plastic with metal contacts inside.

- Color: USB 3.x Type-A connectors often have blue plastic inside to signify higher speed.

USB Type-B

- Shape: Square with beveled corners.

- Usage: Printers, scanners, and some external hard drives.

- Appearance: Bulkier than Type-A, less common for everyday consumer devices.

Micro-USB

- Shape: Small, trapezoidal.

- Usage: Older smartphones, tablets, cameras.

- Appearance: Smaller than Type-A and Type-B, with a distinct “teeth” design for orientation.

- Color: Typically white or black plastic inside.

USB-C

- Shape: Small, oval, symmetrical.

- Usage: Newer smartphones, laptops, tablets.

- Appearance: Can be plugged in either way due to symmetrical design.

- Color: Usually black or white plastic inside; supports high-speed data and power.

Inside a USB Data Cable: What You Don't See

USB data cables contain multiple wires inside the outer sheath:

- Power wires: Usually red (+5V) and black (ground).

- Data wires: Typically white (D-) and green (D+).

- Some cables have additional wires for shielding and grounding to reduce interference[10].

Data cables have four wires, while charge-only cables have only two (power wires). This difference affects the cable's thickness and functionality[7].

Manufacturing Process of USB Data Cables

A fascinating video shows the mass production of USB data cables, highlighting these steps:

1. Copper wire stranding: Multiple fine copper wires are twisted together to form internal conductors.

2. Sheath extrusion: A plastic sheath is extruded around the wires for insulation.

3. Connector soldering: USB connectors (Type-A, Type-C, etc.) are soldered to the cable ends.

4. Injection molding: Plastic is injected around connectors to protect internal components.

5. Testing: Each cable undergoes continuity and appearance inspections to ensure quality[2].

How to Identify a USB Data Cable Visually and Functionally

Visual Clues

- Thickness: Data cables tend to be thicker than charge-only cables due to extra wires.

- Connector color: Blue plastic inside connectors often indicates USB 3.x data cables.

- Connector shape: Knowing the USB type helps identify the cable.

Functional Testing

- Connect the cable between a device and a computer.

- Attempt to transfer files.

- If data transfer is possible, it's a data cable; if only charging occurs, it's likely a charge-only cable[7].

Conclusion

A USB data cable is more than just a simple wire; it is a carefully engineered conduit for power and data transfer. Visually, USB cables vary by connector type-Type-A, Type-B, Micro-USB, and USB-C-with distinct shapes and sizes. Internally, data cables contain four wires enabling data transfer and power delivery, unlike charge-only cables that have two. Recognizing a USB data cable involves understanding these physical characteristics and testing its functionality. The evolution of USB cables, especially with the advent of USB-C, has made connectivity easier and faster, supporting a wide range of devices from smartphones to laptops.

Frequently Asked Questions (FAQ)

1. What does a USB data cable look like?

A USB data cable typically has a plastic-coated wire with metal connectors at each end. The connector shape depends on the USB type-Type-A is flat and rectangular, Type-B is square, Micro-USB is small and trapezoidal, and USB-C is small and oval-shaped with a reversible design[1][3][11].

2. How can I tell if my USB cable supports data transfer?

Data cables usually have four internal wires and are thicker than charge-only cables. You can test by connecting a device to a computer and trying to transfer files. If successful, it's a data cable[7].

3. What is the difference between USB Type-A and USB-C cables?

USB Type-A connectors are rectangular and only plug in one way, commonly found on computers and chargers. USB-C connectors are smaller, oval-shaped, and reversible, supporting faster data transfer and higher power delivery[3][11].

4. Can USB cables transfer video?

Yes, certain USB cables, especially USB-C, support video transmission along with data and power, enabling connections to displays and TVs[5][11].

5. How are USB data cables manufactured?

They are produced by stranding copper wires, extruding an insulating sheath, soldering connectors, injecting protective plastic around connectors, and undergoing testing for continuity and appearance[2].
