USB-C cables have revolutionized the way we connect, charge, and transfer data between devices. This comprehensive article explores what a USB-C cable does, its features, benefits, and how it has become the universal standard for modern connectivity. Throughout the article, you will find detailed explanations, illustrative images, and video insights to deepen your understanding.
A USB-C cable, also known as USB Type-C, is a versatile, 24-pin reversible connector designed to transmit power, data, and video signals between devices. Unlike previous USB connectors (Type-A and Type-B), USB-C cables can be plugged in either way, eliminating the frustration of orientation issues[1][2].
- Power Delivery: USB-C cables can deliver power to devices, supporting up to 130W or more, which means they can charge smartphones, tablets, laptops, and even some monitors efficiently[2][4].
- Data Transfer: They support high-speed data transfer rates, ranging from USB 2.0 speeds (480 Mbps) up to USB4 and Thunderbolt 4 speeds of 40 Gbps or more, depending on cable and device compatibility[1][9][12].
- Video Transmission: USB-C supports Alternate Modes, allowing video output to external displays using protocols like DisplayPort, HDMI, or Thunderbolt through compatible adapters[1][4][6].
- Universal Connectivity: USB-C cables replace multiple cables by combining power, video, and data transmission in one connector, simplifying device connectivity[1][17].
USB-C was developed by the USB Implementers Forum and introduced in 2014 to supersede older USB connectors. It features a compact, symmetrical design with 24 pins, allowing reversible plug orientation and enhanced functionality[1][13].

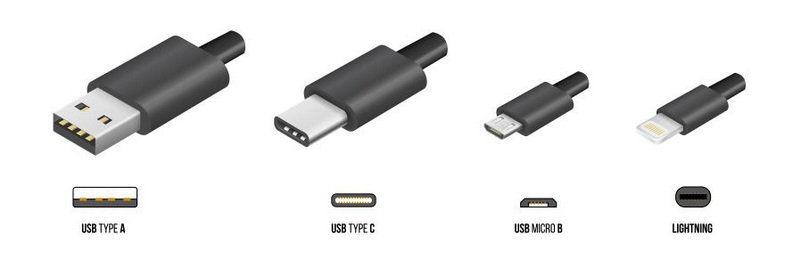

- The USB-C connector is smaller and flatter than USB-A and USB-B.
- It has a symmetrical oval shape, allowing insertion in any orientation.
- The 24 pins enable multiple simultaneous functions: power, data, and video.
One of the most appreciated features of USB-C cables is their reversible design. You can plug the cable into a device without worrying about the orientation, unlike older USB types[2][3][14].
USB-C cables support various USB standards, including USB 3.2 and USB4, enabling data transfer speeds up to 40 Gbps or even 80 Gbps with Thunderbolt 5 over USB-C connectors[1][9][20].
USB-C supports USB Power Delivery (PD), allowing devices to negotiate power requirements and charge up to 240W in the latest versions. This enables fast and safe charging of laptops, smartphones, and other devices[4][9][10].
USB-C cables can carry alternate protocols such as DisplayPort, HDMI, Thunderbolt, and Ethernet, enabling video output and network connectivity through a single port with the appropriate adapter[1][6][17].
The small size of USB-C connectors allows manufacturers to design thinner and lighter devices. USB-C cables are also built to withstand bending and frequent use better than older USB cables[3][14].

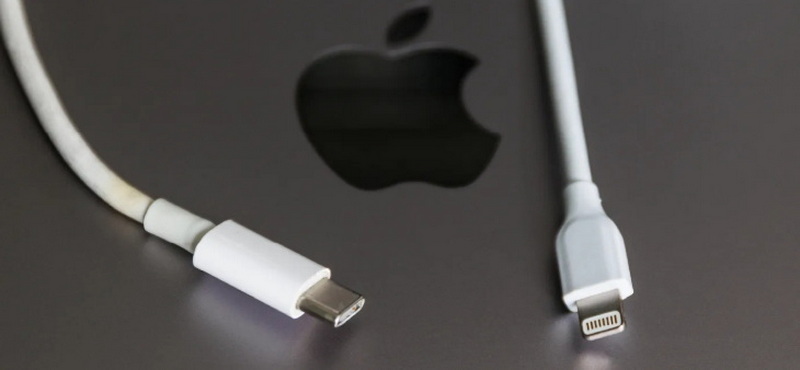

USB-C cables can charge devices by delivering power bidirectionally. For example, you can charge a phone from a laptop or vice versa using a USB-C to USB-C cable[8]. The Power Delivery protocol ensures that devices negotiate the correct voltage and current for efficient charging[4][9].
USB-C cables support multiple USB versions. For example:
| USB Version | Max Data Transfer Speed |
|---|---|
| USB 2.0 | 480 Mbps |
| USB 3.2 Gen 1 | 5 Gbps |
| USB 3.2 Gen 2 | 10 Gbps |
| Thunderbolt 3/4 | 40 Gbps |
| USB4 Gen 3 | 40 Gbps |
This makes USB-C suitable for transferring large files, streaming media, and connecting external storage devices[1][9][12].
Using Alternate Mode, USB-C cables can output video signals to monitors and TVs. With compatible adapters, a single USB-C port can connect to HDMI, VGA, DisplayPort, or DVI displays, supporting resolutions up to 4K and beyond[6][16][17].
- Charging smartphones, tablets, laptops, and peripherals.
- Transferring files between devices such as phones and computers.
- Connecting external displays for presentations or extended desktops.
- Powering and connecting hubs and docking stations.
- Supporting audio devices and gaming consoles.
Loose connections or debris inside USB-C ports can cause intermittent connectivity. Cleaning ports with compressed air and avoiding sharp objects can help maintain good connections[11].
Not all USB-C cables support the same features. Some may lack fast charging or high data transfer capabilities. It is essential to choose cables certified by USB-IF or reputable manufacturers[19].
USB-C cables have become the universal standard for connecting modern devices due to their versatility, efficiency, and user-friendly design. They combine power delivery, high-speed data transfer, and video output capabilities into a single reversible connector, simplifying the user experience and reducing cable clutter. As technology advances, USB-C continues to evolve, supporting faster speeds and higher power levels, making it the future-proof choice for device connectivity.
A USB-C cable is a type of connector and cable featuring a small, reversible 24-pin connector used for charging, data transfer, and video transmission between devices[1][9].
Not all USB-C cables support fast charging. To achieve fast charging, the cable and charger must support USB Power Delivery (USB PD) or other fast charge protocols[9][19].
Many modern devices use USB-C, including smartphones, tablets, laptops, gaming consoles, and peripherals like external drives and monitors[9][12].
Depending on the USB version and cable quality, USB-C cables can transfer data at speeds from 480 Mbps (USB 2.0) up to 40 Gbps (USB4 and Thunderbolt 3/4)[1][9].
Yes, USB-C cables support Alternate Modes that allow video output to HDMI, DisplayPort, VGA, and other display standards with compatible adapters[1][6].
