Understanding USB cables is essential in today's technology-driven world, where these cables connect a myriad of devices, from computers to smartphones and peripherals. This comprehensive article explores what a USB 2.0 cable looks like, its types, features, and how to identify it visually and functionally. We will also include images and videos to illustrate these points clearly.
What Is a USB 2.0 Cable?
USB 2.0, introduced in the year 2000, is a widely used connectivity standard that supports data transfer speeds up to 480 Mbps (High-Speed) and power delivery of 5V/1.5A. It is backward compatible with USB 1.1 and is commonly used for connecting devices such as keyboards, mice, external hard drives, and MP3 players to computers or hubs[3][11].
Visual Appearance of USB 2.0 Cables
USB 2.0 Connector Types
USB 2.0 cables come with several connector types, the most common being:
- USB Type-A: The standard rectangular connector found on host devices like PCs and laptops. It is usually flat and rectangular with a white or black plastic piece inside the connector[1][11].
- USB Type-B: A square-shaped connector typically used on peripheral devices like printers and scanners. USB 2.0 Type-B connectors have four pins inside and are slightly beveled at the top corners[11].
- Mini USB (Mini-B): Smaller than Type-B, used on older portable devices such as MP3 players and some cameras. It has a trapezoidal shape with five pins[2][10].
- Micro USB (Micro-B): Even smaller than Mini USB, common on smartphones and tablets before USB-C became prevalent. It has a slim, flat shape with five pins[10].
Cable Color and Design
- USB 2.0 cables typically have a black or white plastic piece inside the connector, distinguishing them from USB 3.x cables, which often have blue plastic[13].
- The cable sheath is usually black, but colors can vary, including blue or red for branding or identification purposes[4].
- The cable contains four wires inside: red (5V power), black (ground), white (Data-), and green (Data+)[13].
Physical Dimensions
- USB 2.0 cables range in length, with common sizes around 1 meter (3.3 feet). The cable thickness is generally slim, with shielding for signal integrity[2][3].
- Connector dimensions vary by type but are standardized for compatibility. For example, a USB Type-A plug is about 12 mm wide and 4.5 mm high[10].

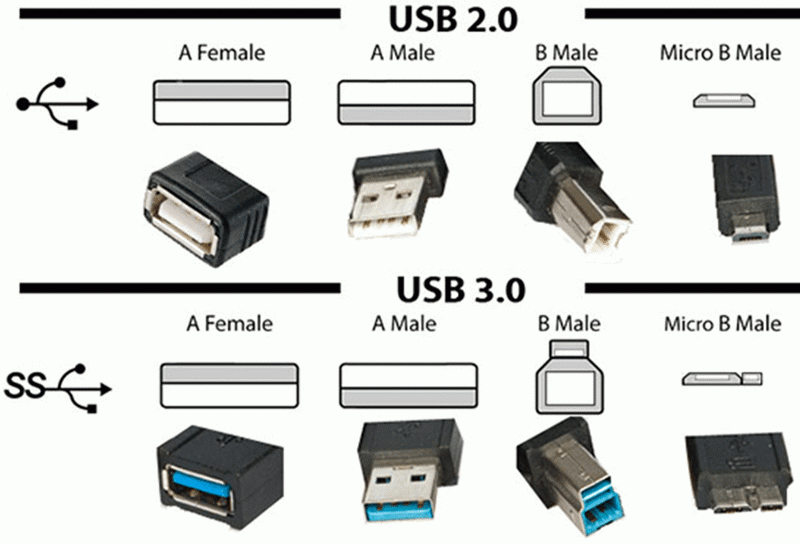

How to Identify a USB 2.0 Cable Visually
- Connector Color: USB 2.0 Type-A connectors usually have a white or black plastic insert inside the metal shell, unlike USB 3.0 which uses blue[13].
- Number of Pins: USB 2.0 cables have four pins inside the connector, while USB 3.0 cables have nine pins to support higher data rates[11].
- Cable Markings: Many USB cables have the USB trident logo printed on the connector or cable jacket. USB 2.0 cables may have no additional markings or simply "USB 2.0"[9].
- Connector Shape: The shape of the connector (Type-A, Type-B, Mini-B, Micro-B) helps identify the cable type and its USB version compatibility[1][2][10].
Technical Specifications of USB 2.0 Cables
| Feature | Description |
| Data Transfer Speed | Up to 480 Mbps (High-Speed) |
| Power Delivery | 5V at 1.5A (USB Battery Charging 1.2) |
| Number of Wires | 4 wires (Power + Data pair) |
| Connector Types | Type-A, Type-B, Mini-B, Micro-B |
| Cable Length | Typically up to 5 meters for reliable data |
| Shielding | Double shielding for EMI protection |
| Connector Color | Usually black or white plastic inside |
| Pin Count (Type-A/B) | 4 pins |

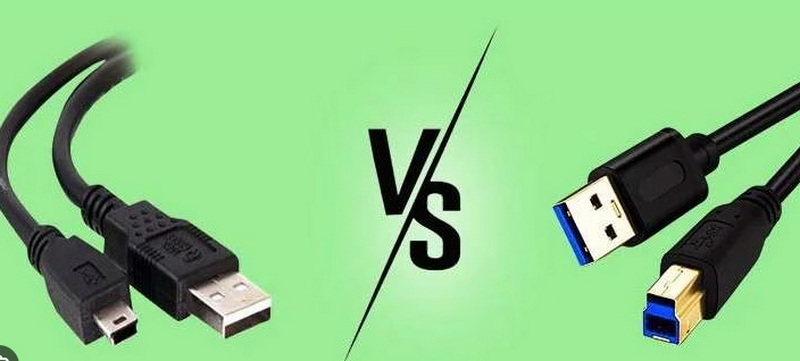

USB 2.0 Cable vs Other USB Versions
| Feature | USB 2.0 | USB 3.0 | USB-C (USB 3.x/4) |
| Max Data Speed | 480 Mbps | 5 Gbps | Up to 40 Gbps |
| Power Delivery | 5V, 1.5A | 5V, 0.9A | Up to 20V, 5A (100W) |
| Connector Pins | 4 | 9 | Up to 24 |
| Connector Shape | Rectangular (Type-A), Square (Type-B), Mini/Micro | Same as USB 2.0 plus extra pins | Reversible oval shape |
| Backward Compatibility | Yes | Yes | Yes |
| Typical Usage | Keyboards, mice, printers, external drives | High-speed external drives, video | Latest devices, fast charging |
How Does a USB 2.0 Cable Work?
USB 2.0 cables consist of four wires:
- Red (Vbus): Carries +5 volts power.
- Black (Ground): Acts as the reference ground.
- Green (D+): Carries positive data signal.
- White (D-): Carries negative data signal.
Data is transmitted over the differential pair (D+ and D-) while power is supplied through Vbus and Ground. The cable's shielding and twisted pair wiring help minimize electromagnetic interference and maintain signal integrity[13][10].
Common Uses of USB 2.0 Cables
- Connecting peripherals such as keyboards, mice, and printers to computers.
- Data transfer and charging for portable devices like MP3 players, cameras, and older smartphones.
- External hard drives and USB hubs.
- Audio interfaces and human interface devices (HIDs)[3].
Conclusion
A USB 2.0 cable is easily identifiable by its connector type, color, and pin count. It typically features a black or white plastic insert inside the connector, four pins, and comes in various connector forms such as Type-A, Type-B, Mini-B, and Micro-B. USB 2.0 remains a widely used standard for moderate-speed data transfer and power delivery, supporting up to 480 Mbps. Its compatibility with older devices and broad usage in peripherals makes it a staple cable type even as newer USB standards emerge. Understanding its appearance and technical specifications helps users select the right cable for their needs and troubleshoot connectivity issues effectively.
Frequently Asked Questions (FAQ)
1. What does a USB 2.0 cable look like?
A USB 2.0 cable usually has a rectangular Type-A connector with a white or black plastic insert and four pins inside. Other ends might be Type-B, Mini-B, or Micro-B connectors, each with distinct shapes and pin counts[1][2][4].
2. Can a USB 2.0 cable work with USB 3.0 ports?
Yes, USB 2.0 cables are backward compatible with USB 3.0 ports but will operate only at USB 2.0 speeds (up to 480 Mbps), not the higher USB 3.0 speeds[3][9].
3. How can I visually distinguish a USB 2.0 cable from USB 3.0?
USB 2.0 cables generally have black or white plastic inside the connector and four pins, while USB 3.0 cables have blue plastic and nine pins. USB 3.0 connectors are also often bulkier[13][11].
4. What devices commonly use USB 2.0 cables?
Devices like keyboards, mice, printers, MP3 players, external hard drives, and some older smartphones use USB 2.0 cables for data transfer and charging[3][10].
5. What are the data transfer speeds supported by USB 2.0 cables?
USB 2.0 supports data transfer speeds up to 480 Mbps, which is sufficient for many peripherals but slower than USB 3.x and USB-C standards[3][11].
