Universal Serial Bus (USB) cables are everywhere in our modern digital lives. From charging smartphones to transferring files between computers, USB cables are the backbone of device connectivity. But what exactly do you plug a USB cable into? This in-depth guide explores the various devices, ports, and uses for USB cables, helping you understand everything from the basics to advanced applications.
Introduction to USB Technology
The Universal Serial Bus (USB) was introduced in the mid-1990s as a standardized way to connect computers and peripherals. Since then, USB has evolved into a universal standard for charging, data transfer, and even video output. USB ports and cables are now found on nearly every modern electronic device, making them one of the most recognizable and essential connectors in the world.

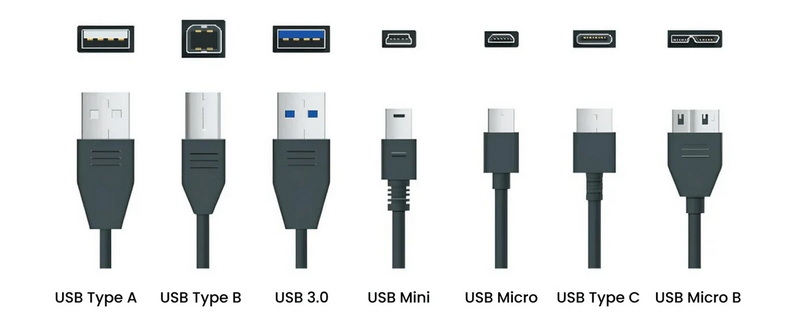

Types of USB Connectors and Ports
Understanding the different types of USB connectors and ports is crucial to knowing what you can plug a USB cable into.
USB Type-A
The most common and recognizable USB connector, Type-A is rectangular and usually found on computers, TVs, game consoles, and USB hubs.
USB Type-B
Typically square-shaped with beveled corners, Type-B connectors are mostly used for printers, scanners, and some external hard drives.
USB Type-C
The latest USB connector, Type-C, is small, oval, and reversible. It supports faster data transfer, higher power delivery, and can even transmit video and audio. Type-C ports are found on modern laptops, smartphones, tablets, and monitors.
Mini-USB and Micro-USB
- Mini-USB: Used in older cameras, MP3 players, and some early smartphones.
- Micro-USB: Common in older Android devices, Bluetooth accessories, and portable electronics.
Proprietary USB Connectors
Some manufacturers use custom USB connectors for specific devices, such as Apple's Lightning port or certain camera brands.
Common Devices You Plug a USB Cable Into
USB cables are used to connect a wide variety of devices. Here are some of the most common:
Computers and Laptops
Most desktops and laptops feature multiple USB ports for connecting peripherals like keyboards, mice, external drives, and more.
Smartphones and Tablets
Modern smartphones and tablets use USB (often Type-C or Micro-USB) for charging, data transfer, and connecting accessories.
Printers and Scanners
Printers and scanners commonly use USB Type-B ports to connect to computers for data transfer and control.
Monitors and Televisions
Many monitors and TVs have USB ports for playing media files, updating firmware, or powering accessories.
Game Consoles
USB ports on game consoles are used for controllers, external storage, charging, and connecting other accessories.
Power Adapters and Wall Chargers
USB cables plug into wall chargers or power adapters for charging mobile devices.
Car Stereos and Infotainment Systems
USB ports in vehicles allow you to play music, charge devices, or connect to the car's infotainment system.
External Storage Devices
USB flash drives, external hard drives, and SSDs use USB connections for data transfer and power.
How to Plug in a USB Cable Correctly
Understanding Male and Female Connectors
- Male Connector: The plug at the end of a USB cable.
- Female Connector: The port or socket on a device that accepts the plug.

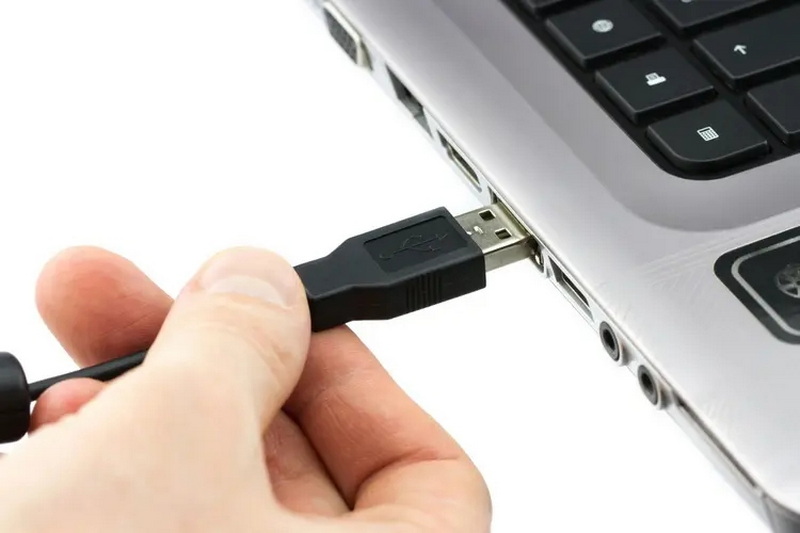

Steps to Plug in a USB Cable
1. Identify the Connector Type: Match the cable's plug (Type-A, Type-B, Type-C, etc.) to the device's port.
2. Orient the Plug: Most USB plugs only fit one way (except Type-C, which is reversible).
3. Insert the Plug: Gently push the plug into the port until it is securely seated.
4. Device Recognition: The host device (like a computer) will usually detect the connection automatically.
Tips for a Secure Connection
- Do not force the plug; if it doesn't fit, check the orientation or connector type.
- Use the correct cable for your device to avoid damage.
Advanced Uses of USB Cables
USB cables are versatile and support more than just charging and data transfer.
Data Transfer
Move files between devices, such as from a smartphone to a computer or between external drives.
Power Delivery
Charge smartphones, tablets, laptops, and other electronics. USB-C supports high-wattage charging for laptops and monitors.
Video Output
USB-C can transmit video signals to monitors and TVs, supporting standards like DisplayPort and HDMI.
Networking
Some USB adapters provide Ethernet or Wi-Fi connectivity for computers and tablets.
Peripheral Connection
Connect keyboards, mice, webcams, printers, cameras, and more.
Understanding USB Versions and Speeds
USB technology has evolved rapidly, with each version offering faster speeds and more power.
| USB Version | Max Speed | Power Delivery | Common Use Cases |
| USB 1.1 | 12 Mbps | 2.5W | Legacy peripherals |
| USB 2.0 | 480 Mbps | 2.5W | Mice, keyboards, drives |
| USB 3.0 | 5 Gbps | 4.5W | External storage, webcams |
| USB 3.1 | 10 Gbps | 7.5W | High-speed storage |
| USB 3.2 | 20 Gbps | 15W | High-end peripherals |
| USB4 | 40 Gbps | Up to 100W+ | Laptops, monitors, hubs |
Video Demonstrations
Identifying USB Ports and Plugs
- Demonstrates the differences between USB-A, USB-B, USB-C, Mini-USB, and Micro-USB.
How to Plug in a USB Cable
- Step-by-step visual guide to plugging in various types of USB cables.
USB-C: The Future of Universal Connections
- Explains the benefits of USB-C, including data, power, and video capabilities.
Troubleshooting USB Connections
- Tips for resolving issues when a USB device isn't recognized by your computer or other device.
Conclusion
USB cables are the universal solution for connecting, charging, and communicating between electronic devices. Whether you're plugging into a computer, smartphone, printer, TV, or car stereo, understanding the different types of USB connectors and ports ensures you can make the right connection every time. As technology advances, USB continues to evolve, offering faster speeds, more power, and greater versatility than ever before. The next time you reach for a USB cable, you'll know exactly what you can plug it into and why.
FAQ:

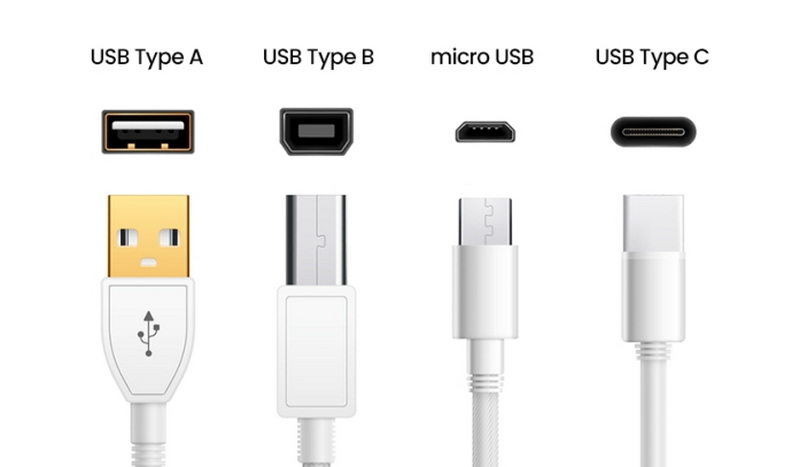

1. What is the difference between USB-A, USB-B, and USB-C?
USB-A is the standard rectangular connector found on most computers and hubs. USB-B is square-shaped and typically used for printers and scanners. USB-C is a smaller, reversible connector that supports faster data transfer, higher power delivery, and can carry video signals. USB-C is becoming the new standard for modern devices.
2. Can I use any USB cable for charging and data transfer?
Not all USB cables support both charging and data transfer. Some cables, especially cheaper ones, may only support charging. Always check the cable's specifications or labeling. USB-C and most USB-A cables support both functions, but it's best to verify before purchase.
3. Why won't my USB device work when I plug it in?
Possible reasons include using the wrong cable type, a faulty cable or port, outdated drivers, or insufficient power. Try a different port, use another cable, or check for software updates. If the device still isn't recognized, it may require additional drivers or be incompatible with your system.
4. What's the maximum length for a USB cable?
USB cables have recommended maximum lengths to ensure reliable data transfer:
- USB 2.0: Up to 5 meters (about 16 feet)
- USB 3.0/3.1: Up to 3 meters (about 10 feet)
Longer runs may require active (powered) cables or USB hubs to boost the signal.
5. What is a USB On-The-Go (OTG) cable?
USB OTG allows certain devices (like smartphones) to act as a host for other USB peripherals (such as flash drives or mice). An OTG cable has a special pin configuration that enables this feature, making it possible to connect devices directly without a computer.
