Views: 222 Author: Tina Publish Time: 2025-05-01 Origin: Site
Content Menu
● The Four Wires Inside a USB Cable: Overview
>> Data Wires: White and Green
● USB Wire Color Codes and Their Meaning
● How USB Cables Work: The Role of the Four Wires
● Evolution of USB Cables and Their Wires
● Common Issues and Repair Tips
● Frequently Asked Questions (FAQs)
>> 1. What do the four wires in a USB cable do?
>> 2. Why are the data wires twisted pairs?
>> 3. Can USB cables with only four wires support USB 3.0 speeds?
>> 4. What is the Configuration Channel (CC) wire in USB-C cables?
>> 5. How can I identify the USB wire colors inside a cable?
Understanding the internal structure of USB cables is essential for grasping how data and power are transmitted between devices. This comprehensive article explores the function of the four wires inside a typical USB cable, their color coding, and their role in USB communication and charging. We will also examine the evolution of USB cables, their pinouts, and answer common questions related to USB wiring.

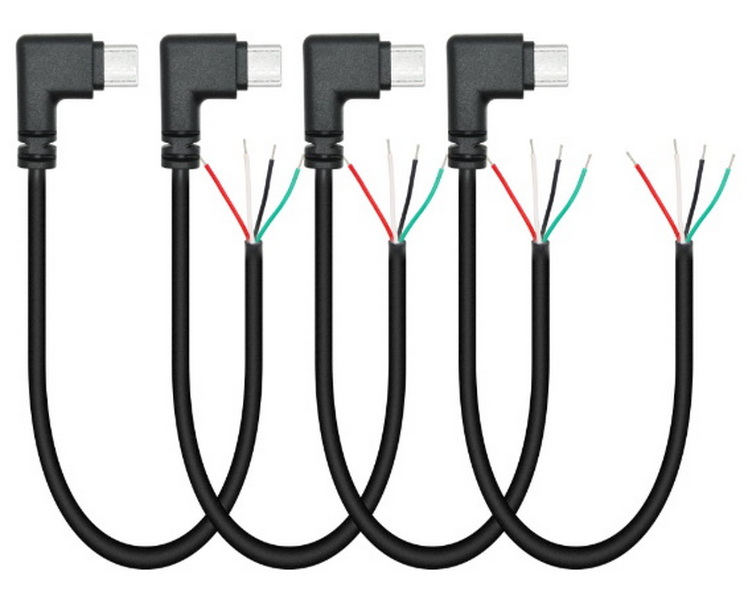

A standard USB cable contains four core wires, each with a specific function:
- Red wire: Carries +5V power (VCC)
- Black wire: Ground (GND)
- White wire: Data minus (D-)
- Green wire: Data plus (D+)
These wires enable the USB cable to deliver both power and data between devices[2][3][9].
- The red wire supplies a +5 volts DC power from the host device (like a computer or charger) to the peripheral device.
- The black wire serves as the ground, completing the electrical circuit.
Together, these two wires provide the necessary power for USB devices to operate or charge[2][3][4].
- The white wire carries the negative differential data signal (D-).
- The green wire carries the positive differential data signal (D+).
These two wires form a twisted pair that transmits data bidirectionally between the host and the device. The differential signaling helps reduce noise and improve data integrity during transfer[2][3][4][9].
The color coding of USB wires is standardized to help identify their functions easily:
| Wire Color | Function | Description |
|---|---|---|
| Red | VCC (Power +5V) | Supplies power to the device |
| Black | Ground (GND) | Electrical ground reference |
| White | Data Minus (D-) | Carries negative differential data signals |
| Green | Data Plus (D+) | Carries positive differential data signals |
Sometimes, alternative color schemes exist, such as orange replacing red for power, or blue for D-, but the above is the most common standard[2][4][9].
When you connect a USB cable between two devices, the following occurs:
- The power wires (red and black) provide the necessary electrical power to the peripheral device.
- The data wires (white and green) transmit data signals, enabling communication between the host and the peripheral.
This setup allows USB cables to simultaneously charge devices and transfer data, which is why USB has become a universal interface for many electronics[3][5][6].
Each USB connector type (Type-A, Type-B, Micro USB, USB-C) has a specific pinout that corresponds to these four wires. For example, in a USB-C connector, the four wires correspond to pins as follows:
- Pin 1: VCC (+5V power)
- Pin 2: D- (Data minus)
- Pin 3: D+ (Data plus)
- Pin 4: GND (Ground)
The two outer pins usually supply power, and the two inner pins handle data signals[9].
USB-C cables, especially those supporting USB 3.x and USB Power Delivery (PD), may contain more than four wires internally to support higher data rates and power negotiation. However, the basic USB 2.0 functionality still relies on the four fundamental wires described above.
Additionally, USB-C cables include a Configuration Channel (CC) wire used for:
- Detecting device orientation (allowing reversible plug insertion)
- Negotiating power delivery up to 3A or more
- Determining host vs. device roles
This CC wire is separate from the four main wires and is essential for USB-C's advanced capabilities[1].
USB cables have evolved from USB 1.1 and USB 2.0, which use these four wires, to USB 3.x and USB4, which add more wires for higher speeds and additional functions.
| USB Version | Number of Wires | Data Transfer Speed | Power Delivery Support |
|---|---|---|---|
| USB 1.1 | 4 | 12 Mbps | No |
| USB 2.0 | 4 | 480 Mbps | Yes |
| USB 3.0 | 9+ | 5 Gbps | Yes |
| USB 3.1 | 9+ | 10 Gbps | Yes |
| USB4 | More than 9 | Up to 40 Gbps | Yes |
Despite the additional wires in newer standards, the original four wires (power and USB 2.0 data) remain fundamental for compatibility[6].
Knowing the function of each wire helps in troubleshooting USB cable problems. For example, if a USB device charges but does not transfer data, the power wires (red and black) are intact, but the data wires (white and green) may be damaged.
Sometimes, users can repair a USB cable by replacing or reconnecting these wires correctly, saving the cost of a new cable[2][7].
The four wires inside a USB cable play crucial roles in delivering power and enabling data communication between devices. The red wire supplies +5V power, the black wire serves as ground, and the white and green wires carry differential data signals (D- and D+). This simple yet effective wiring scheme has allowed USB to become the universal standard for connecting and charging countless devices worldwide.
Understanding these wires and their functions not only helps in choosing the right USB cables but also aids in troubleshooting and repairing USB connections. With the advancement of USB technology, additional wires and channels have been introduced, especially in USB-C cables, but the original four-wire system remains the foundation of USB communication.
The four wires consist of two power wires (red for +5V and black for ground) and two data wires (white for D- and green for D+), enabling power delivery and data communication between devices[2][3][9].
Twisting the data wires (D+ and D-) helps reduce electromagnetic interference and improves signal integrity during data transmission[2][3].
No, USB 3.0 cables require additional wires beyond the basic four to support SuperSpeed data transfer rates. The four wires support USB 2.0 speeds up to 480 Mbps[6].
The CC wire in USB-C cables is used to detect plug orientation, negotiate power delivery, and determine device roles (host vs. peripheral). It is separate from the four main wires[1].
Typically, red is +5V, black is ground, white is D-, and green is D+. Some cables may use different colors, but this is the most common standard[2][9].
