USB cables are ubiquitous in modern electronics, used for everything from charging smartphones to transferring data between devices. Despite their common use, many people are unaware of the internal wiring of a USB cable and the specific functions of each wire. This article explores in detail what the wires inside a USB cable are, their roles, and how they work together to enable power delivery and data communication. We will also cover different USB cable types, their wiring variations, and practical insights for users and DIY enthusiasts.
The Four Main Wires Inside a USB Cable
A standard USB cable typically contains four core wires, each with a distinct color and function:
| Wire Color | Function | Description |
| Red | VCC / +5V Power | Supplies +5 volts DC power to the connected device |
| Black | Ground (GND) | Completes the electrical circuit, serving as the negative terminal |
| White | Data- (D-) | Carries differential data signals in the negative direction |
| Green | Data+ (D+) | Carries differential data signals in the positive direction |
These wires are enclosed within a shielding layer that protects the signals from electromagnetic interference (EMI), ensuring reliable data transfer and power delivery[2][5][12][15].
Power Wires: Red and Black
- Red Wire (+5V): This wire carries a constant 5 volts DC from the host device (like a computer or charger) to the peripheral device. It powers the device or charges its battery.
- Black Wire (Ground): This wire serves as the ground or negative side of the circuit. It completes the electrical loop and stabilizes voltage levels to prevent fluctuations.
Data Wires: White and Green
- White Wire (Data-): One half of the differential pair used for data transmission. It carries data signals in one direction.
- Green Wire (Data+): The complementary wire to the white one, carrying data signals in the opposite phase. Together, these two wires enable balanced, noise-resistant data communication between devices[2][5][6][12].
How USB Cable Wiring Works
When a USB cable connects a host device (such as a computer) to a peripheral (such as a flash drive or smartphone), the following occurs:
- Power Delivery: The red wire delivers +5V power, while the black wire provides the ground connection, powering the device.
- Data Transfer: The white and green wires form a differential pair that transmits digital data signals. This differential signaling reduces noise and allows reliable communication even over longer cables.
- Shielding: The cable's shielding protects the internal wires from external electromagnetic interference, which could corrupt data[2][11].
USB Cable Types and Their Wiring Differences

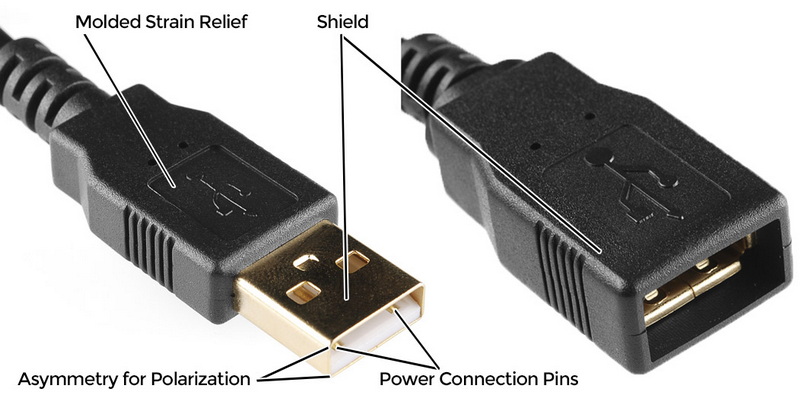

USB Type-A and Type-B
- USB Type-A: The most common rectangular connector, usually found on host devices like computers.
- USB Type-B: Square-shaped connector often used for printers or external hard drives.
Both use the same four-wire configuration internally (power, ground, data+, data-), but their connectors differ physically[2][9][11].
USB Micro and Mini USB
- These smaller connectors are used for mobile devices and cameras.
- They maintain the same four-wire setup but have a slightly different pin configuration to fit smaller form factors[9].

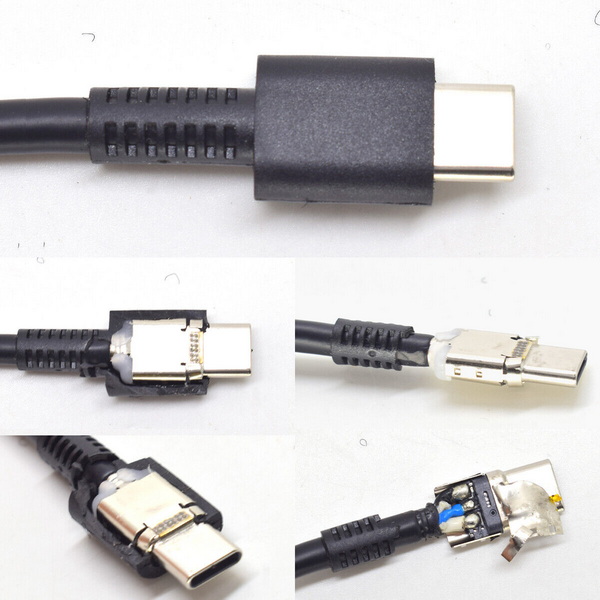

USB Type-C
- The newest USB standard, USB-C, supports more wires and pins to enable higher power delivery and faster data transfer.
- USB-C cables include the four traditional wires (power, ground, D+, D-) plus additional wires for configuration and alternate modes.
- One important addition is the Configuration Channel (CC) wire, which helps negotiate power roles, cable orientation (flipability), and power delivery up to 100 watts[3][16].
| Wire Color | USB-C Function |
| Red | +5V Power (VBUS) |
| Black | Ground (GND) |
| White | Data- (D-) |
| Green | Data+ (D+) |
| Additional | Configuration Channel (CC) |

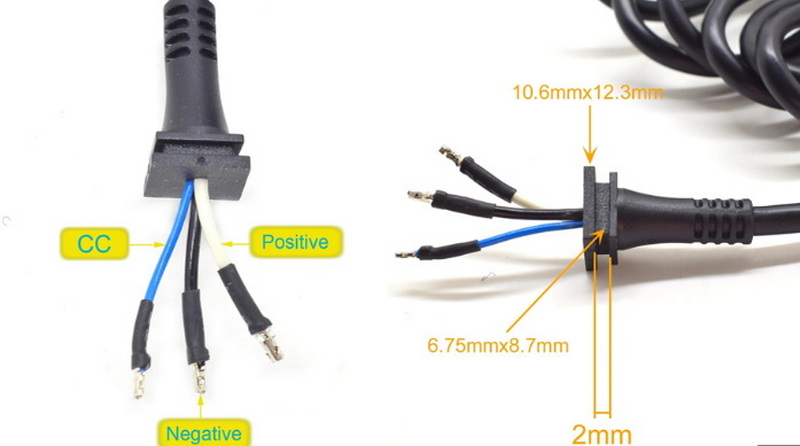

USB-C cables can have either 4 or 5 wires depending on whether they support USB 2.0 or USB Power Delivery features[3][16].
Practical Applications of USB Cable Wires
- Charging Devices: The red and black wires supply power to charge phones, tablets, and other gadgets.
- Data Transfer: The green and white wires enable data communication between computers and peripherals like keyboards, mice, flash drives, and printers.
- DIY Projects: Hobbyists use the power wires to supply 5V to small electronics like LEDs or microcontrollers, while data wires can be used for communication protocols.
Conclusion
Understanding the wires inside a USB cable demystifies how these everyday cables function. The four main wires-red for +5V power, black for ground, and white and green for data-work together to provide both power and data transfer capabilities. Newer USB standards, especially USB-C, add more complexity with additional wires for configuration and higher power delivery. This knowledge is valuable for troubleshooting, DIY electronics, and choosing the right cable for your needs.
Frequently Asked Questions (FAQ)
1. What are the four wires inside a USB cable and their functions?
The four wires are red (+5V power), black (ground), white (Data-), and green (Data+). Red and black provide power, while white and green carry data signals[2][5][12].
2. Why does a USB-C cable have more wires than a USB-A cable?
USB-C cables include additional wires such as the Configuration Channel (CC) to manage power roles, cable orientation, and support higher power delivery, unlike USB-A which has only four wires[3][16].
3. Can I use a USB 3.0 cable with a USB 2.0 device?
Yes, USB 3.0 cables are backward compatible with USB 2.0 devices but will operate at USB 2.0 speeds[7][17].
4. What is the purpose of shielding in a USB cable?
Shielding protects the internal wires from electromagnetic interference (EMI), ensuring stable power delivery and error-free data transfer[2][11].
5. How do the data wires in a USB cable transmit information?
The white and green wires form a differential pair that transmits data signals in opposite phases, reducing noise and allowing reliable communication[2][5][12].
