USB cables are essential connectors that link a wide array of electronic devices, enabling power delivery and data transfer. Over the years, USB technology has evolved significantly, resulting in multiple types of USB cables tailored for different devices and purposes. This article delves deeply into the various types of USB cables, their features, uses, and compatibility, providing you with a thorough understanding to choose the right cable for your needs.

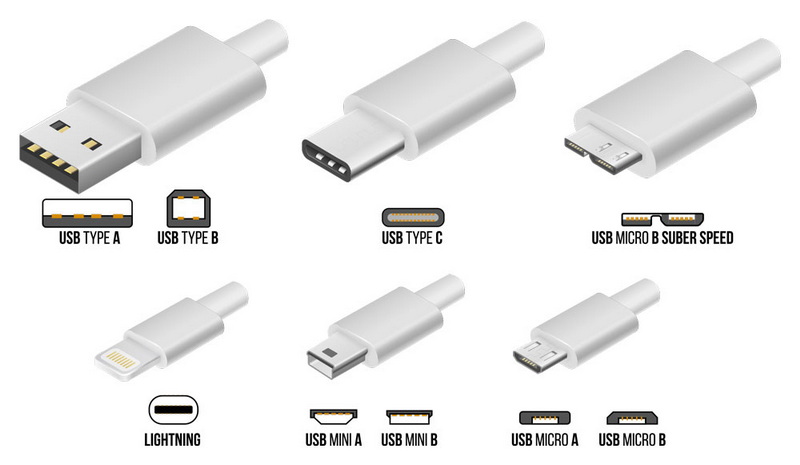

Understanding USB Cable Types

USB, or Universal Serial Bus, was introduced in 1996 to standardize the connection between computers and peripherals. Since then, USB cables have diversified into several types, each with unique shapes, speeds, and functionalities.

1. USB Type-A

Description

USB Type-A is the most recognized and widely used USB connector. It features a flat, rectangular shape and is primarily used on host devices such as computers, laptops, gaming consoles, and charging hubs[2][5][6].

Features

- Non-reversible connector (can only be plugged in one way)

- Compatible with USB 1.1, 2.0, 3.0, 3.1, and 3.2 standards

- Typically found on one end of most USB cables connecting to hosts

Use Cases

- Connecting peripherals like keyboards, mice, and flash drives

- Charging hubs and docking stations

- Gaming consoles and external hard drives

Variants

- USB 2.0 Type-A: Data transfer up to 480 Mbps

- USB 3.0/3.1 Type-A: Data transfer speeds up to 5-10 Gbps, often identified by blue-colored inserts inside the connector[4][6][11]

2. USB Type-B

Description

USB Type-B connectors are square-shaped with beveled edges and are mostly used for connecting larger peripherals such as printers, scanners, and external hard drives to computers[1][2][6][14].

Features

- Non-reversible design

- Supports USB 1.1 through USB 3.1 standards

- Less common in modern devices due to wireless alternatives and smaller connectors

Use Cases

- Printers

- Scanners

- Hard-drive enclosures

- PTZ cameras and other specialized equipment

Variants

- USB 2.0 Type-B: Data transfer up to 480 Mbps

- USB 3.0 Type-B: Enhanced data transfer up to 5 Gbps, with a slightly different connector shape to accommodate more pins[6][14]

3. Mini USB

Description

Mini USB connectors are smaller than Type-A and Type-B and were commonly used in older mobile devices, cameras, and MP3 players[1][5][14].

Features

- Smaller rectangular shape

- Mostly replaced by Micro USB in recent years

- USB 2.0 standard compatibility

Use Cases

- Older digital cameras

- Some early mobile phones and portable devices

4. Micro USB

Description

Micro USB connectors are trapezoid-shaped and were the most common USB connectors for mobile devices before USB-C became prevalent[1][5][14].

Features

- Non-reversible plug

- Compatible with USB 2.0 and USB 3.0 (Micro-B variant)

- Supports data transfer and charging

Use Cases

- Older Android smartphones and tablets

- Some gaming controllers

- Portable battery packs

Variants

- USB 2.0 Micro-B: Standard for many mobile devices

- USB 3.0 Micro-B: Wider connector with extra pins for higher speeds, used in some external hard drives[1][14]

5. USB Type-C

Description

USB Type-C is the latest USB connector, introduced in 2014, designed to replace all previous USB types with a single, reversible connector capable of high-speed data transfer and power delivery[1][2][4][5][6][14].

Features

- Reversible, symmetrical design (can be plugged in either way)

- Supports USB 3.1, 3.2, USB4, and Thunderbolt protocols

- High data transfer rates up to 40 Gbps (USB4)

- Power delivery up to 100W or more with USB Power Delivery (PD) specification

- Supports alternate modes such as DisplayPort and HDMI for video output

Use Cases

- Smartphones and tablets

- Laptops and ultrabooks

- External monitors and docking stations

- Gaming consoles like Nintendo Switch and PlayStation 5

Variants and Speeds

USB-C Cable Type	Data Transfer Speed	Power Delivery Capability	Typical Use Cases
USB 2.0 Type-C	Up to 480 Mbps	Standard charging	Basic charging and data transfer
USB 3.0/3.1 Type-C	Up to 5-10 Gbps	Faster charging	High-speed data transfer, fast charging
USB 3.2 Gen 2x2	Up to 20 Gbps	Higher power delivery	Ultra-fast data transfer
USB4 Type-C	Up to 40 Gbps	Up to 100W+ power delivery	High-performance devices, video, power

Additional Notes

- Not all USB-C cables support the same features; some may only support charging or data transfer, so checking specifications is essential[14].

- USB-C cables are increasingly becoming the universal standard due to their versatility and performance[1][4][14].

Conclusion

USB cables have evolved from simple connectors designed for basic data transfer and charging to sophisticated cables capable of ultra-fast data transmission, high power delivery, and video output. Understanding the different types of USB cables - USB Type-A, Type-B, Mini USB, Micro USB, and USB Type-C - helps users select the right cable for their devices and needs. USB Type-C stands out as the future-proof standard due to its reversibility, speed, and power capabilities, but legacy cables like USB-A and USB-B still play important roles in many setups. When purchasing USB cables, always check the specifications to ensure compatibility with your device's requirements.

Frequently Asked Questions (FAQs)

1. What is the difference between USB Type-A and USB Type-C?

USB Type-A is the traditional flat rectangular connector mostly found on host devices, while USB Type-C is a newer, reversible connector that supports faster data transfer, higher power delivery, and alternate modes like video output[1][4][5].

2. Can I use a USB 3.0 cable with a USB 2.0 device?

Yes, USB 3.0 cables are backward compatible with USB 2.0 devices, but data transfer speeds will be limited to USB 2.0 rates[9].

3. Are all USB-C cables the same?

No, USB-C cables vary in their data transfer speeds and power delivery capabilities. Some support only charging, others support fast data transfer, and some support video output and high wattage charging. Always check the cable's specifications[14].

4. What devices use USB Type-B connectors?

USB Type-B connectors are mainly used for larger peripherals like printers, scanners, and some external hard drives[1][2][14].

5. Why is USB Type-C considered better than Micro USB?

USB Type-C is reversible, supports higher data transfer speeds, delivers more power for faster charging, and supports alternate modes like video output, making it more versatile than Micro USB[1][4][5].
