USB cables are essential connectors that power, charge, and enable data transfer between countless electronic devices worldwide. Despite their ubiquity, many users are unaware of the detailed internal structure and components that make USB cables function effectively. This article explores the parts of a USB cable, their functions, and the different types of USB connectors available today. It also includes visual explanations and answers to common questions about USB cables.

Understanding USB Cable Components

A USB cable consists of several key parts that work together to transmit power and data reliably.

1. The Outer Sheath: Protection and Durability

The outermost layer of a USB cable is called the outer sheath or jacket. It serves as a protective barrier that shields the internal wires from physical damage such as bending, twisting, abrasion, and environmental factors. This sheath is typically made from flexible plastic or rubber materials, and higher-quality cables may feature a braided outer layer for enhanced durability and tangle resistance[9].

2. Shielding: Electromagnetic Interference Protection

Beneath the outer sheath lies the shielding layer, often composed of a braided metal mesh and/or aluminum foil. This shielding protects the cable from electromagnetic interference (EMI) and radio frequency interference (RFI), which can disrupt data transmission. The shielding also helps reduce crosstalk between the wires inside the cable[5][11].

3. Conductors: Power and Data Transmission

Inside the shielding are multiple conductors-wires made of copper or copper-clad materials-that carry electrical signals and power.

- Power Conductors: These wires deliver electrical current to the connected device. Typically, there are two power wires:

- V BUS (+5V): Usually a red wire, carries +5 volts DC to power the device.

- Ground (GND): Usually black or brown, serves as the electrical ground completing the circuit[1][3][11].

- Data Conductors: Two wires transmit data signals in differential pairs to reduce noise:

- D+ (Data Positive): Often white or green, carries positive data signals.

- D− (Data Negative): Often green or white, carries negative data signals[1][3][5][11].

In more advanced USB cables like USB 3.0 and USB-C, additional pairs of data wires exist to support higher-speed data transfer[1].

4. Insulation: Electrical Isolation

Each conductor is wrapped in an insulating material (usually polyethylene or similar plastic) to prevent electrical shorts between wires and to maintain signal integrity[5][9].

5. Connectors: The Interface to Devices

At each end of the cable are connectors that plug into devices. The type of connector varies depending on the USB standard and device compatibility.

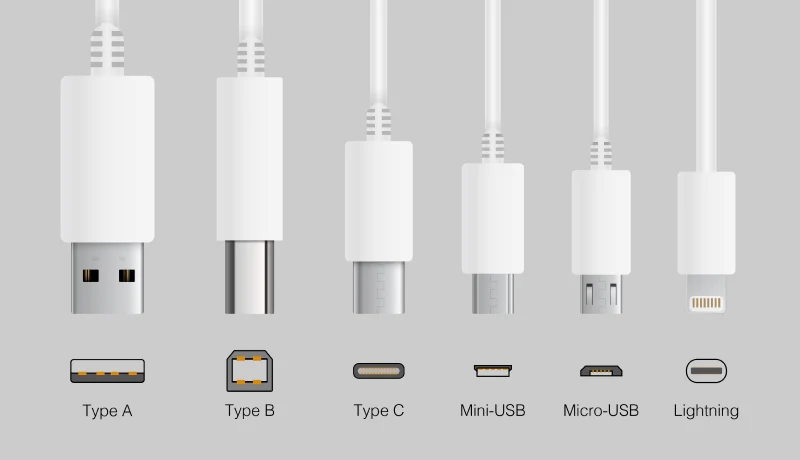

Common USB Connector Types and Their Parts

USB Type-A

- The most recognizable USB connector, rectangular in shape.

- Typically found on host devices like computers, TVs, and game consoles.

- Contains four pins/wires for USB 2.0 (power and data) and additional pins for USB 3.x versions supporting SuperSpeed data transfer[1][2][10].

USB Type-B

- Square-shaped connector often used on printers and larger peripherals.

- Designed to connect downstream devices to hosts[1][2][3].

Micro-USB and Mini-USB

- Smaller connectors used in older smartphones and portable devices.

- Micro-USB has a distinct trapezoidal shape; Mini-USB is slightly larger.

- Both have 5 pins, including power, ground, data lines, and an ID pin for On-The-Go devices[1][2].

USB Type-C

- The latest USB connector standard.

- Reversible design, allowing insertion either way.

- Contains 24 pins, including multiple power and data lanes, sideband use pins, and configuration pins.

- Supports USB 3.1, USB4, Thunderbolt, and alternate modes like DisplayPort[1][2][9].

Detailed USB Cable Internal Structure

Part	Description	Typical Wire Color(s)
Outer Sheath	Protective flexible jacket, often plastic or braided for durability	Black, white, or colored
Shielding	Braided metal mesh and/or aluminum foil to block EMI/RFI	Metallic
V BUS (Power)	Supplies +5V DC power to the device	Red or orange
Ground (GND)	Completes the electrical circuit, stabilizes voltage	Black or brown
Data+ (D+)	Carries positive differential data signals	White or green
Data− (D−)	Carries negative differential data signals	Green or white
Insulation	Plastic coating around each conductor to prevent shorts and maintain signal integrity	Clear or colored
Connector Pins	Metal contacts inside connectors that interface with device ports	Metallic

How a USB Cable Works

When connected, the USB cable establishes four primary pathways:

- Power Delivery: The V BUS and GND wires supply power from the host (e.g., computer or charger) to the peripheral device.

- Data Transmission: The D+ and D− wires carry digital signals as differential pairs, allowing the host and device to communicate bi-directionally.

- Signal Integrity: Shielding and insulation ensure minimal interference and stable data transfer.

- Device Recognition: The host detects the connected device, assigns an address, and manages data flow through the USB protocol[3][11].

Conclusion

USB cables are more than just simple cords; they are complex assemblies designed to deliver power and data efficiently and reliably. The four main internal wires-power (V BUS and GND) and data (D+ and D−)-combined with protective layers like insulation and shielding, ensure that your devices stay connected and charged. Understanding the parts of a USB cable, including the various connector types, helps in choosing the right cable for your devices and troubleshooting connectivity issues. As technology evolves, USB-C is becoming the universal standard, offering faster speeds, higher power delivery, and greater versatility.

Frequently Asked Questions (FAQs)

1. What are the four main wires inside a USB cable called?

The four main wires are V BUS (+5V power), Ground (GND), Data+ (D+), and Data− (D−)[1][3][11].

2. What is the purpose of shielding in a USB cable?

Shielding protects the internal wires from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable data transmission[5][9].

3. How does USB-C differ from older USB connectors?

USB-C has a reversible design, supports higher data transfer rates with more data lanes, delivers more power, and supports alternate modes like video output, unlike older USB-A or USB-B connectors[1][2][9].

4. Can a USB 3.0 cable work with USB 2.0 devices?

Yes, USB 3.0 cables are backward compatible with USB 2.0 devices but will operate at USB 2.0 speeds[7][12].

5. Why do USB cables have different colored wires?

Each color represents a specific function: red for power, black or brown for ground, white and green for data lines, helping in identification and correct wiring[5][11].
