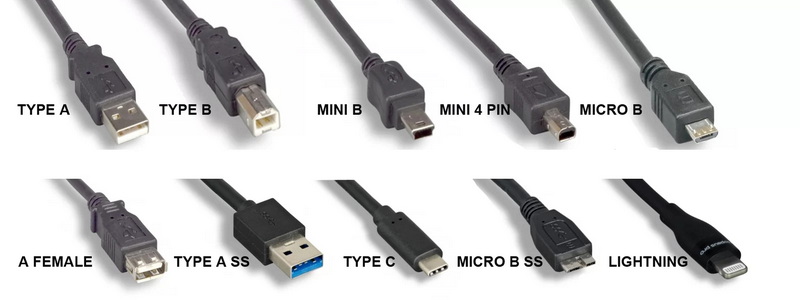

USB cables are essential connectors that link computers and other host devices to peripherals such as printers, external drives, smartphones, and more. Understanding the terminology and types of USB cable ends is crucial for selecting the right cable for your needs. This comprehensive article explores what the ends of a USB cable are called, their types, functions, and how to identify them, supported by illustrations and videos for clarity.

What Are the Ends of a USB Cable Called?

USB cables typically have two ends, each with a specific name and function:

- USB Type-A Connector: This is the most common and recognizable USB plug, usually rectangular in shape. It is often referred to as the "upstream" end because it connects to the host device, such as a computer, laptop, or charger[1][2][14].

- USB Type-B Connector: This connector is usually square-shaped with beveled edges on the top corners. It is called the "downstream" end because it connects to peripheral devices like printers, scanners, or external hard drives[1][2][14].

Other USB cable ends include Mini USB, Micro USB, and the newer USB Type-C, each designed for different devices and purposes.

Detailed Overview of USB Cable Ends

1. USB Type-A Connector

- Shape and Appearance: Rectangular, flat, and typically larger than other USB connectors. It is designed to plug into the host device's USB port[2][7][8].

- Function: Acts as the source end of the cable, providing power and data transfer capabilities to the connected peripheral.

- Compatibility: Found on almost all computers, laptops, and many chargers. It supports all USB versions from USB 1.1 to USB 3.2 and USB4[2][8][13].

- Insertion: Can only be inserted one way due to its internal pin arrangement and shape. The USB symbol on the connector usually indicates the correct orientation[12].

2. USB Type-B Connector

- Shape and Appearance: Square with a slight rounding or protrusion on the top. It prevents incorrect connections by its unique shape[2][8][9].

- Function: Connects to peripheral devices such as printers, scanners, and external hard drives.

- Variants: There are several USB Type-B variants, including Mini-B and Micro-B, which are smaller and used for compact devices like cameras and smartphones[2][4][5].

- Compatibility: USB 1.1 and USB 2.0 Type-B plugs can fit into USB 3.0 Type-B receptacles, but USB 3.0 Type-B plugs are not backward compatible with earlier versions[2].

3. USB Mini and Micro Connectors

- USB Mini-B: Smaller than Type-B, used historically for mobile devices like MP3 players and cameras[4][5].

- USB Micro-B: Even smaller, widely used for smartphones and small gadgets before USB-C became prevalent. It has a distinct shape and usually includes an ID pin for On-The-Go (OTG) devices[1][3][4].

- USB Micro-B SuperSpeed: Used for USB 3.x devices, identifiable by additional pins and often a blue insert in the connector[3][7].

4. USB Type-C Connector

- Shape and Appearance: Small, oval, and symmetrical, allowing reversible insertion (can be plugged in either way)[2][3][7][12].

- Function: Supports high-speed data transfer, power delivery, and video output. It is the latest USB connector standard and is rapidly replacing older types[6][12].

- Compatibility: Used in modern smartphones, laptops, and peripherals. Supports USB 3.1, USB 4, and Thunderbolt 3 protocols[6][13].

How USB Cable Ends Work Together

USB cables connect devices by linking a host (computer or charger) to a peripheral (printer, phone, external drive). The Type-A end plugs into the host, while the Type-B or other smaller connectors plug into the peripheral device. This design ensures correct data flow direction and power delivery.

Summary Table of Common USB Cable Ends

Connector Type	Shape	Typical Use	Direction	Compatibility Notes
USB Type-A	Rectangular	Host devices (PC, charger)	Upstream (host)	Supports USB 1.1 to USB4
USB Type-B	Square with bevel	Printers, scanners, peripherals	Downstream (device)	Variants: Mini-B, Micro-B; USB 3.0 differs
USB Mini-B	Small trapezoid	Older mobile devices, cameras	Peripheral	Mostly obsolete
USB Micro-B	Small, tapered	Smartphones, small gadgets	Peripheral	Micro-B SuperSpeed variant for USB 3.x
USB Type-C	Oval, reversible	Modern phones, laptops, devices	Both ends possible	Supports power, data, video; reversible plug

Conclusion

The ends of a USB cable are primarily called USB Type-A and USB Type-B, representing the host and peripheral connections, respectively. Over time, numerous variants such as Mini, Micro, and the modern USB Type-C have emerged to accommodate evolving device designs and functionalities. Understanding these connector types and their roles ensures proper device connectivity, optimal data transfer, and power delivery. Whether you are connecting a printer, charging a smartphone, or transferring data to an external drive, knowing the correct USB cable ends will help you choose the right cable and avoid connection issues.

Frequently Asked Questions (FAQs)

1. What are the two main ends of a USB cable called?

The two main ends are called USB Type-A (usually plugs into the host device) and USB Type-B (connects to peripheral devices like printers)[1][2][14].

2. How can I identify the USB Type-A connector?

USB Type-A is rectangular and flat, commonly found on computers and chargers. It can only be inserted one way and often has a USB symbol on top[2][8][12].

3. What devices use USB Type-B connectors?

USB Type-B connectors are commonly found on printers, scanners, and some external hard drives. They are square-shaped with beveled edges[2][8][9].

4. What is the difference between USB Micro-B and USB Type-C connectors?

USB Micro-B is smaller and used mainly on older smartphones and gadgets, with a fixed orientation. USB Type-C is newer, reversible, and supports faster data transfer and power delivery[3][6][12].

5. Can USB Type-A and USB Type-B connectors be interchangeable?

No, USB Type-A and Type-B connectors have different shapes and purposes and cannot be interchanged. However, cables often have Type-A on one end and Type-B on the other to connect hosts to peripherals[1][2][14].
