USB-C has rapidly become the universal standard for connecting and powering devices, from smartphones and tablets to laptops, monitors, and even some desktop computers. Its small, reversible design and ability to carry data, video, and power have made it a favorite among manufacturers and consumers alike. However, the world of USB-C cables is far from simple. Despite sharing the same connector, USB-C cables can differ dramatically in their capabilities, which can lead to confusion, frustration, and even device damage if the wrong cable is used.
In this comprehensive guide, we'll explore the different types of USB-C cables, how they work, what makes them unique, and how to choose the right one for your needs. By the end, you'll be able to confidently pick the perfect USB-C cable for any situation.
What Is USB-C?
USB-C, officially known as USB Type-C, is a 24-pin connector introduced in 2014 as part of the USB 3.1 specification. Its design is symmetrical, meaning you can plug it in either way, which solves one of the most annoying problems of previous USB connectors. But USB-C is more than just a new shape—it's a versatile interface that can handle data transfer, power delivery, and even video output, all through a single cable.
Today, USB-C is found on a wide range of devices, including:
- Smartphones and tablets
- Laptops and ultrabooks
- External hard drives and SSDs
- Monitors and docking stations
- Game consoles and accessories
The adoption of USB-C has helped to reduce cable clutter and simplify device connectivity, but it has also introduced new complexities due to the different capabilities hidden within cables that look identical on the outside.
Why Are There Different Types of USB-C Cables?
At first glance, all USB-C cables appear the same. However, the capabilities of a USB-C cable depend on its internal wiring and the protocols it supports. This means that two cables with identical connectors can have vastly different functions:
- Some USB-C cables are designed only for charging.
- Others support high-speed data transfer, video output, or both.
- Power delivery capabilities can vary, impacting how quickly your devices charge.
This diversity exists because the USB-C connector is simply a physical interface. The actual features—such as data speed, power delivery, and video support—are determined by the cable's internal construction and the USB specification it follows.
Types of USB-C Cables by Data Speed
The data speed of a USB-C cable is determined by the USB protocol it supports. Here's a breakdown of the main types:
USB 2.0 Type-C Cables
- Maximum Data Speed: 480 Mbps
- Typical Uses: Basic charging, connecting peripherals like keyboards and mice, low-speed data transfer.
- Limitations: Does not support high-speed data transfer or video output.
USB 3.2 Gen 1 (USB 3.0/3.1 Gen 1) Type-C Cables
- Maximum Data Speed: 5 Gbps
- Typical Uses: External hard drives, docking stations, fast file transfers.
- Features: Supports higher data transfer rates and can deliver more power than USB 2.0.
USB 3.2 Gen 2 Type-C Cables
- Maximum Data Speed: 10 Gbps
- Typical Uses: High-speed SSDs, advanced peripherals, and some monitors.
- Features: Suitable for demanding data transfer tasks and some video applications.
USB 3.2 Gen 2x2 Type-C Cables
- Maximum Data Speed: 20 Gbps
- Typical Uses: Professional applications, transferring large media files, ultra-fast external storage.
- Features: Doubling the bandwidth of Gen 2, ideal for content creators and professionals.
USB4 and Thunderbolt 3/4 Type-C Cables
- Maximum Data Speed: 40 Gbps
- Typical Uses: Dual 4K or single 8K video, ultra-fast storage, advanced docking solutions.
- Features: Supports the highest data rates, video output, and power delivery.
Real-World Implications
The difference in data speed can be dramatic. For example, transferring a 10GB video file over USB 2.0 can take over 3 minutes, while USB4 or Thunderbolt 4 can do it in a matter of seconds. Always check the cable's specification if you need fast data transfer.
Types of USB-C Cables by Power Delivery
USB-C cables can also vary in how much power they can deliver. This is especially important for charging laptops, tablets, and other high-powered devices.
Standard Power Delivery (15W)
- Maximum Output: 15W (5V/3A)
- Typical Uses: Charging smartphones, tablets, and small accessories.
- Features: Suitable for most basic charging needs.
Enhanced Power Delivery (60W)
- Maximum Output: 60W (20V/3A)
- Typical Uses: Charging ultrabooks, tablets, and some smaller laptops.
- Features: Requires higher-quality cables; often used for mid-range laptops.
High Power Delivery (100W)
- Maximum Output: 100W (20V/5A)
- Typical Uses: Charging gaming laptops, professional workstations, and powering docking stations.
- Features: Requires an E-Marker chip in the cable for safety and negotiation.
Extended Power Delivery (240W)
- Maximum Output: 240W (48V/5A)
- Typical Uses: High-end workstations, e-bikes, and future high-power devices.
- Features: The newest addition to the USB PD standard, offering unprecedented charging capability.
Safety Note
Cables supporting more than 3A (over 60W) must include an E-Marker chip. This chip communicates the cable's power and data capabilities to connected devices, ensuring safe and optimal charging.
USB-C Cables for Video and Alternate Modes
One of the most powerful features of USB-C is its ability to carry video signals through “Alternate Modes” (Alt Modes). However, not all USB-C cables support video output.
DisplayPort Alt Mode
- Function: Allows USB-C to transmit DisplayPort video signals.
- Typical Uses: Connecting to monitors, projectors, and docking stations.
- Requirements: Both the device and the cable must support DisplayPort Alt Mode.
HDMI Alt Mode
- Function: Enables direct HDMI output from a USB-C port.
- Typical Uses: Connecting to TVs, projectors, and home theater systems.
- Requirements: Supported on select devices and cables.
Thunderbolt Mode
- Function: Supports PCIe and DisplayPort signals, enabling dual 4K or single 8K video, daisy-chaining devices, and ultra-fast data transfer.
- Typical Uses: Professional video editing, advanced docking, and high-performance storage.
Important Note
A USB-C cable must be “full-featured” (all wires populated) to support video output. Basic charging or USB 2.0 data cables do not support video. Always verify cable specifications if you plan to use video features.
Physical Differences and Markings

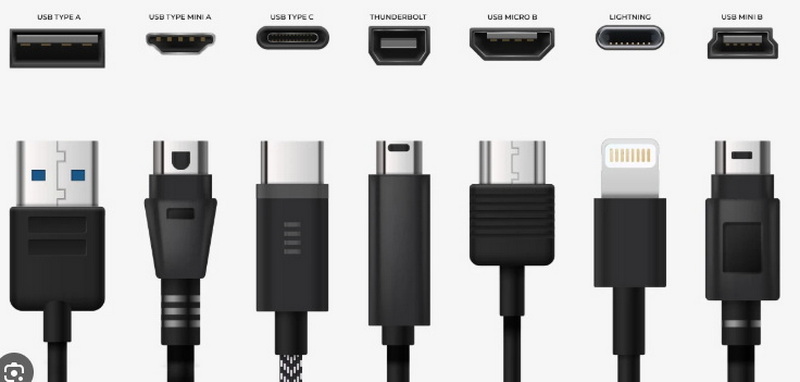

Cable Types
- USB-C to USB-C:
Both ends have USB-C connectors. Used for modern devices and supports the full range of USB-C features.
- USB-A to USB-C:
One end USB-A (rectangular), one end USB-C. Used for compatibility with older chargers and computers.
- USB-C to HDMI/DisplayPort:
Specialized cables for direct video output, often used with monitors and TVs.
Markings and Color Codes
- SuperSpeed Logo:
Indicates support for USB 3.x or USB4 speeds.
- Power Delivery Logo:
Indicates support for high-wattage charging.
- Cable Color Codes:
Some manufacturers use colored connectors or cable jackets to indicate features, but this is not standardized.
E-Marker Chips
Cables that support more than 60W of power or high-speed data transfer (USB 3.1 Gen 2 and above) often include an E-Marker chip. This chip ensures safe operation by communicating the cable's capabilities to the connected devices.
Common Problems and Troubleshooting
Despite their versatility, USB-C cables can sometimes cause issues. Here are some common problems and solutions:
Connectivity Issues
- Symptoms: Devices not recognized, intermittent connections.
- Causes: Dirt, debris, or worn-out connectors.
- Solution: Clean the connectors gently with compressed air or a soft brush. Replace cables that show signs of wear.
Slow Charging
- Symptoms: Devices charge slowly or not at all.
- Causes: Incompatible or low-quality cables, insufficient power delivery.
- Solution: Use certified, high-wattage cables and chargers that match your device's requirements.
Overheating
- Symptoms: Cable or device becomes excessively hot.
- Causes: Damaged or low-quality cables, excessive power draw.
- Solution: Replace cables that overheat or show physical damage. Use only certified cables for high-power devices.
Compatibility Concerns
- Symptoms: Devices do not function as expected (e.g., no video output).
- Causes: Cable does not support required features.
- Solution: Check both device and cable specifications for compatibility. Use adapters or dedicated cables when necessary.
How to Choose the Right USB-C Cable
Choosing the right USB-C cable can be confusing, but following these steps can help:
1. Identify Your Needs:
- Do you need charging only, high-speed data transfer, or video output?
2. Check Device and Cable Specifications:
- Look for USB version, power rating, and Alt Mode support.
3. Buy Certified Cables:
- Look for USB-IF certification for safety and reliability.
4. Avoid Cheap, Unlabeled Cables:
- These may not meet safety or performance standards.
5. Consider Cable Length:
- Longer cables can introduce signal loss. Choose the shortest cable that meets your needs.
The Future of USB-C Cables
USB-C is continually evolving. The introduction of USB4 and 240W Power Delivery marks a significant leap forward, enabling new applications such as:
- Fast-charging high-performance laptops and workstations
- Supporting multiple 4K displays or a single 8K display
- Powering electric bikes and other high-demand devices
As the USB-C ecosystem matures, we can expect even greater compatibility, performance, and convenience. However, the need to understand cable specifications will remain essential as new features and standards are introduced.
Conclusion
USB-C cables may look identical on the outside, but their capabilities can vary dramatically. Understanding the differences in data speed, power delivery, and video support is crucial for getting the most from your devices and avoiding potential problems. Always check your cable's specifications, buy certified products, and match the cable to your device's needs for the best experience.
By staying informed and choosing wisely, you can enjoy the full benefits of USB-C's powerful, versatile technology.
FAQ: Top 5 Questions About USB-C Cables
1. Are all USB-C cables the same?
No. USB-C cables can differ in data speed, power delivery, and video support. Always check the cable's specifications before purchasing or using it.
2. Can I use any USB-C cable for charging my device?
Most USB-C cables will charge your device, but only those rated for higher power (with E-Marker chips) can safely and quickly charge laptops or high-powered devices.
3. How do I know if my USB-C cable supports video?
Only “full-featured” USB-C cables with Alt Mode support can transmit video. Check the product details or look for DisplayPort/HDMI/Thunderbolt compatibility.
4. What is an E-Marker chip in USB-C cables?
An E-Marker chip is a small electronic component in high-power USB-C cables (above 3A/60W) that communicates the cable's capabilities to your device, ensuring safe and optimal charging.
5. Why is my USB-C cable not working as expected?
It could be due to a mismatch between the cable's capabilities and your device's requirements, poor quality, or physical damage. Always match the cable to your device's needs and replace worn or uncertified cables.
Citations:
[1] https://www.ultraprolink.com/blogs/news/the-different-types-of-usb-type-c-cables-and-uses
[2] https://assets.tripplite.com/product-pdfs/en/u040c3mc5a.pdf
[3] https://www.cdw.com/content/cdw/en/articles/hardware/types-usb-cables.html
[4] https://www.cmd-ltd.com/advice-centre/usb-chargers-and-power-modules/usb-and-power-module-product-help/identifying-usb-connector/
[5] https://www.hollyland.com/blog/tips/do-all-usb-c-cables-support-video
[6] https://nassaunationalcable.com/blogs/infographics/usb-c-cable-color-code
[7] https://www.youtube.com/watch?v=hodoYOWu9xc
[8] https://iaohi.com/blogs/blog-on-website/the-10-questions-you-must-know-about-usb-c-cables
[9] https://www.dell.com/support/kbdoc/en-us/000141238/guide-to-usb-type-c
[10] https://learn.adafruit.com/understanding-usb-type-c-cable-types-pitfalls-and-more/cable-types-and-differences
[11] https://www.rndaccessories.com/blogs/cell-phone-accessory-news/troubleshooting-common-usb-c-issues
[12] https://en.wikipedia.org/wiki/USB-C
[13] https://kb.plugable.com/usb-c-cables/usb-type-c-cable-compatibility-length-and-features
[14] https://learn.adafruit.com/understanding-usb-type-c-cable-types-pitfalls-and-more/overview
[15] https://www.youtube.com/watch?v=-RUXs207L4Y
[16] https://uk.insight.com/content/dam/insight/EMEA/uk/shop/targus/USB-C_Infographic.pdf
[17] https://superuser.com/questions/1617036/is-there-a-right-or-wrong-way-to-plug-in-a-usb-c-cable
[18] https://www.seagate.com/support/kb/usb-c-connectivity-issues/
[19] https://www.belkin.com/company/blog/usb-cables-ultimate-guide/
[20] https://www.youtube.com/watch?v=mdwqZAkYWzQ
[21] https://paracable.com/blogs/articles/the-ultimate-guide-to-usb-c-charging-everything-you-need-to-know
[22] https://learn.adafruit.com/understanding-usb-type-c-cable-types-pitfalls-and-more/cable-types-and-differences
[23] https://www.pcworld.com/article/395115/the-best-usb-c-cables-for-charging-and-transferring-data.html
[24] https://www.reddit.com/r/UsbCHardware/comments/15d0r0t/how_many_kinds_of_usbc_to_usbc_cables_are_there/
[25] https://www.akitio.com/faq/356-are-all-usb-c-cables-the-same
[26] https://acroname.com/blog/types-usb-cables-not-all-usb-c-cables-are-created-equal
[27] https://www.cablestogo.com/tech/usb-c
[28] https://www.nytimes.com/wirecutter/reviews/best-usb-c-cables/
[29] https://www.usb.org/sites/default/files/USB%20Type-C%20Spec%20R2.0%20-%20August%202019.pdf
[30] https://www.anker.com/blogs/cables/how-to-identify-different-types-of-usb-cables-a-brief-guide
[31] https://learn.adafruit.com/understanding-usb-type-c-cable-types-pitfalls-and-more?view=all
[32] https://www.usb.org/usb-type-cr-cable-and-connector-specification
[33] https://www.pcmag.com/explainers/what-is-usb-c
[34] https://www.startech.com/en-fr/cables/usb315cc2m
[35] https://stock.adobe.com/search?k=usb+type+c+cable
[36] https://www.istockphoto.com/photos/usb-type-c-cable
[37] https://www.youtube.com/watch?v=UV57GTb6p8M
[38] https://business.sharpusa.com/Infographics/the-major-advantages-of-usb-c-connectors
[39] https://www.youtube.com/watch?v=Pg-pXSsgFKY
[40] https://stock.adobe.com/search?k=usb+c
[41] https://www.youtube.com/watch?v=2gTxzAh7f1M
[42] https://www.reddit.com/r/Infographics/comments/li3ol3/variations_of_usb_type_c_port/
[43] https://www.youtube.com/watch?v=ZrZISyPucMg
[44] https://support.microsoft.com/en-us/surface/frequently-asked-questions-about-usb-c-b9ddecf0-6637-2555-833a-6a9b6c9f444a
[45] https://www.datapro.net/techinfo/what_is_usb_type_c_usb_c.html
[46] https://www.reddit.com/r/UsbCHardware/comments/12osku8/is_there_any_difference_between_any_of_the_usbc/
[47] https://www.seagate.com/support/kb/frequently-asked-questions-about-usb-c-007759en/
[48] https://www.androidcentral.com/everything-you-need-know-about-usb-c
[49] https://support.anker.com/s/article/Anker-USB-C-to-USB-C-Cable-FAQ
[50] https://wandkey.com/usb-c-cable-not-work/
[51] https://www.anker.com/blogs/cables/are-all-usb-c-cables-the-same-for-charging
[52] https://www.reddit.com/r/UsbCHardware/comments/119bx6s/how_to_easily_tell_whether_a_usbc_cable_is/
[53] https://www.anker.com/blogs/hubs-and-docks/do-all-usb-c-cables-support-video
[54] https://plugable.com/blogs/news/understanding-usb-c-charging-issues
