USB cables are the lifeline of modern digital connectivity, powering everything from smartphones to external hard drives. While most people are familiar with the standard four-wire USB cable, many are surprised to discover that some USB cables—especially those used for advanced functions or specific devices—contain a fifth wire. This comprehensive article explores the roles, color codes, and technical purposes of each wire in a five-wire USB cable, complete with diagrams, videos, and answers to the most frequently asked questions.

Introduction to USB Cable Wiring

Universal Serial Bus (USB) technology has become the cornerstone of device connectivity and charging. At its core, a USB cable is a bundle of wires, each with a distinct function. Understanding these wires is essential for troubleshooting, custom cable creation, or simply satisfying your curiosity about how your devices communicate and receive power[3][5][8].

The Standard Four Wires in USB Cables

Most USB cables—especially those with Type-A or Type-B connectors—contain four wires. These are:

- VCC (Power/Red): Supplies +5V DC to the connected device.

- D- (Data Minus/White): Carries differential data signals.

- D+ (Data Plus/Green): Also carries differential data signals, complementing D-.

- GND (Ground/Black): Provides the electrical ground[3][5][8][14].

Diagram: Standard USB 2.0 Cable Wiring

Pin	Name	Color	Purpose
1	VCC	Red	+5V Power
2	D-	White	Data -
3	D+	Green	Data +
4	GND	Black	Ground

The Fifth Wire: Purpose and Applications

While four wires suffice for basic power and data transfer, certain USB cables—especially those used for advanced features—include a fifth wire. The fifth wire can serve different purposes depending on the USB standard and device requirements:

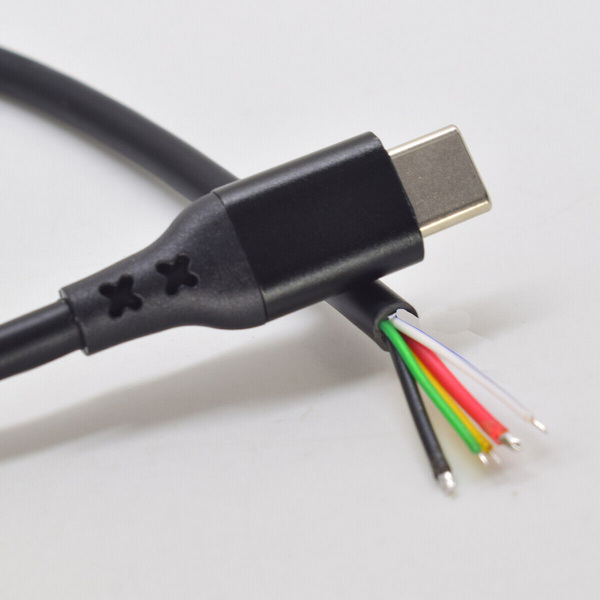

1. Configuration Channel (CC) in USB-C

- What is it?

In USB Type-C cables, the fifth wire is typically the Configuration Channel (CC). This wire is crucial for:

- Determining the role of connected devices (host vs. device)

- Detecting when devices are attached

- Allowing reversible plug orientation (Type-C's “flipability”)

- Negotiating power delivery up to 3A

- Signaling USB Power Delivery (PD) protocols[1][2]

- Where is it found?

The CC wire is present in USB-C to USB-C cables and is essential for full USB-C functionality. It is not found in legacy USB-A to USB-C cables, which only use four wires[1].

2. ID Pin in Micro-USB (OTG)

- What is it?

In Micro-USB On-The-Go (OTG) cables, the fifth wire is the ID pin. This pin enables OTG functionality, allowing a device like a smartphone to act as a host for peripherals such as keyboards or flash drives[9][12].

- Where is it found?

The ID wire is present in Micro-USB connectors and is typically used in OTG cables for mobile devices.

3. Shield or Drain Wire

- What is it?

Some five-wire USB cables include a shield or drain wire, which is used to ground the cable's shielding and reduce electromagnetic interference (EMI)[4][12].

- Where is it found?

This wire is often found in cables that require extra shielding or in some printer cables.

USB Cable Color Codes Explained

Understanding wire colors is critical for identifying their function. However, color codes can vary by manufacturer, so always verify with a multimeter or manufacturer documentation when in doubt[2][10][11].

Color	Typical Function
Red	+5V Power (VCC)
Black	Ground (GND)
White	Data - (D-)
Green	Data + (D+)
Blue	Configuration Channel (CC) / Shield / Data (varies)
Yellow	ID pin (OTG) / Shield / Data (varies)

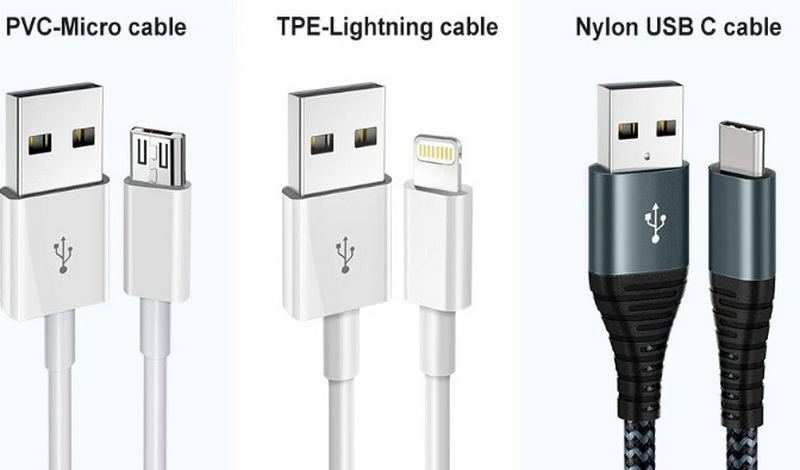

Types of USB Connectors and Their Wiring

USB Type-A and Type-B

- Number of Wires: 4

- Functions: Power and data transfer

- Common Uses: Computers, printers, external hard drives

USB Micro-B (OTG)

- Number of Wires: 5 (including ID pin)

- Functions: Power, data, OTG host/device role switching[9][12]

USB Type-C

- Number of Wires: Minimum 5 (including CC)

- Functions: Power, data, orientation detection, power delivery negotiation[1][2]

Conclusion

The five wires in a USB cable each play a vital role depending on the cable type and intended function. While the four standard wires—VCC, GND, D+, and D—handle power and data, the fifth wire enables advanced features such as device role negotiation (USB-C), OTG functionality (Micro-USB), or enhanced shielding. Understanding these wires, their color codes, and their applications is essential for anyone working with USB technology, whether for repair, customization, or simply to satisfy technical curiosity.

FAQ: Top 5 Related Questions and Answers

1. What are the standard functions of the four main wires in a USB cable?

- The four main wires are VCC (power), GND (ground), D+ (data plus), and D- (data minus). VCC and GND supply power, while D+ and D- handle data transmission[3][5][8][14].

2. What is the purpose of the fifth wire in a USB cable?

- The fifth wire can serve as a Configuration Channel (CC) in USB-C cables, an ID pin in Micro-USB OTG cables, or as a shield/drain wire for grounding and EMI protection[1][2][9][12].

3. How can I identify the wires inside a USB cable?

- Use the color coding as a guide: red (VCC), black (GND), white (D-), green (D+), and blue/yellow (fifth wire, varies by function). Always verify with a multimeter if unsure[2][10][11].

4. Can I use a five-wire USB cable with a device that only needs four wires?

- Yes, but the fifth wire will simply go unused unless the device or application specifically requires it (e.g., OTG or advanced USB-C features)[9][12].

5. Why do some USB cables have only two or three wires?

- Some cables are designed for charging only and omit the data wires, containing only power and ground, or sometimes a third wire for grounding or shielding[10].
