Views: 222 Author: Tina Publish Time: 2025-04-24 Origin: Site
Content Menu
● The Four Colored Wires: Overview and Functions
● Detailed Breakdown of Each Wire
● Visual Guide: Identifying USB Wire Colors
● USB Cable Variations and Exceptions
● Why Are USB Wires Color-Coded?
● The Evolution of USB Cable Standards
● Common Issues and Troubleshooting
>> Loose or Damaged Connectors
● Practical Applications and DIY Projects
● Safety Considerations When Handling USB Wires
>> 1. What happens if I connect the USB wires incorrectly?
>> 2. Are the wire colors the same in all USB cables?
>> 3. Can I use a USB cable with only two wires for charging?
>> 4. Why do some USB cables have more than four wires?
>> 5. How can I safely repair a broken USB cable?
USB cables are an essential part of our modern digital lives, serving as the backbone for connecting, charging, and transferring data between a vast array of devices. From smartphones and tablets to printers, cameras, and external hard drives, USB cables have become almost invisible in their ubiquity. Yet, for those who have ever attempted a repair, or simply wondered what makes these cables work, the colored wires inside a USB cable hold the answer. This comprehensive guide will delve deeply into the four colored wires found in a standard USB cable, exploring their functions, significance, variations, and practical tips for identification and troubleshooting.
Universal Serial Bus (USB) technology was introduced in the mid-1990s to standardize the connection of peripherals to personal computers. Over the years, USB has evolved from a simple data transfer protocol to a universal standard for charging, communication, and even video output. Despite the evolution of USB standards and the introduction of new connector types such as USB Type-C, the basic structure of a standard USB 2.0 cable remains unchanged: four internal wires, each with a specific color and function.
These four wires—red, black, white, and green—are the unsung heroes of USB technology. They work together to deliver power and facilitate data communication between devices, ensuring seamless operation for millions of users worldwide.

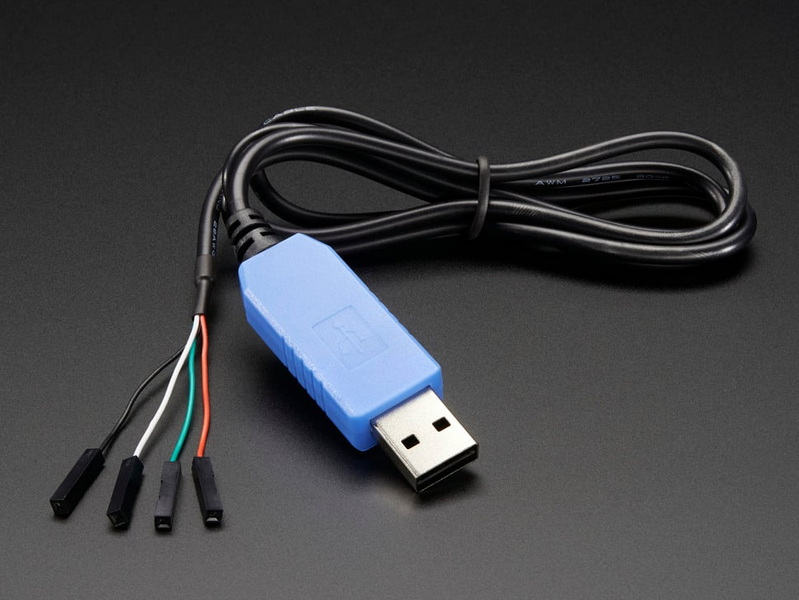

Inside a typical USB cable, you'll find four wires, each with its own color code and purpose. Here's a quick overview:
| Wire Color | Function | Standard Name | Typical Voltage/Signal |
|---|---|---|---|
| Red | Power (VCC) | VBUS | +5V DC |
| Black | Ground | GND | 0V |
| White | Data- | D- | Differential Data |
| Green | Data+ | D+ | Differential Data |
These wires are responsible for both powering devices and transferring data. The color coding is standardized to help manufacturers, technicians, and DIY enthusiasts correctly identify and connect the wires.
The red wire is responsible for supplying +5 volts of direct current (DC) to the connected device. This is the main power line in a USB cable, and it plays a crucial role in charging devices and powering peripherals. When you plug your smartphone into a USB charger, it's the red wire that delivers the electricity needed to recharge the battery. In most cases, the red wire is the thickest among the four, as it needs to carry enough current to power a variety of devices.
The black wire serves as the ground or return path for the electrical current. It completes the circuit, allowing electricity to flow safely and efficiently. Ground wires are essential for the safe operation of electronic devices, as they help prevent electrical faults and ensure that excess current is safely dissipated. In a USB cable, the black wire is as important as the red wire for both charging and data transfer.
The white wire carries the negative side of the differential data signal. Along with the green wire, it forms a pair that transmits data between devices and computers. In USB 2.0 and earlier standards, data transfer is achieved using a differential pair, where the white (D-) and green (D+) wires carry complementary signals. This method reduces interference and increases the reliability of data transmission.
The green wire carries the positive side of the differential data signal. It works in tandem with the white wire to enable two-way communication between devices. Whether you're transferring files, syncing your smartphone, or connecting a printer, the green and white wires are responsible for making sure your data gets where it needs to go.
When you strip back the outer insulation of a USB cable, you'll typically find four wires, each clearly colored for easy identification. The arrangement of these wires may vary slightly depending on the manufacturer, but the color codes remain consistent in standard-compliant cables. This visual consistency is crucial for repairs, modifications, and troubleshooting.
In addition to the four main wires, you may also notice a bare or silver wire, which acts as shielding. This shielding helps protect the data wires from electromagnetic interference, ensuring a stable and reliable connection.
While the four-wire system is standard for USB 2.0 cables, there are some important exceptions and variations to be aware of:
- USB 3.0 and Above: Newer USB standards, such as USB 3.0, USB 3.1, and USB Type-C, introduce additional wires to support higher data transfer rates and advanced features. For example, USB 3.0 cables include extra blue, orange, and white wires for SuperSpeed data transfer. However, the original four wires (red, black, white, green) remain present for backward compatibility.
- Alternate Color Codes: In some proprietary or non-standard cables, manufacturers may use different colors. For instance, you might encounter orange for power or blue for data. If you come across unfamiliar colors, it's best to consult the manufacturer's documentation or use a multimeter for verification.
- Mini and Micro USB: These connectors, commonly used for older smartphones and small devices, may include additional pins for device identification or special functions. Despite this, the core four wires are still present and perform the same fundamental roles.
Understanding these variations is essential for anyone working with USB cables, as it ensures compatibility and prevents accidental damage.
The color coding in USB cables is not arbitrary; it serves several important purposes:
- Safety: Color coding helps prevent accidental short circuits during repairs or DIY projects. By following the standard color scheme, users can avoid dangerous mistakes.
- Ease of Repair: When repairing or modifying a USB cable, the color codes make it easy to identify and reconnect the wires correctly.
- Standardization: The USB Implementers Forum (USB-IF) established these color codes to ensure compatibility across different brands and devices.
- Troubleshooting: Color coding allows users to quickly diagnose connectivity or charging issues by visually inspecting the wires.
Without standardized color codes, repairing or modifying USB cables would be far more difficult and error-prone.
USB technology has come a long way since its inception. The original USB 1.0 standard, introduced in 1996, supported data transfer rates of just 1.5 Mbps. USB 2.0, released in 2000, increased this to 480 Mbps and became the most widely adopted version.
With the introduction of USB 3.0 and beyond, data transfer rates soared to 5 Gbps and higher. USB Type-C, the latest connector standard, supports even faster speeds, greater power delivery, and reversible plug orientation. Despite these advancements, the basic four-wire configuration remains a fundamental part of USB cables, ensuring backward compatibility and universal functionality.
One of the most common problems with USB cables is physical damage to the wires. Over time, repeated bending, pulling, or twisting can cause the wires inside the cable to break or fray. If your USB cable stops working, a broken wire is a likely culprit. For example, if your device charges but doesn't transfer data, the issue may be with the white or green wire.
Mixing up the wires during a repair can damage your device or render the cable useless. Always match the colors correctly: red to red, black to black, white to white, and green to green. If you're unsure, consult a wiring diagram or use a multimeter to verify the connections.
Some USB cables include a silver shielding wire for electromagnetic protection. If present, this should be rewrapped after repairs to maintain signal integrity. Failure to do so can result in data errors or unreliable connections.
Another common issue is a loose or damaged USB connector. If the connector is wobbly or the cable only works when held at a certain angle, the internal wires may have become disconnected from the connector pins. In such cases, replacing the connector or the entire cable is often the best solution.
Understanding the four colored wires in a USB cable opens up a world of possibilities for DIY enthusiasts and makers. Here are a few practical applications:
- Custom Charging Cables: You can create custom-length charging cables by cutting and splicing USB cables, ensuring the red and black wires are properly connected.
- Data Blockers: If you want to charge your device without allowing data transfer (for security reasons), you can disconnect the white and green wires, creating a "charge-only" cable.
- Device Hacking: Many hobbyists repurpose USB cables to power small electronics, microcontrollers, or Raspberry Pi projects, taking advantage of the reliable 5V supply provided by the red wire.
When undertaking such projects, always follow safety guidelines and double-check your connections to avoid damaging your devices.
While USB cables operate at relatively low voltages, there are still important safety considerations to keep in mind:
- Avoid Short Circuits: Never allow the red (power) and black (ground) wires to touch, as this can cause a short circuit and potentially damage your power source or device.
- Insulate Exposed Wires: After making repairs or modifications, use electrical tape or heat-shrink tubing to insulate exposed wires and prevent accidental contact.
- Use Proper Tools: When stripping wires or soldering connections, use appropriate tools to avoid damaging the wires or injuring yourself.
- Test Before Use: After repairing or modifying a cable, test it with a low-value device before using it with expensive electronics.
By following these safety tips, you can confidently work with USB cables and enjoy the benefits of custom solutions.
Understanding the four colored wires inside a USB cable is essential for anyone interested in electronics, DIY repairs, or simply wanting to know how their devices work. The red, black, white, and green wires serve distinct and critical functions: delivering power, providing a ground, and enabling data transfer. While newer USB standards may introduce additional wires and features, these four remain the backbone of USB connectivity.
Whether you're troubleshooting a faulty cable, creating custom connections, or just satisfying your curiosity, knowing what each wire does—and how to identify it—can save time, prevent damage, and enhance your tech skills. As USB technology continues to evolve, the foundational knowledge of these four wires will remain relevant, empowering you to make informed decisions and tackle a wide range of projects with confidence.
Connecting the wires incorrectly can result in the device not working, data corruption, or even permanent damage to the device or computer. Always ensure the color codes match when repairing or assembling USB cables.
Most standard USB cables use red, black, white, and green, but some manufacturers may use alternate colors, especially in non-standard or proprietary cables. Always check the documentation or use a multimeter to confirm.
Yes, some USB cables designed solely for charging only have the red (power) and black (ground) wires. These cables cannot transfer data.
USB 3.0 and newer cables include additional wires for faster data transfer rates and advanced features, but the original four wires are still present for compatibility.
Cut away the damaged section, strip the outer insulation, and carefully match and reconnect the wires by color. Use electrical tape or heat-shrink tubing for insulation. If shielding is present, rewrap it after the repair.
