What Are The 3 Wires in A USB Cable?

Views: 222     Author: Tina     Publish Time: 2025-04-24      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Introduction

What Is a USB Cable?

Anatomy of a USB Cable: The Essential Wires

The Three Main Wires in a USB Cable: Color Codes and Functions

>> Standard USB Wire Color Codes

>> Functions of Each Wire

>>> What If There Are Only Three Wires?

USB Cable Variations: When Are There Only Three Wires?

>> Why Do Some USB Cables Have Only Three Wires?

>> Risks of Using Three-Wire USB Cables

The Importance of Proper USB Wiring

Visual Guide: USB Cable Wiring Diagrams and Color Codes

Practical Applications and Troubleshooting

>> Why Understanding USB Wires Matters

>> Common Issues with Three-Wire USB Cables

>> How to Diagnose USB Cable Issues

Real-World Scenarios: When Three Wires Matter

>> Scenario 1: DIY USB Projects

>> Scenario 2: Cable Repairs

>> Scenario 3: Identifying Faulty Cables

Safety Considerations and Best Practices

Conclusion

Frequently Asked Questions

>> 1. What do the colors of USB wires mean?

>> 2. Can a USB cable work with only three wires?

>> 3. Why do some USB cables only charge and not transfer data?

>> 4. How can I identify the USB version of my cable?

>> 5. What risks are associated with non-standard USB wiring?

Citations:

Introduction

Universal Serial Bus (USB) cables have become an essential part of our daily lives, connecting and powering a wide range of electronic devices. From charging smartphones to transferring files between computers and external drives, USB cables are everywhere. Despite their ubiquity, many people don't understand what goes on inside these seemingly simple cables. This article will delve deep into the anatomy of USB cables, focusing specifically on the three wires often found within, their color codes, functions, and why this knowledge matters for both casual users and electronics enthusiasts.

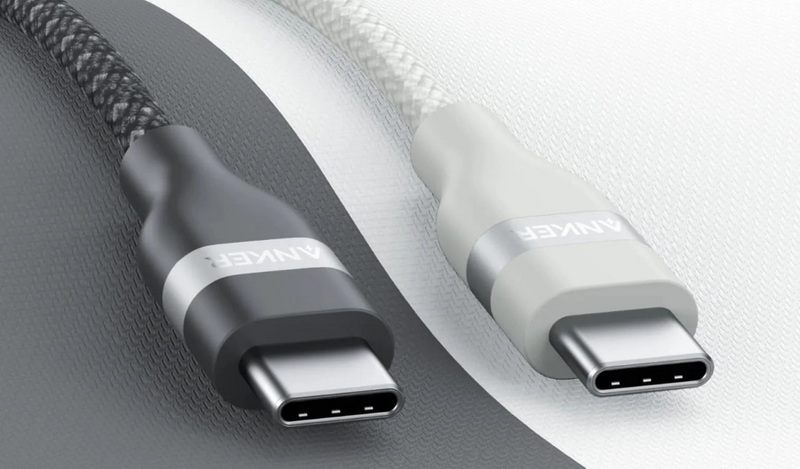

what are the 3 wires in a USB Cable

What Is a USB Cable?

A USB cable is a standardized cable designed to connect computers to peripheral devices such as printers, cameras, scanners, keyboards, and more. Its two primary functions are:

- Power Delivery: Supplying electrical power to devices, enabling charging and operation.

- Data Transfer: Facilitating communication and data exchange between devices and computers.

Since its introduction in the late 1990s, the USB standard has evolved to support faster data rates, higher power delivery, and a wider range of devices. Despite these advancements, the basic internal wiring of USB cables—especially USB 2.0 and earlier—remains largely unchanged.

Anatomy of a USB Cable: The Essential Wires

Most standard USB cables, particularly those conforming to USB 1.0, 1.1, and 2.0, contain four internal wires:

- VCC (Power, +5V)

- GND (Ground)

- D+ (Data Positive)

- D- (Data Negative)

Each of these wires plays a crucial role in ensuring the cable can deliver both power and data reliably. However, in certain situations, you may encounter USB cables with only three wires. Understanding the purpose and color coding of these wires is essential for safe and effective usage, especially when repairing cables or building custom connections.

The Three Main Wires in a USB Cable: Color Codes and Functions

Standard USB Wire Color Codes

Wire Color Function Description
Red VCC (+5V) Supplies power to the device
Black GND (Ground) Completes the electrical circuit
White Data- (D-) Differential data line (negative)
Green Data+ (D+) Differential data line (positive)

Note: In some three-wire USB cables, the ground wire may be omitted or combined with the cable's shield, leaving only the red, white, and green wires.

Functions of Each Wire

- Red (VCC, +5V): Carries positively-charged power (5 volts DC) from the host (e.g., a computer) to the device (e.g., a phone or keyboard).

- Black (GND): Acts as the ground or negative wire, completing the circuit for power delivery.

- White (Data- / D-): Transmits the negative side of the differential data signal during data transfer.

- Green (Data+ / D+): Transmits the positive side of the differential data signal during data transfer.

What If There Are Only Three Wires?

In some non-standard or cost-reduced USB cables, you may find only three wires: red, white, and green. In such cases, the ground connection may be provided by the cable's shield or omitted entirely, which is not compliant with the USB standard and may cause issues with device reliability.

USB Cable Variations: When Are There Only Three Wires?

Why Do Some USB Cables Have Only Three Wires?

- Cost Reduction: Some manufacturers eliminate the ground wire to save costs, relying on the cable shield for grounding, which is not recommended.

- Charging-Only Cables: Some cables designed solely for charging may omit the data wires or ground, but this can limit compatibility and safety.

- Non-Standard Designs: In rare cases, cables may be manufactured with only three wires for specific, low-power applications.

Risks of Using Three-Wire USB Cables

- Device Malfunction: Lack of a dedicated ground can cause data errors or device detection failures.

- Electrical Noise: Using the shield as ground can introduce interference, leading to unreliable connections.

- Potential Damage: Non-standard wiring may damage sensitive electronics or fail to meet USB compliance.

The Importance of Proper USB Wiring

Proper USB wiring is crucial for several reasons:

- Device Compatibility: Devices expect standard wiring for both power and data. Non-standard cables may not work or may work intermittently.

- Safety: Incorrect wiring can lead to short circuits, overheating, or even damage to connected devices.

- Performance: Reliable data transfer and charging depend on all wires being present and correctly connected.

When using or repairing USB cables, always ensure that the wiring matches the intended use and adheres to USB standards. For critical applications, always use cables from reputable manufacturers that fully comply with USB specifications.

USB Cable 3 Wire Function

Visual Guide: USB Cable Wiring Diagrams and Color Codes

A typical USB cable contains four wires, each with a specific color and function:

Pin Name Color Function
1 VCC Red +5V Power
2 D- White Data-
3 D+ Green Data+
4 GND Black Ground

In three-wire cables, the black (GND) wire may be omitted; the shield may serve as ground instead.

Understanding these color codes is essential for anyone attempting to repair or modify USB cables. Incorrect connections can lead to device malfunction or even permanent damage.

Practical Applications and Troubleshooting

Why Understanding USB Wires Matters

- DIY Repairs: Knowing which wire does what allows you to fix broken cables or create custom USB connections.

- Device Compatibility: Ensures proper power and data connections, preventing device malfunction.

- Safety: Prevents shorts and electrical hazards by ensuring correct wiring.

Common Issues with Three-Wire USB Cables

- Device Not Recognized: Missing ground can cause devices not to be detected by the host computer.

- Charging but No Data Transfer: If data wires are missing or not connected, the cable may only charge devices but not transfer data.

- Intermittent Connections: Using the shield as ground can lead to unreliable performance.

How to Diagnose USB Cable Issues

If you suspect your USB cable is not functioning correctly, consider the following steps:

1. Visual Inspection: Check for visible damage to the cable or connectors.

2. Continuity Testing: Use a multimeter to test each wire for continuity between both ends of the cable.

3. Check Color Codes: Ensure the wires are connected to the correct pins on both connectors.

4. Test with Multiple Devices: Try the cable with different devices to rule out device-specific issues.

Real-World Scenarios: When Three Wires Matter

Scenario 1: DIY USB Projects

If you're building a custom USB device or cable, knowing which wires are essential for your application is crucial. For simple charging circuits, only the power (red) and ground (black) wires may be necessary. For data transfer, all four wires are typically required.

Scenario 2: Cable Repairs

When repairing a broken USB cable, matching the color codes and ensuring all necessary wires are connected is vital. Omitting the ground wire, for example, may result in unreliable performance or device failure.

Scenario 3: Identifying Faulty Cables

If a device charges but does not transfer data, the cable may be missing one or both data wires. Conversely, if a device is not recognized at all, the ground wire may be missing or disconnected.

Safety Considerations and Best Practices

- Always Use Quality Cables: Cheap, non-standard cables may lack essential wires or use substandard materials, increasing the risk of failure or damage.

- Avoid Modifying Cables Unless Necessary: Modifying USB cables can be risky if you are not familiar with the wiring and standards.

- Check for Certification: Look for USB-IF certified cables to ensure compliance with USB standards.

- Dispose of Damaged Cables: Frayed or damaged cables can be a fire hazard and should be replaced immediately.

Conclusion

Understanding the three primary wires in a USB cable—typically red (VCC), white (D-), and green (D+)—is essential for anyone working with electronics, repairing devices, or simply curious about how everyday technology works. While standard USB cables include a fourth wire (black for ground), some cables may only have three, often for cost-saving reasons or in non-standard applications. Using such cables can result in unreliable performance and is not recommended for critical data transfer or charging needs.

Always check the wiring and color codes before attempting repairs or modifications, and use cables that adhere to USB standards for the best performance and safety. As USB technology continues to evolve, understanding these fundamentals will help you stay informed and make better decisions about the cables and devices you use every day.

USB Cable Internal Wire Purpose

Frequently Asked Questions

1. What do the colors of USB wires mean?

- Red: +5V power supply

- Black: Ground (GND)

- White: Data- (D-)

- Green: Data+ (D+)

2. Can a USB cable work with only three wires?

Technically, yes, but it is not recommended. Using only three wires (typically omitting ground) can cause device detection and data transfer issues, as USB standards require separate ground and shield connections.

3. Why do some USB cables only charge and not transfer data?

Charging-only cables may omit the data wires (white and green), leaving only power (red) and ground (black), or may not connect the data lines at all.

4. How can I identify the USB version of my cable?

USB 2.0 connectors often have white or black plastic inside, while USB 3.0 connectors are usually blue. The number of internal wires also differs, with USB 3.0 having more for higher speeds.

5. What risks are associated with non-standard USB wiring?

Non-standard wiring can cause device malfunction, unreliable connections, and even potential damage to devices due to improper grounding or power delivery.
