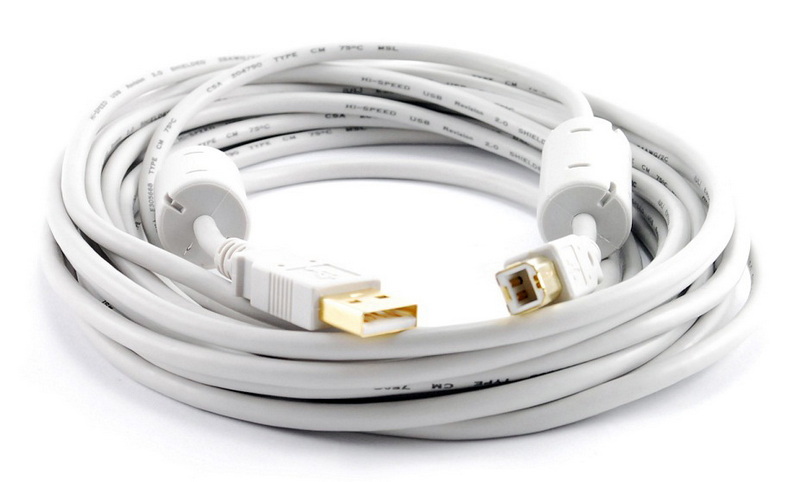

is USB Cable shielded

What Is USB Cable Shielding?

USB cable shielding refers to the use of a conductive barrier—typically made of metal foil, braided wire, or both—surrounding the internal wires of a USB cable. This barrier acts as a protective envelope, preventing electromagnetic interference (EMI) and radio frequency interference (RFI) from affecting the signals traveling through the cable.

Shielding is not unique to USB cables; it is a common feature in many types of data and power cables, including HDMI, Ethernet, and audio cables. However, with USB cables being so widely used for both data and power, the importance of shielding is particularly pronounced.

Why Is Shielding Important in USB Cables?

Shielding serves two primary functions:

- Protecting Data Integrity: It prevents external electromagnetic noise from corrupting the data signals within the cable, which is crucial for high-speed data transfer and sensitive equipment.

- Reducing EMI Emissions: It stops the cable itself from acting as an antenna and radiating electromagnetic noise into the environment, which can interfere with other devices and violate regulatory standards.

Without proper shielding, USB cables can become sources of interference, causing issues such as dropped connections, slow data transfer rates, or even malfunctioning devices. In environments with lots of electronic equipment—such as offices, studios, or factories—these problems can be magnified.

Types of Shielding Used in USB Cables

There are several common types of shielding used in USB cables, often combined for maximum effectiveness:

Shielding Type

Description

Coverage

Braided Shielding

Woven mesh of copper wires; flexible and durable

70–95%

Foil Shielding

Thin layer of aluminum or copper foil, often wrapped with overlap

Up to 100%

Spiral Shielding

Helically wrapped conductive material, used in smaller cables

Moderate

Dual Shielding

Combination of foil and braid for enhanced EMI/RFI protection

Maximum

Many high-quality USB cables employ both foil and braided shielding to maximize protection against both low-frequency and high-frequency interference.

Are All USB Cables Shielded?

No, not all USB cables are shielded by default. While the USB specification recommends shielding—especially for USB 2.0 and higher speeds—many low-cost cables on the market are unshielded or poorly shielded. This is particularly true for cables designed only for charging or for low-speed applications.

- USB 2.0 and above: Shielding is generally required by the standard, but not all manufacturers comply, especially with cheaper cables.

- Low-speed USB (1.1/2.0 at 1.5 Mbps): The standard allows unshielded cables for certain low-speed devices like mice and keyboards.

This means that consumers cannot simply assume that a cable labeled as "USB" will have adequate shielding. If you rely on stable, high-speed data transfer, it is important to verify the presence and quality of shielding.

Do USB Cables Have Shielding

How to Identify a Shielded USB Cable

You can often tell if a USB cable is shielded by:

- Connector Inspection: Shielded cables typically have metal-encased connectors that are electrically connected to the internal shield.

- Cable Thickness: Shielded cables are usually thicker and less flexible due to the extra layer(s) of metal.

- Product Specifications: Check packaging or manufacturer details for terms like "shielded," "braided," or "foil shield".

- DIY Inspection: Carefully cut open the cable (not recommended unless you don't need it intact) to look for metallic foil or braided wire surrounding the inner wires.

Some cables may also have visible markings or certifications (such as USB-IF compliance) that indicate proper shielding.

Benefits of Using Shielded USB Cables

1. Enhanced Signal Integrity

Shielding maintains the quality of the signal by reducing electromagnetic interference, minimizing signal degradation over longer distances, and ensuring consistent data transmission rates—especially important for high-speed USB 3.0 and above.

2. Improved EMI and RFI Protection

Shielded cables create a Faraday cage effect, absorbing and redirecting external electromagnetic signals, and preventing signal leakage from the cable itself.

3. Enhanced Durability and Longevity

The extra layer of shielding adds physical protection, making the cable more resistant to physical stress, strain, and environmental factors.

4. Reduced Crosstalk

Shielding helps isolate individual wire pairs, preventing interference between wires and maintaining signal clarity, which is crucial in environments with multiple cables.

5. Regulatory Compliance

Shielded cables are often necessary to meet FCC, CE, and other regulatory standards for electromagnetic emissions and susceptibility, especially in professional, medical, and industrial environments.

Common Applications for Shielded USB Cables

- Industrial Settings: Where heavy machinery generates significant EMI.

- Audio/Video Production: For high-quality, interference-free signal transmission.

- Medical Facilities: To protect sensitive diagnostic equipment.

- Data Centers: Ensuring reliable, high-speed data transfer.

- Automotive: In-vehicle entertainment and diagnostics exposed to electronic interference.

In these environments, the use of shielded cables is not just a matter of performance, but often a requirement for safety and regulatory compliance.

Are All USB Cables Shielded

Shielding and USB Standards

The USB 2.0 specification requires that cables include a shield—a stranded copper braid surrounding the conductors, connected to the plug shells at both ends. However, real-world compliance varies:

- USB 2.0/3.0/3.1: Shielding is required for full-speed and high-speed cables.

- USB 1.1/2.0 Low Speed: Unshielded cables may be allowed for some low-speed devices.

- Power-Only Cables: Often unshielded, but may cause EMI issues.

The USB Implementers Forum (USB-IF) provides compliance testing and certification for cables, but not all manufacturers seek or achieve this certification. As a result, the market contains a wide variety of cable qualities.

Myths and Misconceptions About USB Shielding

- Myth: Shielding only protects the cable from external interference.

Fact: Shielding also prevents the cable from emitting EMI that could disrupt other devices.

- Myth: All USB cables are shielded.

Fact: Many cheap or power-only cables lack proper shielding.

- Myth: Shielding always improves charging speed.

Fact: Shielding mainly affects data integrity and EMI, not direct power delivery.

Understanding these misconceptions can help consumers make better decisions when purchasing USB cables.

Visual Guide: Shielded vs. Unshielded USB Cables

A shielded USB cable typically contains a visible metallic layer, either as a foil wrap or a braided mesh, surrounding the inner wires. In contrast, an unshielded cable will have only the plastic insulation and the internal conductors, with no metallic protection.

The difference in construction is not always obvious from the outside, but shielded cables tend to be heavier and less flexible. The connectors on shielded cables are often fully metal, while unshielded cables may have plastic connectors.

The Science Behind Electromagnetic Interference (EMI)

Electromagnetic interference occurs when external electromagnetic fields disrupt the normal operation of electronic devices. USB cables, especially those carrying high-speed data, can both emit and receive EMI. This is particularly problematic in environments with lots of electronic equipment, such as offices, hospitals, or factories.

Shielding acts as a barrier, reflecting or absorbing unwanted electromagnetic energy. The effectiveness of shielding depends on the material, thickness, and construction of the shield, as well as how well it is grounded.

Shielding Materials and Construction Techniques

The most common materials for USB cable shielding are:

- Aluminum Foil: Offers nearly 100% coverage and is effective against high-frequency interference.

- Copper Braid: Provides flexibility and durability, and is effective against low-frequency interference.

- Combination (Dual Shielding): Many high-quality cables use both foil and braid to maximize protection.

The construction technique also matters. Overlapping foil wraps, tightly woven braids, and proper grounding at both ends of the cable all contribute to effective shielding.

How Shielding Impacts USB Cable Performance

Shielding is especially important for high-speed USB standards (USB 2.0, 3.0, 3.1, and above). As data rates increase, cables become more susceptible to interference, and even minor disruptions can lead to data loss, corruption, or device errors.

For example, USB 3.0 cables, which can transfer data at up to 5 Gbps, are particularly sensitive to EMI. Without adequate shielding, these cables may fail to achieve their rated speeds or may experience frequent disconnects.

In addition, shielding can help maintain signal quality over longer cable runs. While USB standards recommend maximum cable lengths (typically 5 meters for USB 2.0), high-quality shielded cables can sometimes exceed these lengths with minimal performance loss.

Choosing the Right USB Cable for Your Needs

When selecting a USB cable, consider the following:

- Intended Use: If you need reliable data transfer or are working in a high-EMI environment, choose a shielded cable.

- Cable Length: Longer cables are more susceptible to interference; shielding becomes more important as length increases.

- USB Standard: Higher-speed standards (USB 3.0 and above) require better shielding.

- Certification: Look for USB-IF certified cables for guaranteed compliance.

- Physical Durability: Shielded cables are often more robust and longer-lasting.

If you are simply charging a device in a low-EMI environment, an unshielded cable may suffice. However, for any application where data integrity or device reliability is important, a shielded cable is the better choice.

Conclusion

Shielding is a critical feature in USB cables, especially as data transfer speeds and electromagnetic noise in our environments continue to increase. While the USB specification requires shielding for most data cables, many inexpensive or power-only cables lack this protection, leading to potential data errors, device malfunctions, or regulatory compliance issues. Understanding the role and types of shielding, how to identify shielded cables, and their benefits can help you make informed choices—whether you're a consumer, professional, or engineer.

Types Of Shielding In USB Cables

Frequently Asked Questions (FAQ)

1. Are all USB cables shielded by default?

No. While the USB specification recommends shielding, many low-cost cables are unshielded or poorly shielded. Always check product details or inspect the cable if shielding is important for your application.

2. How can I tell if a USB cable is shielded?

Look for metal-encased connectors, thicker cable diameter, and product descriptions mentioning "shielded." For certainty, carefully cut open a cable to look for foil or braided metal around the inner wires.

3. Do shielded USB cables improve charging speed?

Not directly. Shielding mainly protects data integrity and reduces EMI. However, by maintaining optimal communication between device and charger, shielded cables can help ensure efficient charging, especially with advanced charging protocols.

4. Are shielded USB cables worth the extra cost?

For most everyday users, unshielded cables may suffice. However, in environments with high EMI, for professional equipment, or for high-speed data transfer, the benefits of shielded cables—performance, reliability, and compliance—often justify the additional expense.

5. Can shielded USB cables eliminate all interference?

No cable can eliminate all interference, but shielded cables significantly reduce EMI and RFI, improving data reliability and device performance. For maximum protection, use cables with both foil and braided shielding, and ensure proper grounding.
