Introduction
Universal Serial Bus (USB) technology has transformed the way we connect, power, and transfer data between devices. Since its inception in the mid-1990s, USB has undergone several evolutions, each bringing faster speeds and more robust capabilities. The introduction of USB 3.0, also known as SuperSpeed USB, marked a significant leap forward in performance. However, with new technology comes new questions—one of the most common being: Is a USB 3.0 cable backwards compatible with older USB versions?
This comprehensive guide will explain USB 3.0's backwards compatibility, how it works, what to expect in real-world scenarios, and how it compares to earlier USB standards. We'll also address practical concerns, provide expert tips, and answer frequently asked questions to ensure you get the most from your USB devices and cables.
What Is USB 3.0?
USB 3.0 was officially released in 2008, introducing substantial improvements over USB 2.0:
- Maximum Data Transfer Rate: Up to 5 Gbps (gigabits per second), which is over 10 times faster than USB 2.0's 480 Mbps.
- Increased Power Delivery: Up to 900 mA (milliamps) of current, compared to USB 2.0's 500 mA, enabling faster charging and support for more power-hungry devices.
- Additional Wires: USB 3.0 cables have nine wires instead of four, allowing for simultaneous data transfer in both directions (full-duplex communication).
- Enhanced Power Management: Improved protocols for device power management and energy efficiency.
These advancements made USB 3.0 the standard for external hard drives, flash drives, and other high-speed peripherals.
How Does USB 3.0 Achieve Backwards Compatibility?
Physical Compatibility
USB 3.0 Type-A connectors—the familiar rectangular plug—are designed to fit into USB 2.0 and USB 1.1 ports, and vice versa. This means you can plug a USB 3.0 cable into an older USB port without any physical issues. The blue color inside USB 3.0 ports and plugs is a visual cue, but the shape and size remain consistent.
Electrical Compatibility
USB 3.0 cables contain the four legacy wires used by USB 2.0 and USB 1.1 for data and power, in addition to five new wires for SuperSpeed data transfer. When a USB 3.0 cable is plugged into an older device or port, only the four legacy wires are used, ensuring that the connection works according to the older standard's specifications.
Speed and Power Limitation
The connection will always operate at the speed and power of the slowest component. For example:
- USB 3.0 cable + USB 2.0 port + USB 3.0 device = USB 2.0 speeds (up to 480 Mbps) and power (up to 500 mA)
- USB 3.0 cable + USB 3.0 port + USB 2.0 device = USB 2.0 speeds and power
This ensures universal compatibility while maintaining the best possible performance for each scenario.
USB 3.0 Cable Construction and Connector Types
Cable Construction
- USB 2.0 cables: Four wires (two for power, two for data)
- USB 3.0 cables: Nine wires (four for legacy support, five for SuperSpeed data and additional power)
The extra wires in USB 3.0 cables enable higher data transfer rates and improved power delivery, but do not interfere with legacy compatibility.

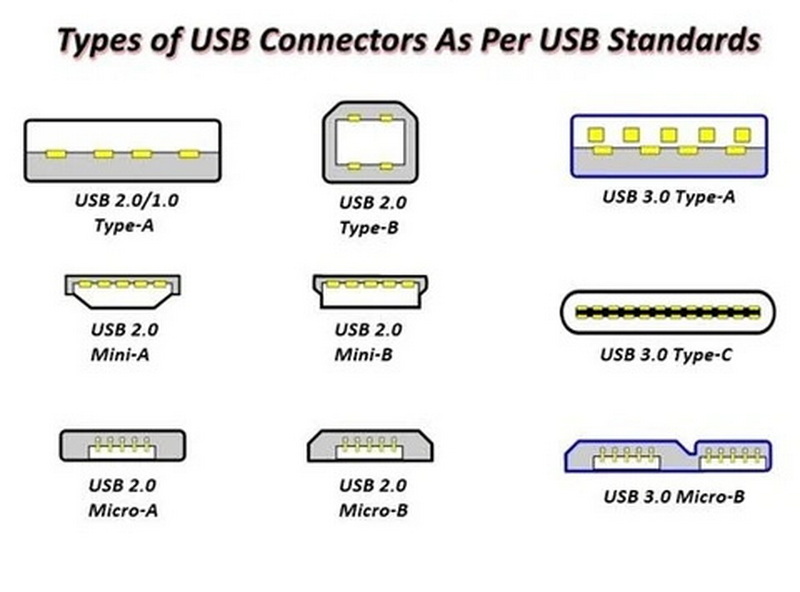

Connector Types and Compatibility
| Connector Type | Backward Compatible? | Notes |
| USB 3.0 Type-A | Yes | Fits in USB 2.0/1.1 Type-A ports |
| USB 3.0 Type-B | Partial | USB 2.0 Type-B plug fits in USB 3.0 Type-B port, but not the other way around |
| USB 3.0 Micro-B | Partial | USB 2.0 Micro-B plug fits in USB 3.0 Micro-B port, but not the other way around |
| USB 3.0 Type-C | Not directly | Type-C is a new reversible connector, not physically compatible with older connectors |
Understanding these differences is crucial when purchasing cables for specific devices.
Real-World Scenarios: What to Expect
Scenario 1: USB 3.0 Cable with a USB 2.0 Device
- Will it work? Yes.
- Speed: Limited to USB 2.0 speeds (up to 480 Mbps).
- Power: Limited to 500 mA, as per USB 2.0 standard.
Scenario 2: USB 2.0 Cable with a USB 3.0 Device
- Will it work? Yes, if the connector fits.
- Speed: Limited to USB 2.0 speeds.
- Power: Limited to what the cable and port can provide (usually 500 mA).
Scenario 3: USB 3.0 Device, Cable, and Port
- Will it work? Yes.
- Speed: Full USB 3.0 speeds (up to 5 Gbps) and power (up to 900 mA).
Scenario 4: USB 3.0 Cable with USB 1.1 Device
- Will it work? Yes.
- Speed: Limited to USB 1.1 speeds (up to 12 Mbps).
- Power: As per USB 1.1 standard.
Scenario 5: USB 3.0 Hub with Mixed Devices
A USB 3.0 hub can connect both USB 3.0 and USB 2.0 devices. Each device will operate at its maximum supported speed, but the hub's connection to the computer must also be USB 3.0 to achieve SuperSpeed performance for compatible devices.
USB 3.0 vs USB 2.0: Key Differences
| Feature | USB 2.0 | USB 3.0 |
| Max Data Rate | 480 Mbps | 5 Gbps |
| Max Power Output | 500 mA | 900 mA |
| Number of Wires | 4 | 9 |
| Cable Length Limit | 5 meters | 3 meters (for full speed) |
| Backward Compatible | N/A | Yes |
| Connector Color | Black or White | Blue |
These differences make USB 3.0 the preferred choice for high-speed data transfer and charging, while ensuring that older devices remain usable.
Practical Tips for Users
- Look for the blue color: USB 3.0 ports and plugs are usually blue inside to differentiate them from USB 2.0.
- Mix and match with confidence: You can use USB 3.0 cables with older devices and vice versa, but expect the connection to run at the speed of the slowest component.
- Check connector type: Some USB 3.0 connectors (especially Type-B and Micro-B) are physically different. Always check compatibility before purchasing cables.
- Power needs: If your device requires more power (like an external hard drive), use a USB 3.0 cable and port for best results.
- Cable length: USB 3.0 cables have a recommended maximum length of 3 meters for full-speed operation, shorter than USB 2.0's 5 meters.
- Use certified cables: For best performance and safety, always use certified USB 3.0 cables, especially for high-speed data transfer or charging.
Troubleshooting USB 3.0 Compatibility Issues
Common Problems
- Device not recognized: Ensure all components (device, cable, port) are properly connected and compatible.
- Slow transfer speeds: Check if any component is USB 2.0 or lower; the slowest component dictates the speed.
- Intermittent connection: Try a different cable or port, and ensure drivers are up to date.
- Insufficient power: Some external drives or devices may require a powered USB hub or direct connection to a USB 3.0 port.
Solutions
- Update drivers: Ensure your computer's USB 3.0 drivers are current.
- Use direct connections: Avoid using unpowered hubs for high-power devices.
- Replace faulty cables: Damaged or low-quality cables can cause connection issues.
- Check for dust/debris: Clean ports and connectors to ensure a solid connection.
The Evolution of USB: Looking Forward
USB technology continues to evolve. USB 3.1 and USB 3.2 offer even higher speeds (up to 20 Gbps), while USB4 and Thunderbolt 3/4 push boundaries further. However, the principle of backwards compatibility remains a cornerstone of USB design, ensuring that new devices can work with older hardware and vice versa.
This commitment to compatibility protects your investment in cables and devices, reducing electronic waste and making technology upgrades smoother and more affordable.
Conclusion
USB 3.0 cables and ports are designed for seamless backwards compatibility with older USB standards, ensuring that users can upgrade their hardware without losing access to their existing devices. While you can mix and match USB 3.0 and USB 2.0 components, the connection will always operate at the speed and power of the slowest link in the chain. Understanding these compatibility principles allows you to make informed choices about cables, devices, and ports, ensuring optimal performance and longevity for your tech investments.
Frequently Asked Questions (FAQ)
1. Can I use a USB 3.0 cable with a USB 2.0 device?
Yes, you can. The device will function normally, but data transfer will be limited to USB 2.0 speeds (up to 480 Mbps).
2. Will a USB 3.0 device work in a USB 2.0 port?
Yes. The device will work, but speeds and power will be limited to USB 2.0 levels.
3. Are all USB 3.0 connectors backwards compatible?
Most are, but not all. USB 3.0 Type-A connectors are fully backwards compatible. However, USB 3.0 Type-B and Micro-B connectors are physically different; you can use a USB 2.0 plug in a USB 3.0 port, but not the other way around.
4. Will I get USB 3.0 speeds if I use a USB 2.0 cable?
No. You must use a USB 3.0 cable, port, and device to achieve USB 3.0 speeds. Any USB 2.0 component will limit the connection to USB 2.0 speeds.
5. How can I tell if my port or cable is USB 3.0?
Look for the blue color inside the port or plug, or check for the "SS" (SuperSpeed) logo. USB 3.0 cables are often thicker due to the extra wires.
