Introduction

With the rapid evolution of digital devices, the lines between different cable standards have become increasingly blurred. The question "Is Thunderbolt cable the same as USB-C?" is more relevant than ever, especially as both cables share an identical connector shape and are widely used for charging, data transfer, and video output. However, despite their similar appearance, Thunderbolt and USB-C cables are not the same. This article delves deep into their differences, similarities, and practical implications, helping you make informed decisions for your tech setup.

What is USB-C?

USB-C, also known as USB Type-C, is a 24-pin, reversible connector introduced to replace older USB standards like Type-A and Type-B. Its primary purpose is to unify data transfer, charging, and video output into a single, compact, and user-friendly connector[4][7]. USB-C is now the standard for most modern smartphones, laptops, tablets, and even some monitors.

Features of USB-C

- Reversible Design: No more worrying about plug orientation.

- Versatile Protocol Support: Can carry USB, DisplayPort, HDMI, and even Thunderbolt signals.

- Power Delivery: Supports up to 240W of power output, making it suitable for charging everything from phones to laptops[5].

- Data Transfer Speeds: Varies by protocol—USB 2.0 (480 Mbps), USB 3.2 (up to 20 Gbps), and USB4 (up to 40 Gbps)[5][7].

What is Thunderbolt?

Thunderbolt is a high-speed hardware interface developed by Intel in collaboration with Apple. Originally using the Mini DisplayPort connector, Thunderbolt 3, 4, and 5 now use the USB-C connector, allowing for greater compatibility and functionality[5][6]. Thunderbolt cables are designed for ultra-fast data transfer, multi-display support, and high power delivery.

Features of Thunderbolt

- High Data Transfer Rates: Thunderbolt 3 and 4 support up to 40 Gbps; Thunderbolt 5 can reach up to 80/120 Gbps[5].

- Multi-Protocol Support: Handles PCIe, DisplayPort, USB, and power delivery.

- Daisy Chaining: Connect up to six devices in a single chain.

- Enhanced Video Output: Supports dual 4K or a single 8K display (Thunderbolt 4)[1][5].

- Device Protection: Includes advanced security and device management features.

Thunderbolt vs USB-C: Key Differences

Despite sharing the same physical connector, Thunderbolt and USB-C are fundamentally different in their capabilities and intended use cases.

Feature	USB-C	Thunderbolt 3/4/5
Connector Type	USB-C (24-pin)	USB-C (24-pin)
Data Transfer Speed	Up to 20 Gbps (USB 3.2), 40 Gbps (USB4)	Up to 40 Gbps (TB3/4), 80–120 Gbps (TB5)[5]
Power Delivery	Up to 240W	Up to 240W
Video Output	DisplayPort/HDMI via Alt Mode	Dual 4K or single 8K (TB4), more on TB5
Protocols Supported	USB, DisplayPort, HDMI, others	USB, PCIe, DisplayPort, Power Delivery
Daisy Chaining	Limited	Up to 6 devices
Cost	Generally less expensive	More expensive (proprietary tech)[1]
Identification	No special symbol	Lightning bolt symbol

Compatibility: Can You Mix and Match?

USB-C Cables in Thunderbolt Ports

- Yes, but with limitations: You can use a USB-C cable in a Thunderbolt port, but you will only get USB speeds and features, not the full Thunderbolt performance[1][2][5].

- No Thunderbolt features: Daisy chaining, ultra-fast data rates, and advanced video outputs will not be available.

Thunderbolt Cables in USB-C Ports

- Yes, but limited by the port: A Thunderbolt cable can be plugged into a USB-C port, but it will only function as a regular USB-C cable unless the port supports Thunderbolt[1][5][8].

- Backward compatibility: Thunderbolt cables are backward compatible with USB-C, but the performance is capped by the port's capabilities.

Use Cases: When to Choose Thunderbolt or USB-C

When to Use USB-C

- General charging: Phones, tablets, and most laptops.

- Standard data transfer: External hard drives, flash drives.

- Basic video output: Connecting to monitors via DisplayPort or HDMI adapters.

When to Use Thunderbolt

- Professional video editing: High-speed transfer of large files to and from external SSDs.

- Multiple high-resolution displays: Dual 4K or single 8K monitor setups.

- External GPUs: Gaming or creative workstations.

- Daisy chaining multiple devices: For streamlined, high-performance workflows.

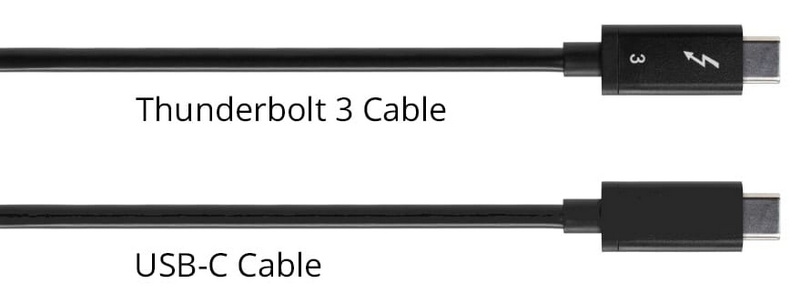

Visual Guide: How to Identify Each Cable

USB-C Cable

- No special markings

- May have USB logo or speed rating

- Usually cheaper

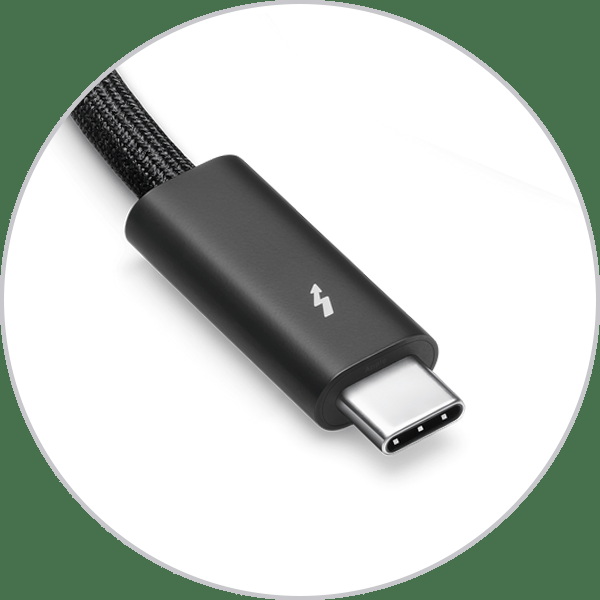

Thunderbolt Cable

- Lightning bolt symbol

- Often labeled with "3", "4", or "5" for the generation

- Usually thicker and more robust

- Higher price point

Conclusion

While Thunderbolt cables and USB-C cables look identical and share the same connector, they are not the same. USB-C refers to the physical connector and can support a wide range of protocols, including USB, DisplayPort, HDMI, and Thunderbolt. Thunderbolt, on the other hand, is a high-speed protocol that uses the USB-C connector for its latest versions and offers significantly higher data transfer rates, advanced video output, and daisy chaining capabilities[1][5][8].

FAQ: Key Questions Answered

1. Can I use a regular USB-C cable with a Thunderbolt device?

Yes, but you will only get USB speeds and features, not the full Thunderbolt performance. Thunderbolt-specific features like daisy chaining and ultra-fast data transfer will not be available[1][2][5].

2. How can I tell if my cable is Thunderbolt or just USB-C?

Look for the lightning bolt symbol on the cable or connector. Thunderbolt cables are also often labeled with the generation number (3, 4, or 5)[3][8].

3. Are Thunderbolt cables more expensive than USB-C cables?

Yes. Thunderbolt cables use more advanced technology and are proprietary, making them more expensive than standard USB-C cables[1][5].

4. Is Thunderbolt backward compatible with USB-C?

Thunderbolt 3, 4, and 5 cables are backward compatible with USB-C ports, but the performance is limited by the port's capabilities. You won't get Thunderbolt speeds or features unless both the cable and port support Thunderbolt[1][5][8].

5. What devices benefit most from Thunderbolt cables?

Devices that require high-speed data transfer, multi-display support, or daisy chaining—such as professional video editing setups, external GPUs, and advanced docking stations—benefit most from Thunderbolt cables[1][5][6].
