Introduction
In the world of modern technology, connectivity standards evolve rapidly, often causing confusion among users. One common question that arises is: Is a Thunderbolt cable the same as a USB-C cable? While these terms are sometimes used interchangeably, they represent different technologies with overlapping physical connectors but distinct capabilities. This article will explore the similarities and differences between Thunderbolt cables and USB-C cables, their uses, compatibility, and how to choose the right cable for your needs.
Understanding USB-C and Thunderbolt: Definitions and Basics
What is USB-C?
USB-C, or USB Type-C, is a physical connector standard characterized by its small, reversible design. It is used as a universal connector for data transfer, video output, and power delivery. USB-C supports multiple protocols including USB 2.0, USB 3.x, USB4, and can carry DisplayPort signals for video[7].
- USB-C is primarily about the shape and form factor of the connector.
- It supports power delivery (up to 100W), data transfer, and video output.
- USB-C cables vary widely in their capabilities, from simple charging cables to high-speed data transfer cables.
What is Thunderbolt?
Thunderbolt is a high-speed data transfer protocol developed by Intel in collaboration with Apple. It combines PCI Express (PCIe), DisplayPort, and USB protocols into a single connection. Thunderbolt 3 and Thunderbolt 4 use the USB-C connector but offer significantly enhanced performance.
- Thunderbolt supports up to 40 Gbps data transfer speeds, much faster than most USB-C cables.
- It can support dual 4K displays or a single 8K display.
- Thunderbolt cables provide high power delivery (up to 100W) and advanced features like PCIe expansion and DMA protection[5][7].
Key Differences Between Thunderbolt and USB-C
| Feature | USB-C | Thunderbolt (3 & 4) |
| Connector Type | USB-C physical connector | USB-C physical connector |
| Data Transfer Speed | Up to 20 Gbps (USB 3.2 Gen 2x2), 40 Gbps (USB4) | Up to 40 Gbps (guaranteed) |
| Video Support | Supports DisplayPort Alt Mode (single 4K) | Supports dual 4K or single 8K displays |
| Power Delivery | Up to 100W (varies by cable/device) | Up to 100W, with stricter minimum power requirements |
| Protocol Compatibility | USB protocols (USB 2.0, 3.x, USB4) | PCIe, DisplayPort, USB, and more |
| Cable Identification | Usually marked with USB symbol | Marked with Thunderbolt lightning bolt symbol |
| Backward Compatibility | Works with older USB devices | Compatible with USB-C devices but requires Thunderbolt-certified cables for full speed |
Summary: While USB-C is a connector type, Thunderbolt is a protocol that uses the USB-C connector but offers higher performance and additional features[1][4][5][7].
Can You Use a USB-C Cable Instead of a Thunderbolt Cable?
The short answer is sometimes yes, sometimes no depending on the use case:
- USB-C cables can be plugged into Thunderbolt ports and vice versa because they share the same connector shape[1][6].
- However, not all USB-C cables support Thunderbolt speeds or features. Many USB-C cables only support USB 3.x speeds (5-10 Gbps) and lack the internal wiring and certification for Thunderbolt's 40 Gbps speed and PCIe support[3][4].
- For basic tasks like charging or connecting USB peripherals, a USB-C cable will work fine in a Thunderbolt port but at USB speeds.
- For high-performance tasks such as connecting Thunderbolt displays, external GPUs, or fast external drives, you need a Thunderbolt-certified cable to achieve full performance[3][6].

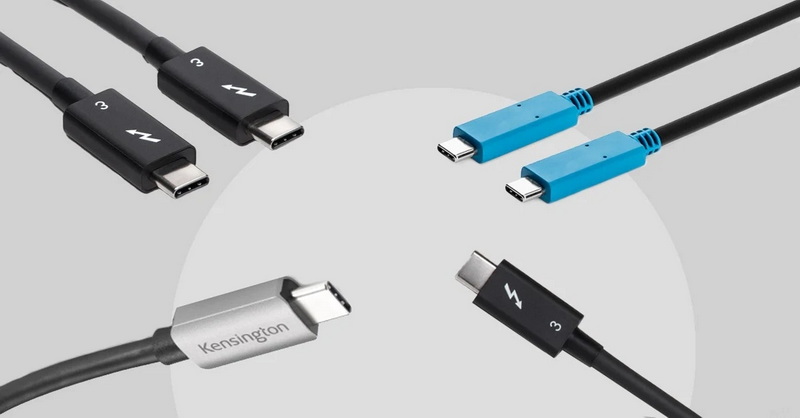

Visual Guide: Identifying Thunderbolt vs USB-C Cables and Ports
Thunderbolt Cable and Port
- Look for the lightning bolt symbol on the cable and port.
- Thunderbolt 3 and 4 cables have this symbol and support up to 40 Gbps.
- Thunderbolt cables are usually more expensive due to certification and performance.
USB-C Cable and Port
- Marked with the USB trident symbol or sometimes no symbol.
- Can vary widely in speed and power delivery.
- Some USB-C cables are only for charging (USB 2.0 speeds), while others support USB 3.x or USB4.
Practical Use Cases: When to Use Thunderbolt vs USB-C
Use Thunderbolt Cable When:
- You need ultra-fast data transfer (e.g., video editing, large file transfers).
- Connecting to Thunderbolt displays or docks.
- Using external GPUs or PCIe expansion devices.
- Wanting dual 4K or 8K display support.
- Ensuring maximum power delivery and security features.
Use USB-C Cable When:
- Charging devices or transferring files at moderate speeds.
- Connecting smartphones, tablets, or peripherals that only support USB.
- Using devices that do not require Thunderbolt's advanced features.
- Budget or cable availability is a concern.
Conclusion
In conclusion, Thunderbolt cables are not the same as USB-C cables, though they share the same USB-C connector shape. USB-C refers to the physical connector, while Thunderbolt is a high-speed protocol that uses this connector to deliver superior data transfer speeds, video capabilities, and power delivery. You can use USB-C cables in Thunderbolt ports for basic functions, but to unlock Thunderbolt's full potential, a certified Thunderbolt cable is essential. Understanding these differences helps you make informed decisions when purchasing cables or devices, ensuring compatibility and optimal performance.
Frequently Asked Questions (FAQs)
1. Is a Thunderbolt cable the same as a USB-C cable?
No. Thunderbolt cables use the USB-C connector but have different internal specifications and capabilities. Not all USB-C cables support Thunderbolt speeds or features[4][7].
2. Can I use a USB-C cable to connect a Thunderbolt device?
You can use a USB-C cable for basic connectivity, but to achieve full Thunderbolt performance (40 Gbps, PCIe support), you need a Thunderbolt-certified cable[3][6].
3. What are the speed differences between USB-C and Thunderbolt cables?
USB-C cables typically support up to 10 or 20 Gbps (USB 3.x or USB4), while Thunderbolt 3 and 4 cables support up to 40 Gbps consistently[1][5].
4. Do Thunderbolt cables support charging?
Yes, Thunderbolt cables support power delivery up to 100W, suitable for charging laptops and other devices[5].
5. How can I identify a Thunderbolt cable?
Thunderbolt cables and ports are marked with a lightning bolt symbol, distinguishing them from USB-C cables which usually have a USB trident symbol or no marking[5][7].
