Introduction
When it comes to charging our smartphones, tablets, laptops, and other electronic devices, the terms charger and USB cable are often used interchangeably by many people. But are they actually the same thing? This comprehensive article explores the distinctions between a charger and a USB cable, their functions, types, and how they work together to power your devices.
What Is a Charger?
A charger is a device that supplies electrical power to recharge the battery of an electronic device. It typically converts the alternating current (AC) from a wall outlet into a suitable direct current (DC) voltage and current for the device. Chargers come in various forms:
- Mains chargers (Wall chargers or AC adapters): Plug into a wall outlet and provide power through a USB port or directly via a cable.
- USB chargers: Devices that supply power through a USB port, such as those on computers, power banks, or car chargers.
The charger is essentially the power supply unit that provides the electricity needed to charge a device[7].
What Is a USB Cable?
A USB cable is a physical cable that connects devices for power delivery and/or data transfer. USB stands for Universal Serial Bus, a standard for cables and connectors used to connect, communicate, and supply power between computers and electronic devices.
USB cables come in different types and configurations:
- Charge-only cables: These cables carry electrical power only and do not support data transfer.
- Data cables (Charge and sync cables): These cables carry both power and data signals, allowing devices to charge and transfer data simultaneously[2][8][6].
Is a USB Cable a Charger?
Technically, a USB cable is not a charger. It is merely a conduit or medium that carries power from the charger (power supply) to the device, or data between devices. The charger is the actual power source, often a wall adapter or a USB port on a computer.
However, in everyday language, many people refer to the USB cable as a "charger" because it is the visible part they handle when charging their devices. This common misuse can cause confusion, but from a technical standpoint:
- The charger converts and supplies power.
- The USB cable transmits the power and/or data.
Some modern power outlets and devices have USB ports built-in, which blur the lines, but the distinction remains: the cable is not the power source itself[1].
Understanding USB Cable Types: Charge-Only vs. Data Cables
Internal Wiring Differences
The key difference between charge-only USB cables and data cables lies in their internal wiring:
| Wire Color | Function in Data Cable | Function in Charge-Only Cable |
| Red | Positive power (+5V) | Positive power (+5V) |
| Black | Ground (GND) | Ground (GND) |
| White | Data- | Not present |
| Green | Data+ | Not present |
Charge-only cables have just two wires for power delivery, while data cables have four wires to support both power and data transfer[2][8].
Physical Appearance and Testing
- Data cables tend to be slightly thicker due to extra wires.
- To test if a cable supports data transfer, connect a device to a computer. If the device is recognized and data can be transferred, it is a data cable. If not, it is likely a charge-only cable[2][8][6].

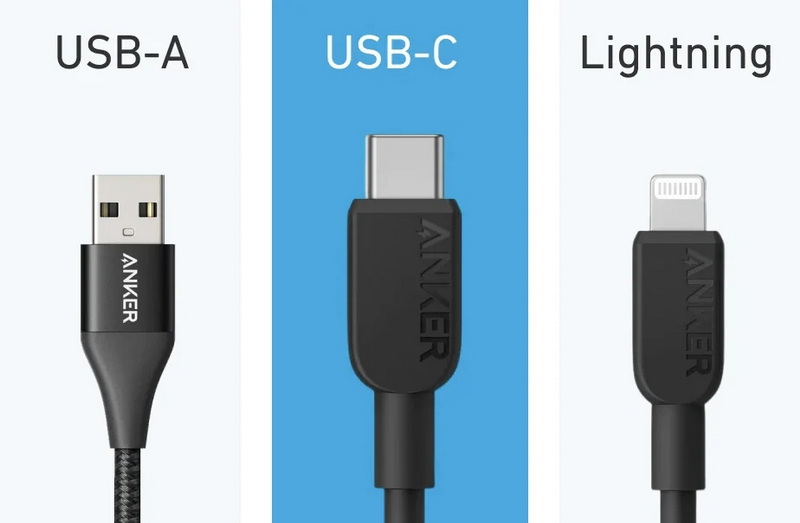

Types of USB Connectors and Their Roles
USB cables come with various connector types, each suited for different devices and purposes:
| USB Type | Description | Common Use |
| USB Type-A | Rectangular, standard USB connector | Computers, wall chargers |
| USB Type-B | Square-ish, mostly for printers, external drives | Printers, external hard drives |
| USB Mini | Smaller connector used in older devices | Older cameras, MP3 players |
| Micro-USB | Smaller than Mini, common in older smartphones | Older smartphones, tablets |
| USB Type-C | Reversible, supports high power and data rates | Modern smartphones, tablets, laptops |
USB Type-C is the latest and most versatile connector, supporting faster charging and data transfer, and is reversible for ease of use[4][5][9].
Chargers and USB Cables: How They Work Together
The Charging Process
1. Power Source: The charger (wall adapter or USB port) converts AC power to DC power suitable for your device.
2. Power Transmission: The USB cable transmits this power from the charger to the device.
3. Device Control: The device controls how much power it draws to prevent damage to the battery or itself.
For example, a Nintendo Switch charger uses USB-C but controls the charge rate internally, meaning you can safely use a standard USB-C phone charger with it, as the device regulates the power intake[3].
Charging Speed and Compatibility
- Mains chargers usually provide higher power and charge devices faster.
- USB chargers (like those on computers) provide less power and charge slower.
- USB cables must be compatible with the device and charger to support fast charging and data transfer.
- Using the wrong cable or charger can result in slow charging or no data transfer[7][10].
Conclusion
In summary, a charger and a USB cable are not the same thing. The charger is the power supply device that converts electricity from a wall outlet or USB port to a usable form for your device. The USB cable is the physical medium that carries this power and/or data between the charger and the device.
Understanding the distinction helps in choosing the right accessories for your devices, ensuring efficient charging and data transfer. Using the correct charger and cable combination can protect your device's battery, improve charging speed, and enable seamless data synchronization.
Related Questions and Answers
1. Can a USB cable be called a charger?
Technically, no. A USB cable is not a charger but a medium for power and data transfer. However, in everyday language, people often call the cable a charger out of habit[1].
2. How can I tell if my USB cable supports data transfer?
Connect your device to a computer using the cable. If the device is recognized and you can transfer files, it is a data cable. If not, it is likely a charge-only cable[2][8].
3. Are all USB-C chargers the same?
No. While USB-C refers to the connector type, chargers vary in power output and charging protocols. Devices control how much power they draw, so using a USB-C charger for different devices is usually safe but may charge at different speeds[3].
4. What is the difference between mains chargers and USB chargers?
Mains chargers plug into wall outlets and typically provide more power, charging devices faster. USB chargers draw power from USB ports on computers or other devices and usually provide less power, charging slower[7].
5. Why is my device not detected when connected to a computer via USB?
This often happens when using a charge-only USB cable that lacks data wires. To enable device detection and data transfer, use a data cable that supports both power and data[2][6].
