Wiring a USB cable correctly is essential for ensuring proper power delivery and data transfer between devices. Whether you are repairing a cable, creating a custom USB cable for a project, or just curious about how USB cables work, this detailed guide will walk you through the entire process. This article covers the basics of USB cable wiring, pinouts, tools needed, step-by-step instructions, and troubleshooting tips. It also includes visual aids and video references to help you understand the process better.
A USB (Universal Serial Bus) cable is a standard cable used to connect devices such as computers, smartphones, printers, and other peripherals. It carries both power and data signals. USB cables come in various types, including USB-A, USB-B, USB-C, Micro-USB, and Mini-USB, each with specific connectors and wiring schemes[1][7].

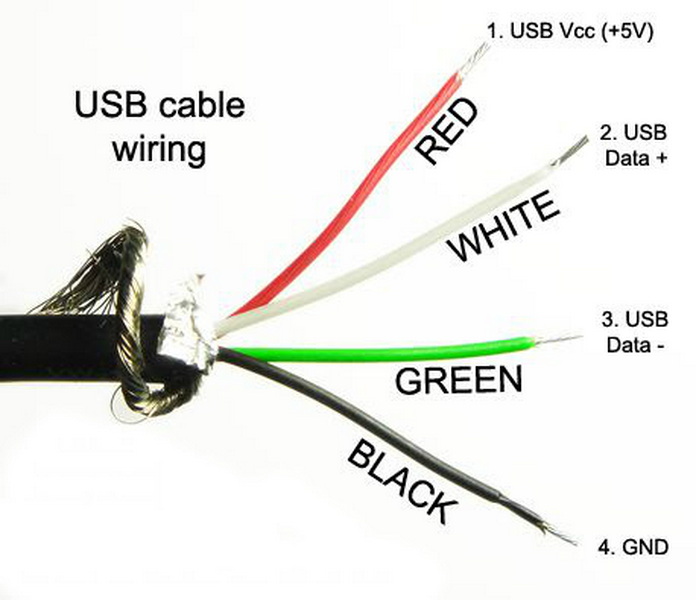

A typical USB cable contains four wires:
- Red wire: Carries +5V power (Vbus)
- Black wire: Ground (GND)
- White wire: Data- (D-)
- Green wire: Data+ (D+)
The red and black wires provide power, while the white and green wires handle data transmission[1][7][11].
USB cables have evolved over time, supporting different data transfer speeds and power capabilities:
USB Version | Data Transfer Speed | Power Delivery | Video Support |
---|---|---|---|
USB 1.1 | 12 Mbps | No | No |
USB 2.0 | 480 Mbps | Yes | No |
USB 3.0 | 5 Gbps | Yes | Yes |
USB 3.1 | 10 Gbps | Yes | Yes |
USB 4 | 40 Gbps | Yes | Yes |
Understanding the version helps in selecting the right cable and wiring method for your needs[7][10].
USB Type-A is the standard rectangular connector found on hosts like computers, while Type-B connectors are usually on devices like printers.
Pin Number | Wire Color | Function |
---|---|---|
1 | Red | +5V (Vbus) |
2 | White | Data- (D-) |
3 | Green | Data+ (D+) |
4 | Black | Ground (GND) |
The USB cable has four wires corresponding to these pins, with data wires twisted for noise reduction[1][12].
USB-C is a newer, reversible connector supporting higher power and data rates. The wiring is more complex, but for USB 2.0 compatibility, the key pins are:
USB-A Pin | USB-C Pin(s) | Wire Color | Function |
---|---|---|---|
1 | A4, B4, A9, B9 | Red | +5V (Vbus) |
2 | A7 | White | Data- (D-) |
3 | A6 | Green | Data+ (D+) |
4 | A1, B1, A12, B12 | Black | Ground (GND) |
NC | A5* | - | Configuration Channel 1 |
USB-C cables can handle different current levels, from 0.2A to over 2A for fast charging[5].
Before starting, gather the following tools and materials:
- USB cable or wires (appropriate gauge, typically 28 AWG for data, 20-28 AWG for power)
- USB connectors (Type-A, Type-B, Micro, Mini, or USB-C depending on your project)
- Wire stripper and cutter
- Soldering iron and solder
- Heat shrink tubing or electrical tape
- Multimeter for testing
- Tweezers (optional, for handling small wires)
- Splice connectors (optional for solder-less connections)

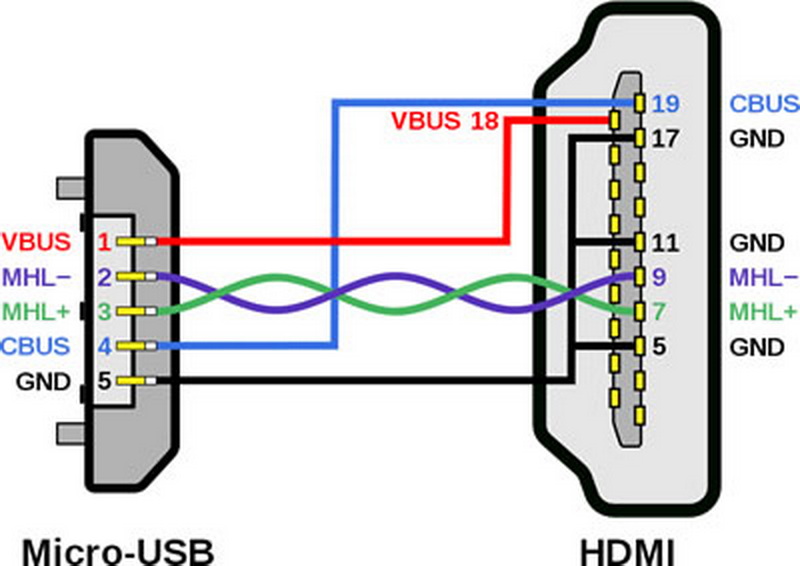

Determine the type of USB cable you are working with (USB-A, USB-B, USB-C, Micro-USB, etc.) and find the corresponding pinout diagram. This helps you know which wire goes to which pin[2][5].
Cut the USB cable to the desired length. Using a wire stripper, carefully remove the outer insulation to expose the four inner wires. Strip about 5-7 mm of insulation from each wire to prepare them for soldering or connection[8][11].
Apply a small amount of solder to the exposed wires (tinning) and to the connector pins. This process helps create a strong and reliable solder joint[3].
Using the pinout diagram, solder each wire to its corresponding pin on the USB connector. Keep the wires straight and minimize exposed wire length to prevent shorts. Use tweezers for precision if needed[3].
Once soldered, cover the solder joints with heat shrink tubing or electrical tape to insulate and protect the connections. If your connector has a housing, snap it back in place and secure it firmly[3].
Use a multimeter to check for continuity and correct wiring. Test the cable by connecting it to a device to ensure power and data transfer are working properly[9].
- Always use the correct wire gauge: thinner wires for data, thicker for power.
- Keep data wires twisted together to reduce electromagnetic interference.
- Minimize exposed wire length to prevent shorts.
- Use heat shrink tubing for durable insulation.
- Test the cable thoroughly before regular use.
- Follow the USB standard pinouts to ensure device compatibility.
Wiring a USB cable requires attention to detail, proper tools, and understanding of the USB standards. By following the steps outlined—identifying the cable type, stripping and tinning wires, soldering carefully, and testing—you can create or repair USB cables that reliably deliver power and data. Whether for DIY electronics projects or cable repairs, mastering USB wiring expands your technical skills and ensures your devices communicate effectively.
The four wires are red (+5V power), black (ground), white (Data-), and green (Data+). Red and black provide power, while white and green transmit data signals[1][7].
It's best to use wires with the correct gauge: 28 AWG for data lines and 20-28 AWG for power lines. Using improper wires can cause data loss or insufficient power delivery[12].
Refer to the USB connector pinout diagram for your cable type. The color coding is standardized: red to +5V, black to ground, white to Data-, and green to Data+[1][5].
Yes, twisting the Data+ and Data- wires reduces electromagnetic interference and ensures reliable data transmission[1][6].
Use a multimeter to check continuity and voltage on the power lines. Connect the cable to a device to verify data transfer and charging functionality[9].
