Introduction

The USB to RJ45 console cable is an essential tool for network administrators and IT professionals who need to configure, manage, or troubleshoot network devices such as routers, switches, and firewalls. This article will provide a detailed explanation of what a USB to RJ45 console cable is, how to use it effectively, troubleshooting tips, and answers to frequently asked questions. The content is structured with clear headings for easy navigation and includes references to helpful videos and images to enhance understanding.

What is a USB to RJ45 Console Cable?

A USB to RJ45 console cable is a specialized cable used to connect a computer's USB port to the console port (RJ45) of a network device. Unlike standard Ethernet cables, the RJ45 connector on a console cable has a unique pinout designed for serial communication rather than network data transfer. The USB end plugs into the computer, while the RJ45 end connects to the console port on devices like Cisco routers or switches. This cable facilitates direct command-line interface (CLI) access to the device for configuration and management purposes[3][8].

Why Use a USB to RJ45 Console Cable?

- Direct Device Access: Allows direct connection to network devices for configuration, firmware updates, and troubleshooting.

- Compatibility: Works with modern computers that may lack traditional serial ports but have USB ports.

- Cross-Platform Support: Compatible with Windows, Mac OS, and Linux operating systems.

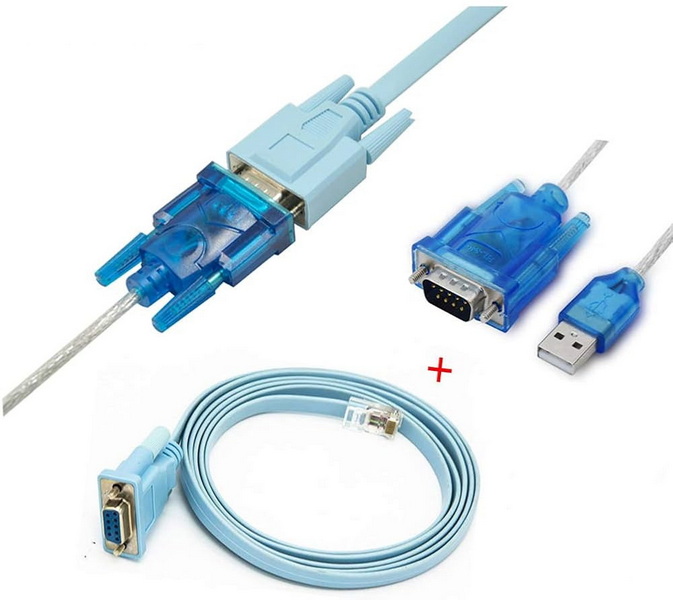

- Simplified Setup: Eliminates the need for additional adapters like USB-to-serial converters.

- Optimal Length: Typically around 1.8 meters, providing enough reach without excess clutter[3].

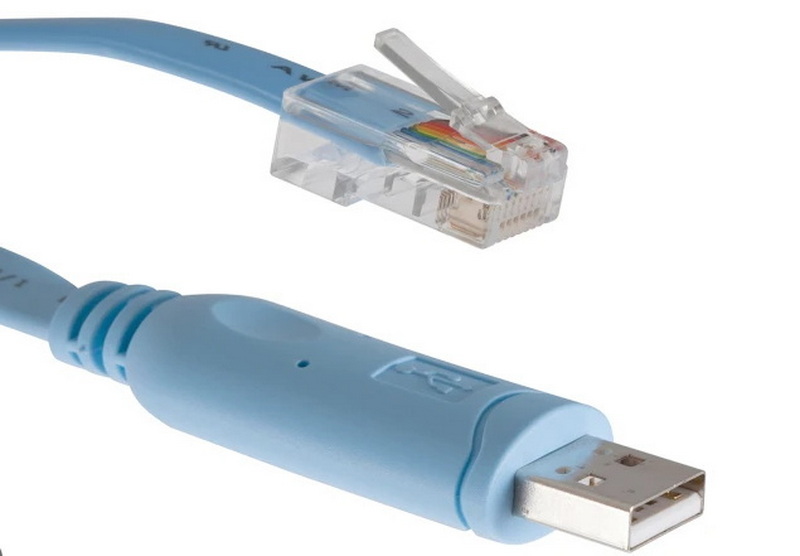

How to Identify a USB to RJ45 Console Cable

- One end has a USB Type-A connector (standard rectangular USB plug).

- The other end has an RJ45 connector labeled specifically for console use (not for Ethernet).

- The cable often has a flat design with a black PVC sheath.

- It may include chipsets like FTDI FT232RL for USB-to-serial conversion[1][8].

Step-by-Step Guide on How to Use a USB to RJ45 Console Cable

1. Prepare Your Equipment

- Ensure you have the USB to RJ45 console cable.

- Have a computer with a free USB port.

- Identify the console port on your network device (usually labeled "Console" or "CONSOLE").

2. Install Necessary Drivers

- Most USB to RJ45 console cables use FTDI or Silicon Labs chipsets.

- Download and install the appropriate drivers for your operating system from the chipset manufacturer's website or the cable provider.

- Reboot your computer if required to complete driver installation[1][2].

3. Connect the Cable

- Plug the RJ45 end into the console port of the network device.

- Insert the USB end into your computer's USB port.

- Confirm that the device is recognized by your computer (check Device Manager on Windows or use terminal commands on Linux/Mac).

4. Launch Terminal Emulation Software

- Use terminal programs like PuTTY, Tera Term, SecureCRT, or HyperTerminal.

- Configure the terminal session with the following typical settings:

- Baud rate: 9600 bps (unless device specifies otherwise)

- Data bits: 8

- Parity: None

- Stop bits: 1

- Flow control: None

5. Access the Device Console

- Open the terminal session with the correct COM port (check Device Manager for COM port number).

- You should see the device's CLI prompt.

- Begin your configuration or troubleshooting tasks.

Common Issues and Troubleshooting Tips

- Device Not Recognized: Make sure the correct drivers are installed and the cable is firmly connected to both ends[6].

- No COM Port Appears: Check Device Manager for unknown devices or manually update the driver to the correct chipset driver[6].

- Incorrect COM Port Settings: Verify baud rate, parity, stop bits, and flow control settings in the terminal software match the device's requirements[3].

- Using Wrong Port: Ensure you connect the RJ45 end to the console port, not a regular Ethernet port on the device[1][5].

- Cable Quality: Use high-quality cables from reputable brands like Cisco, Tripp Lite, or StarTech for better reliability[3].

Best Practices for Using USB to RJ45 Console Cables

- Always label your cables to avoid confusion with Ethernet cables.

- Use cable management tools to prevent tangling and damage.

- Keep drivers updated to avoid compatibility issues.

- Use official or certified cables for critical network devices.

- Regularly check cable integrity and replace if damaged.

Conclusion

The USB to RJ45 console cable is a vital tool for network management, providing a straightforward way to access the console ports of routers, switches, and other devices. By following the steps outlined—installing drivers, connecting the cable properly, and configuring terminal software—you can efficiently manage and troubleshoot network hardware. Understanding the differences between console cables and Ethernet cables, along with proper troubleshooting techniques, ensures smooth operation and reduces downtime. Investing in quality cables and keeping drivers updated maximizes reliability and performance.

Frequently Asked Questions (FAQs)

1. What is the difference between a USB to RJ45 console cable and a regular Ethernet cable?

A USB to RJ45 console cable has a unique pinout designed for serial communication to a device's console port, while a regular Ethernet cable is used for network data transfer. Connecting a console cable to an Ethernet port will not work and can cause confusion[3][9].

2. Can I use a USB to RJ45 console cable with devices other than Cisco?

Yes, many USB to RJ45 console cables are compatible with various network devices from brands like Juniper, Ubiquiti, and TP-Link, as long as the device has an RJ45 console port[3].

3. What should I do if my computer does not recognize the USB to RJ45 console cable?

Ensure the correct drivers are installed for the cable chipset (usually FTDI or Silicon Labs). Check Device Manager for unknown devices and manually update drivers if necessary. Also, confirm the cable is connected to the console port and the USB port properly[6][8].

4. Is there a standard length for USB to RJ45 console cables?

Most USB to RJ45 console cables are about 1.8 meters (6 feet) long, which balances convenience and minimizes signal loss. Longer cables may cause communication issues due to signal degradation[3].

5. Can I use the USB to RJ45 console cable on Linux or Mac OS?

Yes, these cables are generally compatible with Linux and Mac OS, but you may need to install appropriate drivers or verify device recognition using terminal commands[3].
