Using a USB extension cable is a simple yet effective way to increase the reach of your USB devices, allowing you to connect peripherals that are farther away from your computer or USB hub. This comprehensive guide will explain how to use USB extension cables, their types, benefits, limitations, and practical tips for optimal use. The article also includes frequently asked questions to help you troubleshoot common issues.

What Is a USB Extension Cable?

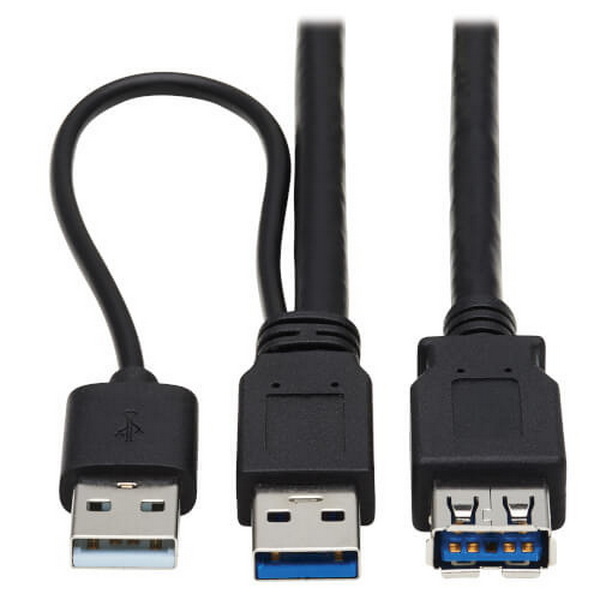

A USB extension cable is a cable with a male USB connector on one end and a female USB connector on the other. It acts as an intermediary to extend the length of an existing USB cable or device connection without losing signal quality or power (within limits). These cables are widely used to connect devices like keyboards, mice, printers, external hard drives, webcams, and more when the original USB cable is too short.

How to Use a USB Extension Cable

Step 1: Identify the Ends of the Extension Cable

- Male end: This end looks like a standard USB plug and is designed to be inserted into your computer, laptop, or USB hub.

- Female end: This end has a USB port where you plug in your USB device or the original USB cable.

Step 2: Connect the Male End to Your Computer or Hub

Insert the male end of the USB extension cable into an available USB port on your computer, laptop, or USB hub. Ensure it is firmly seated to avoid loose connections.

Step 3: Connect Your USB Device to the Female End

Plug your USB device (keyboard, mouse, printer, external hard drive, webcam, etc.) into the female end of the extension cable. If you are extending an existing USB cable, plug the original cable's male end into the female end of the extension cable.

Step 4: Power On and Verify Device Detection

If your USB device requires power, turn it on. Most peripherals will be recognized automatically by your computer once connected. You may hear a notification sound or see a pop-up confirming the device is ready to use.

Step 5: Optional - Use a Powered USB Hub or Active Extension Cable for Longer Distances

If you need to extend the USB connection beyond typical length limits (usually 5 meters for standard cables), consider using a powered USB hub or an active USB extension cable that amplifies the signal to prevent data loss.

Types of USB Extension Cables

Type	Description	Typical Max Length	Use Case Example
Passive USB Extension Cable	Simple cable with no signal amplification.	Up to 5 meters (16 feet)	Extending keyboard or mouse cables nearby
Active USB Extension Cable	Contains electronics to boost signal strength for longer distances.	Up to 10-15 meters (32-49 feet)	Extending webcams or external drives further away
USB Extender (with CATx cable)	Uses transmitter and receiver units connected by Ethernet cable for very long distances.	Up to 50 meters (164 feet) or more	Connecting peripherals across rooms or buildings
Wireless USB Extender	Uses wireless technology to extend USB connections without cables.	Varies, typically short range	Connecting devices wirelessly within a room

Benefits of Using USB Extension Cables

- Increased flexibility: Connect devices that are physically distant from your computer.

- Convenience: Avoid moving your computer or device closer just to connect peripherals.

- Cost-effective: Cheaper than buying longer USB devices or relocating hardware.

- Easy to use: No special tools or software needed; plug and play.

- Supports multiple devices: Some extension cables come with multiple USB ports.

Limitations and Considerations

- Maximum cable length: USB cables have length limits to maintain signal integrity. Passive cables typically max out at 5 meters; active cables can extend further.

- Power drop: Longer cables may reduce power delivery to devices, especially unpowered ones.

- Compatibility: USB 3.0/3.1 cables have shorter max lengths than USB 2.0 due to higher data rates.

- Quality matters: Use high-quality cables to avoid data loss or connection issues.

- Device sensitivity: Some devices (like webcams or external drives) are more sensitive to cable length and power issues.

How to Choose the Right USB Extension Cable

- Determine your distance needs: Measure how far your device is from the USB port.

- Check device power requirements: Devices needing more power may require active extension cables or powered hubs.

- Match USB version: Use USB 3.0 extension cables for USB 3.0 devices to maintain speed.

- Consider cable quality: Look for shielded cables with good build quality.

- Plan for future needs: If you anticipate moving devices, choose slightly longer cables or active extenders.

Practical Tips for Using USB Extension Cables

- Avoid daisy-chaining multiple extension cables as it can degrade signal quality.

- Use active extension cables or USB extenders for distances beyond 5 meters.

- If you experience connection issues, try using a powered USB hub to boost power.

- Keep cables away from sources of electromagnetic interference (like power cables).

- Test your setup with the device before finalizing cable placement.

Conclusion

USB extension cables are a practical and affordable solution to extend the reach of your USB devices, enhancing convenience and flexibility in your workspace or home setup. Understanding the types of extension cables, their length limitations, and proper usage ensures reliable connections and optimal device performance. Whether you need a simple 3-meter extension for a keyboard or a 50-meter extender for a remote camera, choosing the right cable and setup is key to success.

Frequently Asked Questions (FAQs)

1. How long can a USB extension cable be?

Passive USB cables typically support up to 5 meters (16 feet) without signal loss. Active extension cables can extend up to 10-15 meters (32-49 feet). For longer distances, USB extenders using CATx cables can reach up to 50 meters or more[1][6].

2. Can I use multiple USB extension cables together?

While possible, daisy-chaining multiple passive extension cables is not recommended as it can degrade signal quality and cause device malfunctions. Instead, use a single active extension cable or a USB hub for longer distances[6].

3. Do USB extension cables affect data transfer speed?

Yes, longer cables, especially passive ones, can reduce data transfer speeds and power delivery. Using USB 3.0 extension cables for USB 3.0 devices helps maintain high-speed transfers. Active cables also help preserve speed over longer distances[1][4].

4. Can I use a USB extension cable for charging devices?

Yes, USB extension cables can be used for charging, but longer cables may cause voltage drops, reducing charging efficiency. For charging high-power devices, use powered USB hubs or shorter cables[7].

5. How do I know if I need an active USB extension cable?

If your device is more than 5 meters away or you experience connection issues with a passive cable, an active extension cable or USB extender is recommended to boost the signal and power[1][6].
