Managing Cisco network devices such as switches and routers often requires direct console access for configuration, troubleshooting, and maintenance. The USB console cable is a vital tool that enables this direct connection between your computer and Cisco devices. This article provides an in-depth, step-by-step guide on how to use a USB console cable with Cisco devices, including setup, driver installation, terminal emulator configuration, troubleshooting, and best practices. It also includes visual aids and video resources to enhance understanding.
Introduction to USB Console Cables for Cisco Devices
A USB console cable is a specialized rollover cable that connects a computer's USB port to the console port of a Cisco device, typically an RJ45 port on switches or routers. This connection allows network administrators to access the device's command-line interface (CLI) for configuration and management without needing network connectivity.
Why Use a USB Console Cable?
- Direct Access: Provides local access to Cisco devices for initial setup or recovery.
- Compatibility: Works with modern laptops that lack traditional serial ports.
- Ease of Use: Simplifies connection with USB ports and eliminates the need for serial-to-USB adapters.
- Cross-Platform Support: Compatible with Windows, macOS, and Linux systems.
Step-by-Step Guide to Using a USB Console Cable with Cisco Devices
Step 1: Obtain the Correct USB Console Cable
Cisco USB console cables typically have a USB Type-A connector on one end and an RJ45 connector on the other. Some newer Cisco devices may require USB Type-C to RJ45 cables. Ensure the cable is compatible with your Cisco device model.
Step 2: Connect the Cable to Your Cisco Device and Computer

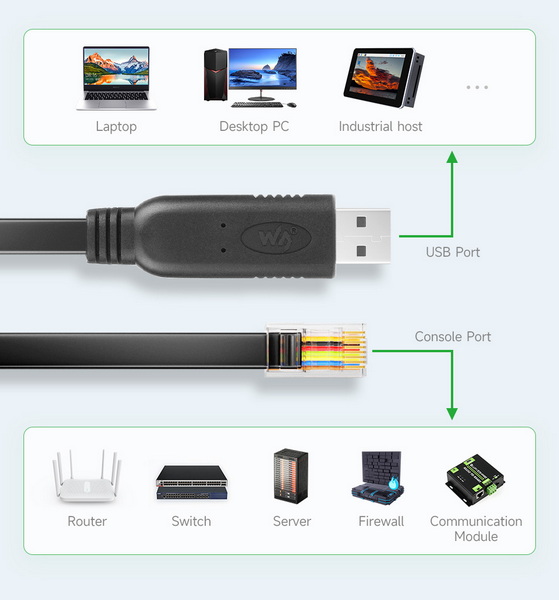

- Connect the RJ45 end of the console cable to the console port on the Cisco device. This port is usually labeled "Console" or "CON" and is often located on the front or back panel of the device.
- Connect the USB end of the cable to an available USB port on your computer.
Step 3: Install Necessary Drivers
Most modern operating systems automatically detect and install drivers for USB console cables. However, if your system does not recognize the cable, you will need to manually install the Cisco USB console drivers.
- Download drivers from the official Cisco website or the cable manufacturer's site.
- Install the driver by running the setup executable and following the installation wizard.
- Restart your computer if prompted.
Step 4: Identify the COM Port Assigned to the USB Console Cable
After connecting the cable and installing drivers, you need to find the COM port number assigned to the USB console cable.
On Windows:
- Open Device Manager.
- Expand the Ports (COM & LPT) section.
- Look for an entry like Cisco USB Serial Port (COMx), where "x" is the COM port number.
On macOS/Linux:
- Use terminal commands such as `ls /dev/tty.*` or `dmesg | grep USB` to identify the device.
Step 5: Open a Terminal Emulator and Configure Connection
To interact with the Cisco device, use terminal emulation software such as PuTTY, Tera Term, or the built-in Terminal on macOS/Linux.
- Launch the terminal emulator.
- Set the connection type to Serial.
- Enter the COM port number identified earlier.
- Configure serial connection settings:
- Baud rate: 9600
- Data bits: 8
- Parity: None
- Stop bits: 1
- Flow control: None
- Open the connection.
Step 6: Access the Cisco Device CLI
- Once connected, press Enter to see the device prompt.
- You can now enter commands to configure or troubleshoot the Cisco device.
- To enter privileged EXEC mode, type `enable` and provide the password if required.
Troubleshooting Common Issues
| Issue | Possible Cause | Solution |
| Device not recognized | Driver not installed or outdated | Install or update Cisco USB console drivers |
| COM port not found | Cable not connected properly | Reconnect cable and check Device Manager |
| Terminal shows no output | Incorrect COM port or settings | Verify COM port and serial settings |
| Connection drops or unstable | Faulty cable or USB port issues | Try a different cable or USB port |
| Access denied or no prompt | Device not powered on or booting | Ensure device is powered and booted |
Conclusion
Using a USB console cable to connect to Cisco devices is an essential skill for network administrators. It provides direct access to device configuration and troubleshooting without relying on network connectivity. By following the steps outlined—selecting the right cable, installing drivers, identifying the COM port, configuring terminal software, and troubleshooting common issues—you can efficiently manage Cisco switches and routers. Visual aids and video tutorials further simplify the learning process, making it accessible even for beginners.
Frequently Asked Questions (FAQs)
1. What is the typical baud rate for a Cisco USB console connection?
The default baud rate for Cisco console connections is 9600 baud with 8 data bits, no parity, 1 stop bit, and no flow control[2][3][10].
2. Do I need to install drivers for a USB console cable?
Most modern operating systems automatically install drivers, but if your system does not recognize the cable, you should download and install the official Cisco USB console drivers[3][6][10].
3. How do I identify the COM port used by my USB console cable?
On Windows, open Device Manager and look under "Ports (COM & LPT)" for "Cisco USB Serial Port (COMx)". On macOS/Linux, use terminal commands like `ls /dev/tty.*` or `dmesg | grep USB`[1][7].
4. What terminal emulator software can I use to connect to a Cisco switch?
Popular terminal emulators include PuTTY (Windows), Tera Term (Windows), and the built-in Terminal app on macOS and Linux[2][3][7].
5. Can I use a USB console cable on any Cisco device?
USB console cables are compatible with most Cisco routers and switches that have an RJ45 console port. However, some newer devices may require USB Type-C console cables. Always check your device documentation[3][4].
