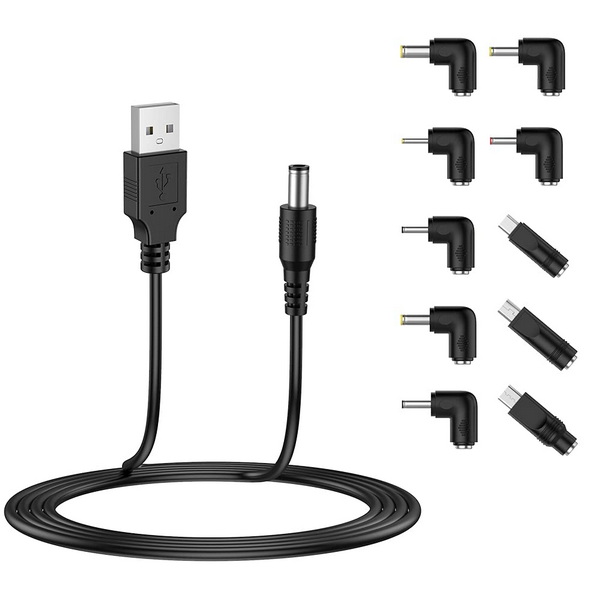

Using a USB cable as a power supply is a practical and versatile solution for powering small electronics projects, charging devices, or providing a stable 5V (or higher with USB Power Delivery) power source. This comprehensive guide will walk you through the process, explain the technical background, and provide tips, visuals, and videos to help you safely and effectively use USB cables as power supplies.

Understanding USB Power Supply Basics

USB (Universal Serial Bus) cables are ubiquitous and provide a convenient source of DC power. Originally designed for data transfer and low power delivery, USB standards have evolved to support higher currents and voltages.

- Standard USB Power: Traditional USB 2.0 ports supply 5V at up to 500mA (0.5A), while USB 3.0 ports can provide up to 900mA (0.9A).

- Modern USB Power: USB charging ports and USB Power Delivery (USB-PD) can supply 5V, 9V, 12V, 15V, or even 20V at currents up to 5A, enabling fast charging and powering more demanding devices[9][6].

- USB Cable Wires: Typically, USB cables have four wires: red (5V power), black (ground), white (data-), and green (data+). For power supply purposes, only the red and black wires are used[1][7].

How to Use a USB Cable as a Power Supply

Step 1: Identify and Prepare the USB Cable

- Select a USB cable you can sacrifice or repurpose.

- Cut the cable to the desired length.

- Strip the outer insulation carefully to expose the inner wires.

- Identify the red (positive, +5V) and black (ground) wires. The white and green wires are for data and can be cut off or ignored[1][7].

Step 2: Connect the Power Wires

- Strip the insulation from the red and black wires.

- Connect the red wire to the positive terminal of your device or breadboard power input.

- Connect the black wire to the ground terminal.

- Secure the connections with solder or splice connectors and insulate with electrical tape or heat shrink tubing for safety[4][7].

Step 3: Power Source

- Plug the USB cable into a USB power adapter, power bank, or computer USB port.

- Verify the output voltage with a multimeter to ensure it is around 5V (or the expected voltage if using USB-PD)[4][9].

Step 4: Testing

- Connect your device or project to the power supply.

- Check for proper operation and ensure no overheating or voltage drops occur.

- If powering a breadboard, you can add modular connectors for flexibility[1][10].

Advanced: Using USB Power Delivery (USB-PD) for Variable Voltage

USB-PD allows negotiation between the power source and device to supply voltages from 5V up to 20V at higher currents. This is useful for projects requiring more than 5V.

- Use a USB-C power adapter that supports USB-PD.

- Employ a USB-PD trigger module to request the desired voltage and current from the power supply.

- Connect the output of the trigger module to your device or project[6].

This method is more complex but provides a versatile and efficient power supply for a wide range of electronics.

Visual and Video Resources

Images

- USB cable internal wiring showing red and black power wires[1][7].

- Breadboard power supply setup using a USB cable[1][10].

- USB power adapters and cables[5].

Videos

- How to Make Your Own 5V USB Power Supply Cable (Solder-less method): Demonstrates cutting, stripping, and splicing USB cables to create a power supply cable[4].

- USB-PD: 5-20V Power for Your Projects: Explains USB Power Delivery and how to use trigger modules to get variable voltages[6].

- USB Cable to Breadboard Power Supply: Shows converting an old USB cable into a modular power supply for breadboard projects[10].

- Make USB Power Cable for Robotics Projects: Step-by-step guide to making a USB power cable for custom electronics[8].

Safety Tips and Considerations

- Always verify the voltage and current ratings of your USB power source to avoid damaging your device.

- Use a multimeter to check connections and output voltage before connecting your project.

- Avoid using USB cables with damaged insulation or exposed wires.

- When using USB-PD, ensure your trigger module and power supply are compatible.

- Do not exceed the current rating of the USB port or power adapter to prevent overheating or damage[3][9].

Conclusion

Using a USB cable as a power supply is a cost-effective and convenient way to power small electronics projects or devices. By understanding the USB cable wiring, preparing the cable properly, and selecting the right power source, you can create a reliable 5V power supply. For more advanced needs, USB Power Delivery offers variable voltages and higher currents, expanding the possibilities for your projects. Always prioritize safety by testing voltages and securing connections.

Frequently Asked Questions (FAQs)

1. Can I use any USB cable as a power supply cable?

Yes, most USB cables have the standard red and black wires for power and ground. However, ensure the cable is in good condition and the power source can supply the required current safely[1][7].

2. What voltage does a USB cable provide?

Standard USB cables provide 5 volts DC. With USB Power Delivery (USB-PD), voltages can range from 5V up to 20V depending on negotiation between the device and power source[6][9].

3. How much current can I draw from a USB power supply?

USB 2.0 ports typically provide up to 500mA, USB 3.0 up to 900mA, and USB charging ports or USB-PD can supply several amps (up to 5A). Always check your power source specifications[9][3].

4. Is it safe to cut and splice USB cables for power?

Yes, if done carefully with proper insulation and secure connections. Avoid exposing wires and ensure correct polarity to prevent short circuits or damage[4][7].

5. Can I use USB Power Delivery to get voltages other than 5V?

Yes, USB-PD allows you to select voltages like 9V, 12V, 15V, or 20V using a USB-C power adapter and a PD trigger module, which is ideal for powering more demanding electronics projects[6].
