Introduction to USB OTG
USB OTG (On-The-Go) technology allows devices to act as hosts, enabling them to connect directly to other USB devices without the need for a computer. This feature is particularly useful for mobile devices like smartphones and tablets, as it allows them to connect to USB peripherals such as keyboards, mice, flash drives, and even other phones. Understanding how to identify an OTG cable is crucial for utilizing this functionality effectively.
What is USB OTG?
USB OTG is a specification that enables USB devices to switch between host and peripheral modes. This means a device can either provide power and control (host mode) or receive power and data (peripheral mode). The most common connectors used in OTG cables are micro-USB and USB-C, which can connect to standard USB-A peripherals through adapters or specific OTG cables.
Identifying an OTG Cable
Identifying an OTG cable can be done through several methods:

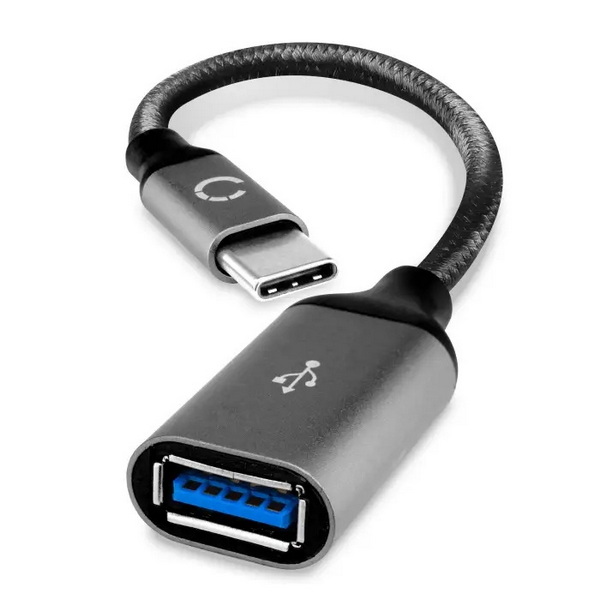

1. Physical Characteristics: OTG cables typically have a micro-USB or USB-C connector on one end and a standard USB-A female port on the other. They are often shorter than standard USB cables, usually ranging from 4 to 6 inches in length. This compact design makes them more convenient for mobile use.
2. Markings: Many OTG cables are labeled with "OTG" or have the OTG symbol printed on the connector or cable itself. This marking is a clear indicator that the cable supports OTG functionality.
3. ID Pin Configuration: The most definitive way to identify an OTG cable is by examining the ID pin. In a standard USB cable, the ID pin is not connected or "floating." In an OTG cable, the ID pin is connected to the ground, which signals the device to enter host mode. However, this internal wiring is not visible to the naked eye and requires disassembly to inspect.
4. Software Methods: If you're unsure whether your cable is OTG-compatible, you can use software methods to test it. There are several apps available on the Google Play Store that can check if your device and cable support OTG functionality. Another method is to try connecting a USB flash drive or keyboard to your mobile device using the cable; if it works, you have an OTG cable.
OTG Cable Construction
A typical OTG cable consists of a micro-USB or USB-C connector on one end and a standard USB-A female connector on the other. The cable itself has four wires: two for power (positive and negative), and two for data transfer (data+ and data-). The fifth pin, the ID pin, is used to determine whether the device should act as a host or peripheral. Understanding the internal wiring of an OTG cable is essential for creating or modifying one.
Making an OTG Cable
If you want to create your own OTG cable, you can do so by using a female standard USB connector and a male micro-USB connector. You will need thin insulated copper wires to connect the pins appropriately. The key step is to connect the ID pin to the ground pin to enable host mode. This process requires careful attention to detail and basic electronics knowledge.
Creating an OTG cable can be a fun DIY project, but it's crucial to ensure that the connections are secure and the cable is properly insulated to prevent electrical issues. If you're not comfortable with DIY electronics, purchasing a pre-made OTG cable is recommended.
Applications of OTG Technology
OTG technology has numerous applications, especially in mobile devices:
- Data Transfer: OTG allows you to connect flash drives or external hard drives to your smartphone or tablet, making it easy to transfer files without needing a computer. This is particularly useful for expanding storage or backing up data on the go.
- Peripheral Connection: You can connect keyboards, mice, and other USB peripherals to enhance productivity on mobile devices. This is especially beneficial for tasks that require more precise input than touchscreens can offer.
- Power Delivery: While OTG is primarily for data transfer, some devices may support charging through OTG connections, though this is not its primary function. However, using OTG for power delivery is less common and may not be supported by all devices.
Security Considerations
When using OTG cables, it's important to consider security. Connecting unknown USB devices can expose your device to malware or other security risks. Always ensure that the peripherals you connect are trusted and free from malware.
Future of OTG Technology
As technology advances, OTG capabilities are becoming more integrated into devices. With the advent of USB-C, which supports reversible connections and higher speeds, the need for specific OTG cables may decrease. However, the core functionality of OTG will remain crucial for device-to-device connections, especially in scenarios where a computer is not available.
Conclusion
In conclusion, identifying an OTG cable involves understanding its physical characteristics, markings, and internal wiring. OTG technology provides significant flexibility in connecting peripherals to mobile devices, enhancing their functionality beyond traditional roles. As technology advances, the distinctions between OTG and standard cables may become less pronounced, but the core functionality of OTG will remain crucial for device-to-device connections.
Frequently Asked Questions
1. How Do I Know If My Device Supports OTG?
To determine if your device supports OTG, you can use OTG checker apps available on the Google Play Store. These apps will indicate whether your device is compatible with OTG functionality.
2. Can Any USB Cable Be Used as an OTG Cable?
No, not all USB cables can be used as OTG cables. OTG cables have specific internal wiring, including a grounded ID pin, which allows devices to switch between host and peripheral modes.
3. What Are the Common Applications of OTG Cables?
OTG cables are commonly used for connecting flash drives, keyboards, mice, and other peripherals to mobile devices like smartphones and tablets.
4. How Do I Make an OTG Cable?
To make an OTG cable, you need a female USB connector, a male micro-USB connector, and thin insulated copper wires. The key step is connecting the ID pin to the ground to enable host mode.
5. Are OTG Cables Safe to Use?
OTG cables are generally safe to use, but there are potential risks such as exposing your device to malware when connecting unknown USB devices. Additionally, using OTG can drain your battery faster as your device provides power to the connected peripherals.
