Introduction to USB Cables and Disassembly
USB cables are ubiquitous in modern technology, connecting devices such as computers, smartphones, and peripherals. Understanding how to take apart a USB cable can be useful for repairs, modifications, or simply to explore the internal components. This article will guide you through the process of disassembling a USB cable, highlighting key steps and considerations.
Understanding USB Cable Structure
A typical USB cable consists of several components:
- Outer Jacket: The outermost layer that protects the inner wires.
- Inner Wires: These include the power (red), ground (black), and data wires (white and green for USB 2.0).
- Shielding: Some cables have additional shielding to reduce electromagnetic interference.
Tools Needed for Disassembly
To disassemble a USB cable, you will need:
- Wire Cutters: For cutting the cable.
- Wire Strippers: To strip the insulation from the wires.
- Soldering Iron and Solder: For repairing or reconnecting wires.
- Heat Shrink Tubing: To insulate soldered connections.
Step-by-Step Guide to Disassembling a USB Cable
Step 1: Cut the Cable
Identify the section of the cable you want to disassemble. Use wire cutters to cut the cable, ensuring you have enough length to work with. It's important to cut carefully to avoid damaging the inner wires.
Step 2: Remove the Outer Jacket
Use wire cutters or scissors to carefully cut along the length of the outer jacket without damaging the inner wires. This step requires patience to ensure the jacket is removed without causing any damage to the internal components.
Step 3: Expose the Inner Wires
Once the outer jacket is removed, you will see the inner wires. Use a wire stripper to strip the insulation from the ends of these wires. Be careful not to strip too much insulation, as this can lead to exposed wire and potential electrical issues.
Step 4: Identify and Separate Wires
Identify the different wires based on their colors:
- Red: Power (5V)
- Black: Ground
- White: Data-
- Green: Data+
Understanding the function of each wire is crucial for any repair or modification. For example, if you are experiencing issues with data transfer, checking the white and green wires for damage is a good starting point.
Step 5: Reassemble or Repair

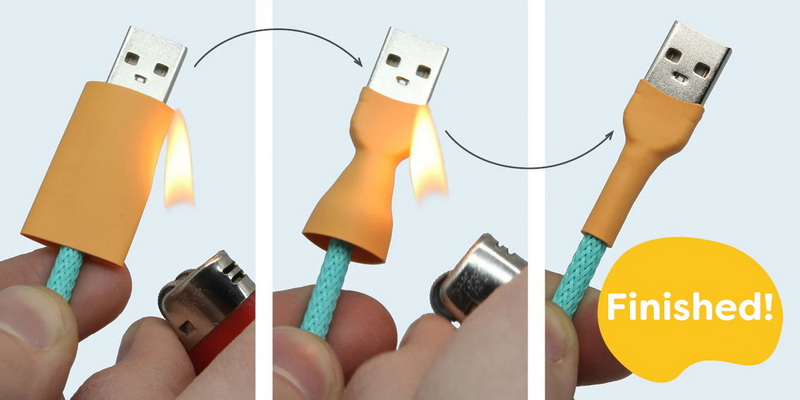

If you are repairing the cable, solder the wires together, ensuring like-colored wires are connected. Use heat shrink tubing to insulate the connections. This step is critical for maintaining the integrity of the cable and preventing electrical shorts.
Common Issues and Solutions
Repairing a Damaged Connector

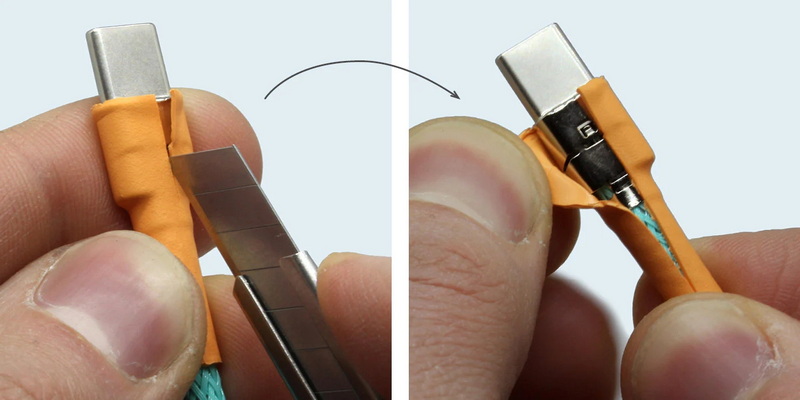

If the USB connector is damaged, you may need to replace it entirely. You can purchase replacement connectors online and solder them onto the cable. This process requires some soldering experience, but with the right tools, it can be a cost-effective way to extend the life of your cable.
Dealing with Shielding
If your cable has shielding, carefully unwrap it to expose the inner wires. After repairing, rewrap the shielding and use heat shrink tubing to secure it. Shielding is important for reducing electromagnetic interference, especially in environments with high levels of electrical activity.
Advanced Techniques for USB Cable Modification
For those interested in modifying their USB cables, there are several advanced techniques to explore:
Creating Custom Length Cables
If you need a USB cable of a specific length, you can cut and reassemble the cable to fit your needs. This is particularly useful for installations where standard cable lengths are not suitable.
Adding Additional Features
Some users may want to add features like USB hubs or additional power lines to their cables. This requires careful planning and execution to ensure compatibility and safety.
Improving Cable Durability
Using high-quality materials and techniques can significantly improve the durability of your USB cables. For example, using thicker gauge wire or reinforcing the cable with additional insulation can make it more resistant to wear and tear.
Safety Considerations
When working with electrical components, safety is paramount. Always ensure you are working in a well-ventilated area, and avoid touching electrical components with your bare hands. Static electricity can also damage sensitive electronics, so grounding yourself or using an anti-static wrist strap is advisable.
Conclusion
Disassembling a USB cable can be a straightforward process with the right tools and knowledge. Whether you're repairing a damaged cable or exploring its internal components, understanding how to take apart a USB cable is a valuable skill. Always ensure proper insulation and shielding to maintain the cable's functionality and safety.
Frequently Asked Questions
1. What Tools Do I Need to Disassemble a USB Cable?
You will need wire cutters, wire strippers, a soldering iron, solder, and heat shrink tubing.
2. How Do I Identify the Wires in a USB Cable?
The wires are typically colored: red for power, black for ground, white for data-, and green for data+.
3. Can I Twist Wires Together Instead of Soldering?
While twisting and taping wires can work temporarily, soldering provides a more reliable and durable connection.
4. How Do I Handle Shielding in a USB Cable?
Carefully unwrap the shielding to access the inner wires. After repairs, rewrap the shielding and secure it with heat shrink tubing.
5. Where Can I Buy Replacement USB Connectors?
Replacement connectors can be purchased from online retailers like AliExpress or Amazon.
