Introduction to Splicing USB Cables for Power

Splicing a USB cable for power involves connecting the power wires of two USB cables together to create a longer or modified cable. This can be useful for various projects, such as powering devices from a USB port or extending the reach of a USB connection. However, it requires careful attention to detail to ensure safety and reliability.

Why Splice a USB Cable?

Splicing a USB cable can be necessary for several reasons:

- Extending Cable Length: If you need to connect a device that is farther away from your power source than the standard USB cable length allows.

- Repairing Damaged Cables: If a USB cable is damaged but still has usable sections, splicing can help extend its life.

- Creating Custom Power Solutions: For DIY projects that require custom power delivery, such as powering Arduino boards or other small electronics.

Step-by-Step Guide to Splicing a USB Cable for Power

Step 1: Gather Materials

To splice a USB cable, you will need:

- USB Cables: Two USB cables, one of which will be used as the power source.

- Wire Cutters: For cutting the USB cables.

- Wire Stripper: To remove insulation from the wires.

- Splice Connectors or Soldering Iron: For connecting the wires securely.

- Electrical Tape or Heat Shrink Tubing: For insulation.

- Multimeter: To test the connection.

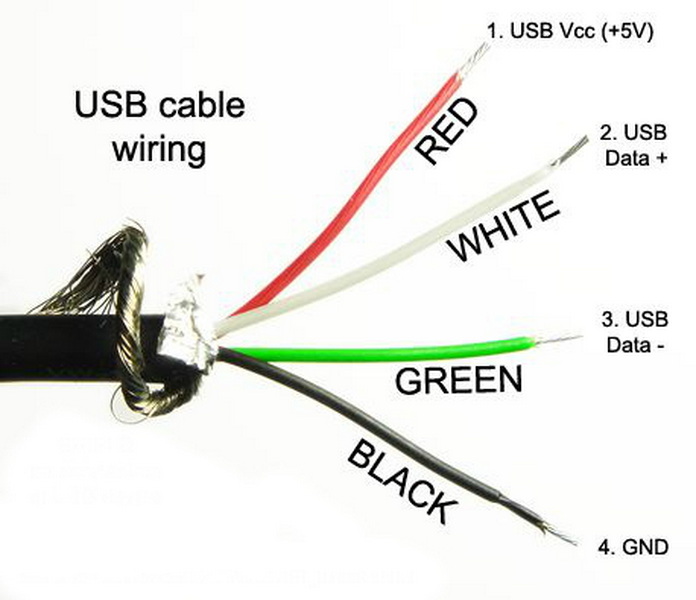

Step 2: Identify Power Wires

USB cables typically have four wires:

- Red: Power (5V)

- Black: Ground

- White and Green: Data wires (not needed for power-only connections)

Identify and isolate the red and black wires from each cable.

Step 3: Strip and Prepare Wires

Use a wire stripper to remove about 0.5 inches of insulation from the ends of the red and black wires.

Step 4: Connect Wires

You can either solder the wires together for a more permanent connection or use splice connectors for a solder-less option.

Option A: Soldering

1. Twist Wires Together: Twist the corresponding red and black wires from each cable.

2. Apply Solder: Use a soldering iron to join the wires securely.

3. Insulate: Wrap with heat shrink tubing or electrical tape.

Soldering is the most reliable method for creating a strong and durable connection. However, it requires some skill and can be less flexible than other methods. Over time, solder joints can crack if the cable is frequently bent, so it's important to ensure the connection is well-supported.

Option B: Using Splice Connectors

1. Insert Wires: Place the stripped ends of the wires into a splice connector.

2. Secure Connection: Use pliers to secure the wires in the connector.

3. Insulate: Wrap with electrical tape.

Splice connectors provide a quick and easy way to connect wires without soldering. They are ideal for temporary or non-critical applications but may not be as reliable as soldered connections.

Step 5: Test the Connection

Use a multimeter to ensure you are getting 5V across the connected wires.

Testing with a multimeter is crucial to verify that the splice is successful and safe to use.

Safety Considerations

When splicing USB cables, safety is crucial:

- Use Insulated Gloves: Protect yourself from electrical shock.

- Work in a Well-Ventilated Area: Avoid inhaling solder fumes.

- Avoid Overheating: Use a soldering iron carefully to prevent damage to components.

Alternatives to Splicing

While splicing can be useful, there are safer and more reliable alternatives:

- USB Couplers: Allow you to connect two USB cables together without splicing.

- USB Extension Cables: Extend the reach of your USB connection without modifying cables.

- USB Hubs: Connect multiple devices to a single USB port.

Common Issues and Troubleshooting

- Weak Connections: Ensure wires are securely connected and insulated.

- Data Loss: If splicing affects data transfer, consider using a coupler or extension instead.

Splicing USB-C Cables

USB-C cables have a more complex structure than traditional USB cables, with additional lines for data and configuration channels. When splicing a USB-C cable, it's essential to match the correct wires:

- Red (VBUS): Power

- Green (D+) and White (D-): Data

- Black (GND): Ground

Splicing a USB-C cable requires careful attention to detail to ensure that all connections are secure and properly insulated. Use a soldering iron for reliable connections and heat shrink tubing for insulation.

Advanced Techniques: NASA-Style Splicing

For more robust and professional splices, consider using techniques inspired by aerospace engineering. This involves twisting wires into a U-shape, joining them securely, and then insulating with heat shrink tubing. While this method is more time-consuming, it provides a highly reliable connection suitable for critical applications.

Conclusion

Splicing a USB cable for power can be a practical solution for extending cable length or creating custom power solutions. However, it requires careful attention to detail and adherence to safety protocols to ensure a reliable connection. Always consider using safer alternatives like USB couplers or extension cables when possible.

Frequently Asked Questions

1. Is it Safe to Splice USB Cables?

Splicing USB cables can be safe if done correctly, especially for low-voltage applications like USB. However, incorrect splicing can lead to connection issues or device damage.

2. What Tools Are Needed to Splice a USB Cable?

You will need wire cutters, a wire stripper, splice connectors or a soldering iron, electrical tape or heat shrink tubing, and a multimeter.

3. How Do I Match the Wires When Splicing?

Match the red wires (power) and black wires (ground) from each cable. The white and green wires are for data and are not needed for power-only connections.

4. Can I Use Electrical Tape Instead of Soldering?

While electrical tape can be used to insulate connections, soldering provides a more reliable and permanent bond. However, for temporary fixes or non-critical applications, twisting and taping can suffice.

5. What Are the Risks of Incorrectly Splicing a USB Cable?

Incorrect splicing can lead to short circuits, data loss, or damage to connected devices. Always ensure proper insulation and secure connections.

6. How Do I Insulate the Splice After Soldering?

Use heat shrink tubing for each connection and wrap electrical tape around the entire splice area for added protection.

7. Why Is It Important to Test the Cable After Splicing?

Testing ensures that the splice is secure and there are no shorts or breaks in the cable. Use a multimeter to check continuity and perform a tug test to verify the connection's strength.

8. Can I Splice a USB-C Cable?

Yes, you can splice a USB-C cable, but it requires careful matching of the internal wires and proper insulation to maintain functionality.

9. What Are the Benefits of Using Splice Connectors?

Splice connectors provide a quick and easy way to connect wires without soldering, making them ideal for temporary or non-critical applications.

10. How Do I Troubleshoot a Spliced USB Cable That Doesn't Work?

Check for loose connections, inspect the splice for damage, and use a multimeter to test for continuity and shorts.
