Introduction to Splicing USB-C Cables

Splicing a USB-C cable can be a cost-effective way to extend its length or repair damaged sections without purchasing a new cable. However, it requires careful attention to detail to ensure that the splice is reliable and does not compromise the cable's functionality. In this article, we will guide you through the process of splicing a USB-C cable, including the necessary tools, steps, and safety precautions.

how to splice a usb c cable_3

Tools Needed

- Wire Cutters: For cutting the cable.

- Razor Blade: For removing insulation.

- Soldering Iron: For joining wires securely.

- Heat Shrink Tubing: For insulation.

- Electrical Tape: For additional insulation.

- Multimeter: For testing the cable.

Step-by-Step Guide to Splicing a USB-C Cable

Step 1: Prepare the Cable

1. Cut the Cable: Use wire cutters to cut the USB-C cable at the desired length. Ensure that you leave enough room for splicing. It's crucial to measure twice and cut once to avoid mistakes[1].

2. Remove Insulation: Use a razor blade to carefully remove about an inch of the outer insulation from each end of the cable. This will expose the shielding and internal wires.

Step 2: Expose Internal Wires

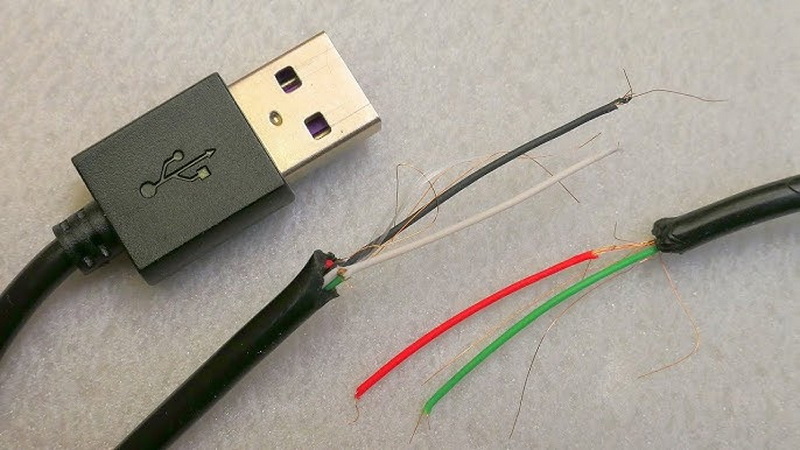

1. Pull Back Shielding: Gently pull the metal shielding to the side to expose the internal wires. These wires are typically colored red, green, black, and white.

2. Strip Wire Ends: Use a wire stripper to remove about 0.5 inches of insulation from the ends of each internal wire.

Step 3: Match and Solder Wires

1. Match Wire Colors: Match the corresponding colored wires from both cable ends. The colors typically represent:

- Red: Power (VBUS)

- Green: Data+ (D+)

- White: Data- (D-)

- Black: Ground (GND).

2. Solder Wires: Use a soldering iron to join the matched wires securely. Apply a small amount of solder to each connection.

Step 4: Insulate the Splice

1. Apply Heat Shrink Tubing: Slide heat shrink tubing over each soldered connection and apply heat using a heat gun to secure it.

2. Additional Insulation: Wrap electrical tape around the entire splice area for added protection.

Step 5: Test the Cable

1. Visual Inspection: Check the splice for any signs of damage or loose connections.

2. Tug Test: Gently tug on each cable end to ensure the splice is secure.

3. Multimeter Test: Use a multimeter to check for continuity and ensure there are no shorts.

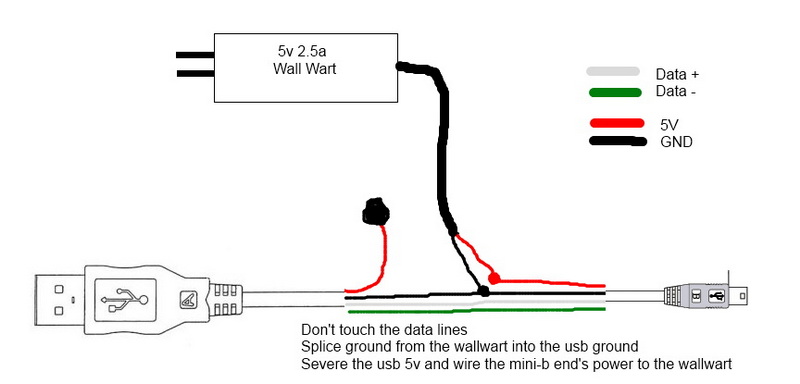

how to splice a usb c cable_4

Safety Precautions

When working with electrical components, it's crucial to follow safety guidelines:

- Wear Insulated Gloves: Protect yourself from electrical shock.

- Work in a Well-Ventilated Area: Avoid inhaling solder fumes.

- Avoid Overheating: Use a soldering iron carefully to prevent damage to components.

Understanding USB-C Cable Structure

USB-C cables have a unique structure that allows for reversible connections. The pins are almost symmetrical, but additional electronics are required to achieve this reversibility[2]. The cable includes lines for power (VBUS), data (D+/D-), and ground (GND), as well as configuration channels (CC1/CC2) that determine cable orientation.

USB-C Pinout

- VBUS and GND: These lines are consistent in their position.

- D+/D-: A high-speed twisted pair for USB 2.0 data.

- CC1/CC2: Determine cable orientation and are flipped in the plug.

- SBU1/SBU2: Used for Alternate Mode and accessory modes.

how to splice a usb c cable_2

Troubleshooting Common Issues

When your spliced USB-C cable fails to function as expected, follow these troubleshooting steps:

1. Inspect the Splice: Look for any visible signs of damage or loose wires.

2. Tug Test: Gently tug on each cable end to check for weak connections.

3. Re-solder: If necessary, re-solder the connections to reinforce them.

4. Test with Different Devices: Ensure the issue isn't device-specific.

Special Cases: Splicing USB-A to USB-C

In some unique situations, you might need to splice a USB-A cable to a USB-C cable. This could involve connecting the D+, D-, and GND wires from the USB-C cable to a USB-A cable for data transmission while maintaining power delivery through the USB-C connection[5]. However, this approach is suboptimal and should be considered only when no other options are available.

Conclusion

Splicing a USB-C cable can be a practical solution for extending its length or repairing damaged sections. However, it requires careful attention to detail and adherence to safety protocols to ensure a reliable connection. By following the steps outlined in this guide, you can successfully splice a USB-C cable while maintaining its functionality.

how to splice a usb c cable_1

Frequently Asked Questions

1. What Tools Are Needed to Splice a USB-C Cable?

- Wire Cutters: For cutting the cable.

- Razor Blade: For removing insulation.

- Soldering Iron: For joining wires securely.

- Heat Shrink Tubing: For insulation.

- Electrical Tape: For additional insulation.

- Multimeter: For testing the cable.

2. How Do I Match the Internal Wires of a USB-C Cable?

Match the wires by color:

- Red: Power (VBUS)

- Green: Data+ (D+)

- White: Data- (D-)

- Black: Ground (GND).

3. What Are the Risks of Incorrectly Splicing a USB-C Cable?

Incorrect splicing can lead to data loss, short circuits, or damage to connected devices. Ensure each wire is properly stripped, connected, and insulated.

4. How Do I Insulate the Splice After Soldering?

Use heat shrink tubing for each connection and wrap electrical tape around the entire splice area for added protection.

5. Why Is It Important to Test the Cable After Splicing?

Testing ensures that the splice is secure and there are no shorts or breaks in the cable. Use a multimeter to check continuity and perform a tug test to verify the connection's strength.
