Soldering a USB cable can seem daunting, especially for those new to electronics. However, with the right tools, techniques, and a bit of patience, you can successfully solder your own USB cables. This guide will walk you through the process step-by-step, ensuring you have a solid understanding of how to create reliable connections.
Before diving into the soldering process, it's essential to understand the structure of USB cables. Most USB cables contain four wires:
- Red: Power (VCC)
- Black: Ground (GND)
- Green: Data positive (D+)
- White: Data negative (D-)
These wires must be connected correctly to ensure proper functionality. For example, if you're working with a USB-C cable, which has more complex wiring, you'll need to ensure that all the necessary pins are correctly aligned and soldered.
To solder a USB cable, you will need the following tools and materials:
- Soldering iron
- Solder (preferably leaded for better flow, but ensure safety precautions are taken due to its toxicity)
- Wire strippers
- Heat shrink tubing
- Multimeter (for testing)
- Third-hand tool or helping hands
- Safety goggles
- A clean workspace
It's also important to note that soldering can be hazardous if proper safety measures are not taken. Lead-based solder, for instance, is toxic and requires careful handling. Always ensure good ventilation, wear protective gear like gloves and masks, and clean up thoroughly after soldering[4].
Step 1: Strip the Cable
Using wire strippers, carefully remove about 1 inch of the outer insulation from the USB cable. Take care not to damage the inner wires. If you're working with delicate cables, it might be helpful to use a pair of tweezers to gently pull back the insulation.
Step 2: Expose the Wires
Strip about 1/4 inch of insulation from each of the four wires. You should now have four exposed wires ready for soldering. Ensure that the stripped ends are clean and free of debris.
Tinning is the process of applying a small amount of solder to the exposed wire ends and connector pads. This helps create a better connection.
Step 1: Tin the Wires
Heat your soldering iron and apply a small amount of solder to the tip. Touch the tip to each wire while feeding in more solder until it is coated evenly. This step makes the wires easier to work with during the soldering process.
Step 2: Tin the Connector Pads
If you're using a connector, apply solder to each pad on the connector as well. This ensures that the solder flows smoothly onto the connector when you make the final connections.
Now that everything is prepared, it's time to solder.

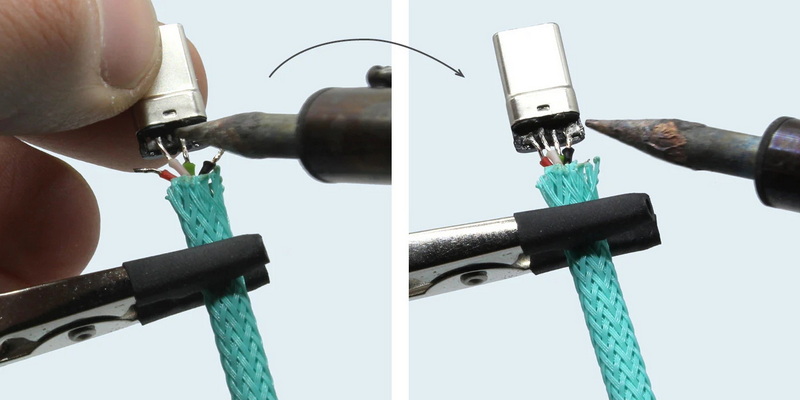

Step 1: Position Wires on Connector Pads
Using a third-hand tool, hold the connector steady while positioning each tinned wire onto its corresponding pad. Ensure that the wires are aligned correctly according to the USB cable's wiring diagram.
Step 2: Heat and Solder
Place your soldering iron on both the wire and pad simultaneously for a second or two until they heat up. Then feed in a bit more solder and remove the iron. Hold everything steady until it cools down.
Repeat this process for all four wires:
| Wire Color | Function | Connector Pad |
|---|---|---|
| Red | Power (VCC) | VCC |
| Black | Ground (GND) | GND |
| Green | Data Positive (D+) | D+ |
| White | Data Negative (D-) | D- |
For more complex connectors like USB-C, you might need to use a technique called "drag soldering," where you apply solder flux across all contact pads and then drag a loaded soldering iron tip across the row of pads to ensure all are soldered without shorts[1].
After soldering, it's crucial to insulate your connections to prevent short circuits.
Step 1: Heat Shrink Tubing
Cut a piece of heat shrink tubing and slide it over each connection before heating it with a lighter or heat gun until it shrinks snugly around the joint.
Before finalizing your project, it's wise to test your newly soldered cable.
Step 1: Use a Multimeter
Set your multimeter to continuity mode and check each connection by probing between the corresponding pads on both ends of the cable. Ensure there are no shorts between power and ground wires.
Soldering can be tricky, and several common mistakes can lead to poor connections:
- Using the Wrong Soldering Iron Tip: Ensure your iron tip is suitable for the task. Fine tips are best for delicate work, while larger tips are better for thicker wires[7].
- Not Cleaning the Soldering Tip: Regularly clean your iron tip to prevent oxidation and ensure good solder flow[7].
- Applying Too Much Solder: Use just enough solder to create a strong joint without excess that could cause shorts[7].
- Not Using Flux: Flux helps solder adhere to the joint surfaces and prevents oxidation[7].
When soldering, safety is paramount:
- Ventilation: Ensure good airflow to prevent inhaling solder fumes.
- Protective Gear: Wear gloves, safety goggles, and a mask to protect yourself from splashes and fumes.
- Cleanliness: Clean your workspace thoroughly after soldering to avoid lead exposure[4].
Soldering USB cables is a useful skill that can save you money and extend the life of your devices. By following this guide and avoiding common mistakes, you should now have a solid understanding of how to prepare, solder, and test USB cables effectively.
For most electronics work, leaded solder is preferred due to its lower melting point and better flow characteristics compared to lead-free options. However, always ensure safety precautions are taken due to its toxicity[7].
Yes, but ensure that you are aware of pin configurations for different types like USB-A, USB-B, Micro USB, or USB-C. Each has specific wiring requirements[3].
A temperature around 350°C (662°F) is generally effective for most soldering tasks. However, this may vary depending on the type of solder and components being used[7].
Ensure that both surfaces being joined are heated adequately before applying solder; this prevents weak connections that can break easily[7].
Yes, as long as they are properly made with correct wiring and insulation; however, always test them before regular use[5].
