Rewiring a USB cable can be a cost-effective and environmentally friendly way to extend the life of your cables. This process involves repairing or modifying the internal wiring of a USB cable to ensure it functions properly. In this article, we will guide you through the steps to rewire a USB cable, including identifying the wires, repairing damaged sections, and converting between different types of USB cables.

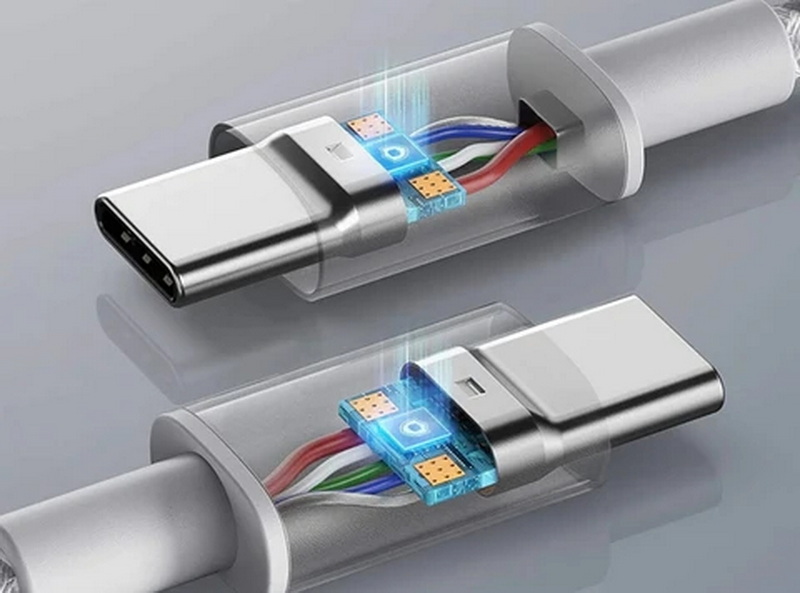

A standard USB cable typically consists of four wires: red (power), black (ground), white (data-), and green (data+). These wires are crucial for the cable's functionality, allowing it to transfer data and power devices. Understanding the role of each wire is essential for successful rewiring.
- Red Wire (Power): Supplies power to devices.
- Black Wire (Ground): Provides a return path for the power.
- White Wire (Data-): One of the data transmission wires.
- Green Wire (Data+): The other data transmission wire.
To rewire a USB cable, you will need several tools:
- Wire Cutters: For cutting the cable.
- Wire Strippers: To strip the insulation from the wires.
- Soldering Iron and Solder: For connecting wires.
- Heat Shrink Tube: To insulate soldered connections.
- Multimeter: Optional, for testing voltage and continuity.
Locate the damaged section of the cable. This could be a break in the wire or a faulty connector. Use a multimeter to check for continuity if you're unsure where the damage is.
Use wire cutters to remove the damaged part of the cable. Ensure you have enough length on both ends to work with. Cutting too close to the connectors can make it difficult to reattach them properly.
Strip the insulation from the ends of the wires using a wire stripper. Be careful not to cut the wires themselves, as this can weaken them.
Solder like-colored wires together. For example, connect the red wires (power) and black wires (ground). Make sure the connections are secure and not touching other wires to prevent short circuits.
Cover the soldered connections with heat shrink tubing to prevent short circuits. Apply heat to shrink the tubing tightly around the wires.

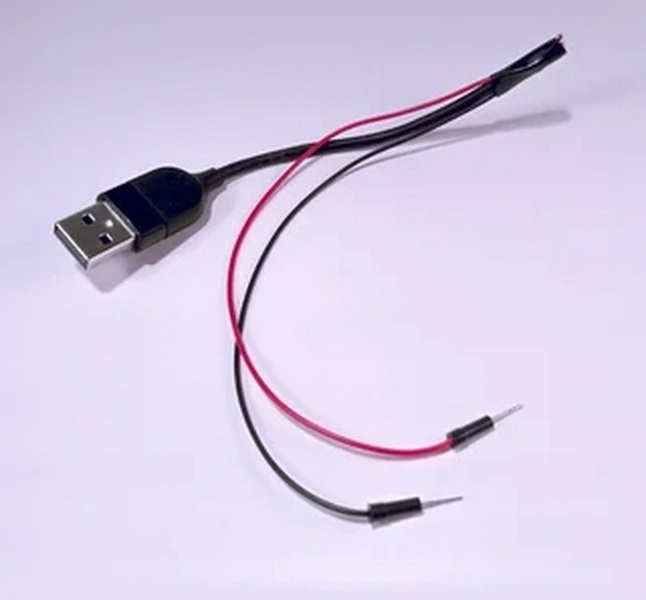

If you need to convert a 4-wire USB cable into a 2-wire cable, you can solder the power wires (red and black) together and the data wires (white and green) together. This is useful for charging-only applications, as it eliminates the need for data transmission wires.
If the USB plug itself is damaged, you may need to replace it entirely. This involves cutting open the moulded plug, repairing or replacing the internal components, and reassembling it. This can be more challenging than rewiring the cable itself but is sometimes necessary.
To extend the life of your USB cables:
- Avoid Overstretching: This can cause internal breaks in the wires.
- Keep Them Away from Heat and Moisture: Both can damage the insulation and wires.
- Use Protective Cases or Sleeves: These can protect the cables from physical damage.
Common problems with USB cables include:
- Loose Connections: Can cause intermittent connectivity issues.
- Slow Data Transfer: May indicate damaged or low-quality data wires.
- Compatibility Problems: Some cables may not work with certain devices due to differences in wiring or protocol.
- Physical Damage: Cuts, bends, or pinches in the cable can disrupt functionality.
For more advanced users, modifying USB cables can involve creating custom lengths, converting between different types of USB connectors (e.g., USB-A to USB-C), or even adding additional features like USB hubs or power delivery (PD) capabilities.
When working with electrical components, safety is paramount:
- Use Proper Ventilation: Soldering can release harmful fumes.
- Avoid Electrical Shock: Ensure all devices are unplugged before working on them.
- Protect Your Eyes: Wear safety glasses when soldering to protect against splashes.
If your USB cable is not working after rewiring, check the following:
- Continuity: Use a multimeter to ensure there are no breaks in the wires.
- Solder Joints: Verify that soldered connections are secure and not touching other wires.
- Connector Alignment: Make sure the connectors are properly aligned and seated.
Rewiring a USB cable can be a straightforward process with the right tools and knowledge. By understanding the components of a USB cable and following the steps outlined above, you can repair or modify your cables to meet your needs. This not only saves money but also contributes to reducing electronic waste. Whether you're fixing a damaged cable or creating a custom solution, the skills learned here can be applied to a variety of situations.
You can use a multimeter to check for continuity between the pins of the USB connectors. Alternatively, try using the cable for data transfer; if it works, it likely has four wires.
Common issues include loose connections, slow data transfer, compatibility problems, and physical damage to the cable.
Converting a USB-C cable to a standard USB cable typically requires an adapter or a new connector, as USB-C has different wiring and protocols than standard USB.
Yes, most standard USB cables support both charging and data transfer. However, some cables may be designed for charging only and lack the necessary data wires.
Prevent damage by avoiding overstretching, keeping cables away from heat and moisture, and using protective cases or sleeves.
