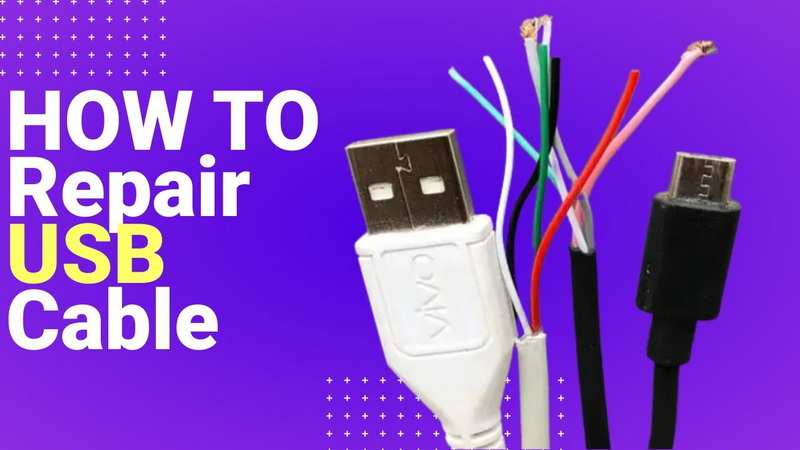

USB cables are ubiquitous in modern technology, connecting devices like computers, smartphones, and printers. Over time, these cables can become damaged or worn out, necessitating replacement. This article will guide you through the process of replacing USB cables, including various types such as USB-A, USB-C, and Micro USB. We will cover the necessary tools, steps, and precautions to ensure a successful replacement.
Before starting, gather the following tools:
- Wire cutters or scissors: These are used to cut the damaged portion of the cable.
- Wire strippers: Essential for exposing the conductive parts of the wires.
- Soldering iron and solder: Used to connect the wires securely.
- Heat shrink tubing: Protects the soldered joints from short circuits.
- Heat gun or lighter: For shrinking the heat shrink tubing.
- Replacement USB connectors: Available at stores like Adafruit or online at Amazon.
Determine where the cable is damaged. If the issue is with the connector, you may need to replace it entirely. For internal damage, you can repair the cable by splicing the wires. It's crucial to diagnose the problem accurately to avoid unnecessary work.
Use wire cutters to remove the damaged section of the cable. Ensure you have enough length on both sides to work with. Cutting too close to the connector can make it difficult to solder later.
Use wire strippers to expose the conductive parts of the wires. Typically, a USB cable has four wires: red (5V), black (GND), white (Data-), and green (Data+). Be careful not to strip too much of the insulation, as this can lead to short circuits.
Solder the corresponding wires together. Ensure the solder joints are clean and not bridged. Use a soldering iron with a temperature control to avoid overheating the wires.
Use electrical tape or heat shrink tubing to insulate the soldered joints. This prevents short circuits and protects the wires from environmental factors.
If replacing a connector, solder the wires to the new connector according to the pinout diagram. For USB-A, the standard pinout is:
- Pin 1: VCC (Red)
- Pin 2: D- (White)
- Pin 3: D+ (Green)
- Pin 4: GND (Black).
For USB-C, the pinout is more complex due to its reversible design and higher data transfer capabilities. Always refer to the specific connector's documentation for accurate pin assignments.
Use heat shrink tubing to cover any exposed parts and secure the cable with electrical tape if needed. This ensures the cable remains durable and resistant to wear.
These are commonly used for connecting peripherals to computers. Replacing a USB-A connector involves soldering the wires to the new connector and securing it with heat shrink tubing. USB-A cables are straightforward to repair due to their simple design.
USB-C cables are versatile and can be used for both data transfer and power delivery. Replacing a USB-C cable often involves removing the ferrite core and reinstalling it on the new cable. The ferrite core helps reduce electromagnetic interference (EMI), so it's crucial to replace it correctly.
Micro USB cables are commonly used for charging smartphones. Replacing a Micro USB connector requires soldering the wires to the new connector, ensuring proper insulation. Micro USB cables are smaller and more delicate, requiring careful handling during repair.
When replacing USB cables, common issues include:
- Incorrect Wire Coloring: Always refer to the standard USB pinout to ensure correct wiring. Miswiring can lead to data corruption or device malfunction.
- Poor Soldering: Use a soldering iron with a temperature control to avoid overheating the wires. Overheating can damage the insulation or the wires themselves.
- Insufficient Insulation: Use heat shrink tubing to protect the solder joints. This prevents short circuits and ensures the cable remains durable.
- Avoid Overheating: Keep the soldering iron away from flammable materials and avoid touching the hot tip.
- Use Protective Gear: Wear safety glasses and gloves to protect yourself from solder splashes.
- Work in a Well-Ventilated Area: Soldering can release fumes that are harmful if inhaled in large quantities.
- Use High-Quality Materials: Ensure the replacement connectors and wires are of good quality to maintain signal integrity.
- Test the Cable: After repair, test the cable with a device to ensure it works correctly.
- Keep the Workspace Clean: A cluttered workspace can lead to mistakes. Keep your tools and materials organized.
For those interested in creating custom USB cables, consider using different materials or designs to enhance durability or aesthetics. This might involve using braided sleeves for protection or color-coding the wires for easier identification.
If your repaired cable doesn't work as expected, check for the following:
- Loose Connections: Ensure all solder joints are secure.
- Incorrect Pinout: Verify that the wires are connected according to the correct pinout.
- Damaged Insulation: Inspect the cable for any exposed wires or damaged insulation.
Replacing a USB cable can be a straightforward process if you have the right tools and follow the correct steps. It's essential to ensure proper insulation and soldering to prevent short circuits and maintain data integrity. By following these guidelines and using the resources provided, you can successfully replace your USB cables and extend their lifespan.
The standard colors for USB wires are:
- Red: VCC (5V)
- Black: GND
- White: Data-
- Green: Data+.
Use heat shrink tubing or electrical tape to insulate the soldered joints and prevent short circuits.
No, it's best to use wires with the same gauge and type as the original to ensure proper data transfer and power delivery.
To replace a USB-C connector, remove the ferrite core, guide the new cable through any metal sleeves, and reinstall the ferrite core in its original position.
You will need wire cutters, wire strippers, a soldering iron, solder, heat shrink tubing, and a heat gun or lighter.
