USB cables are ubiquitous in modern technology, used for both charging and data transfer across a wide range of devices. However, due to frequent use, these cables often suffer from wear and tear, particularly at the connector pins. Repairing these pins can be a cost-effective and environmentally friendly solution. This article will guide you through the process of fixing USB cable pins, focusing on micro USB cables, which are commonly used in smartphones, tablets, and portable speakers.

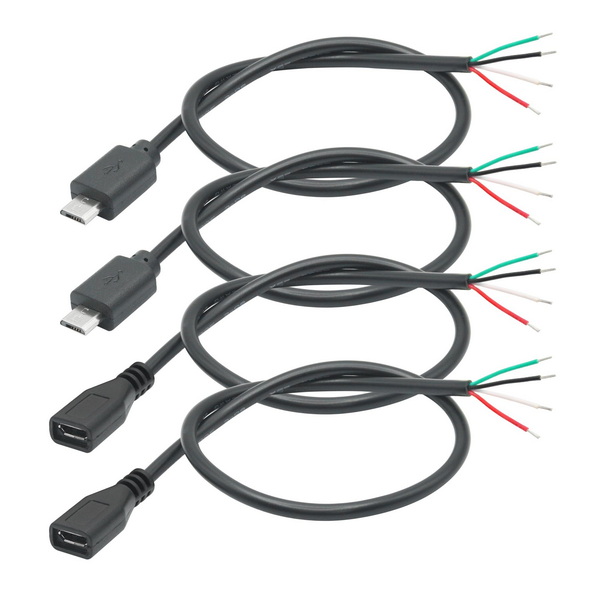

Micro USB cables are essential for many electronic devices, providing both power and data connectivity. They consist of five wires: GND (black), 5V (red), Data+ (green), Data- (white), and an optional drain wire. The standard wire colors and pinout are crucial for successful repairs.
Micro USB Pinout:
| Pin | Name | Wire Color | Description |
|---|---|---|---|
| 1 | VBUS | Red | +5 V |
| 2 | D− | White | Data− |
| 3 | D+ | Green | Data+ |
| 4 | ID | N/A | Permits detection of which end of a cable is plugged in |
| 5 | GND | Black | Signal ground |
1. Loose Pins: Over time, the pins inside the micro USB connector can become loose, causing unreliable connections.
2. Damaged Connectors: The connector itself can break or become detached from the cable.
3. Corrosion: Moisture can lead to corrosion on the pins, affecting conductivity.
Before starting the repair, inspect the cable for any visible damage. Check if the issue is with the cable itself or the connector. This step is crucial to determine if you need to replace the entire cable or just the connector. Use a magnifying glass or a small flashlight to examine the connector and the surrounding area closely.
Use wire cutters to cut off the broken connector. Be careful not to damage the inner wires. If the connector is partially detached but still intact, you may need to use a small screwdriver to gently pry it off without causing further damage.
Use a wire stripper to carefully strip the outer jacket of the cable. This exposes the inner wires. Ensure that you leave enough length to connect to a new connector. The ideal length should be slightly longer than the original to allow for easy handling during soldering.
Obtain a replacement micro USB connector and solder the wires to it. Ensure the correct pinout is followed:
1. VBUS (Red): Connect to Pin 1.
2. D− (White): Connect to Pin 2.
3. D+ (Green): Connect to Pin 3.
4. GND (Black): Connect to Pin 5.
Use a soldering iron with a fine tip to ensure precise connections. Apply a small amount of soldering paste to the wires before soldering to improve conductivity.
Use electrical tape to insulate the soldered joints and protect them from short circuits. This step is crucial to prevent electrical shocks and ensure the longevity of the repair. Apply multiple layers of tape if necessary, ensuring that all exposed metal is covered.
Finally, assemble the connector by fitting it into its housing. Use pliers to secure it in place. Ensure that all parts are aligned properly to avoid any mechanical stress on the soldered joints.
- Use Standardized Wire Colors: Ensure that the wire colors match the standard micro USB pinout to avoid confusion during the repair process.
- Clean the Port: Regularly clean the micro USB port on your device to prevent dust buildup, which can cause connectivity issues.
- Handle with Care: Be gentle when handling the wires and connectors to avoid further damage.
- Test the Cable: After completing the repair, test the cable with a device to ensure it works properly. Check for both charging and data transfer functionality.
Repairing cables instead of discarding them can significantly reduce electronic waste. This approach promotes sustainability and reduces the environmental impact of consumer electronics. Electronic waste is a growing concern globally, with many devices ending up in landfills or incinerators, leading to pollution and health hazards.
When repairing electronic devices, safety should always be a priority:
- Use Protective Gear: Wear safety glasses and gloves to protect yourself from solder splashes and electrical shocks.
- Work in a Well-Ventilated Area: Soldering can release fumes that are harmful if inhaled in large quantities.
- Avoid Overheating: Ensure that the soldering iron is not left unattended or overheated, as this can cause fires.
1. Incorrect Pinout: Double-check that the wires are connected to the correct pins to avoid damaging the device or the cable.
2. Insufficient Insulation: Ensure that all soldered joints are properly insulated to prevent short circuits.
3. Poor Soldering: Use the correct soldering technique to ensure strong and reliable connections.
Repairing micro USB cable pins is a feasible DIY project that requires basic electronics knowledge and tools. By following the steps outlined above and using the correct materials, you can extend the life of your cables and contribute to reducing electronic waste. This approach not only saves money but also promotes environmental sustainability.
The standard wire colors for a micro USB cable are: Red (5V), White (Data-), Green (Data+), and Black (GND). An optional drain wire may also be present.
You will need a soldering iron with a fine tip, soldering paste, tweezers, wire cutters, and a wire stripper.
Regularly clean the micro USB port on your device to prevent dust buildup. Handle the cables with care to avoid mechanical stress on the ports.
Ensure that the replacement connector matches the original in terms of pin layout and compatibility. Check the datasheet or store's website for specifications.
Soldering at home can be safe if you follow proper safety precautions, such as using a well-ventilated area, wearing protective gear, and ensuring the soldering iron is handled carefully.
