Introduction to Repairing Micro USB Cables

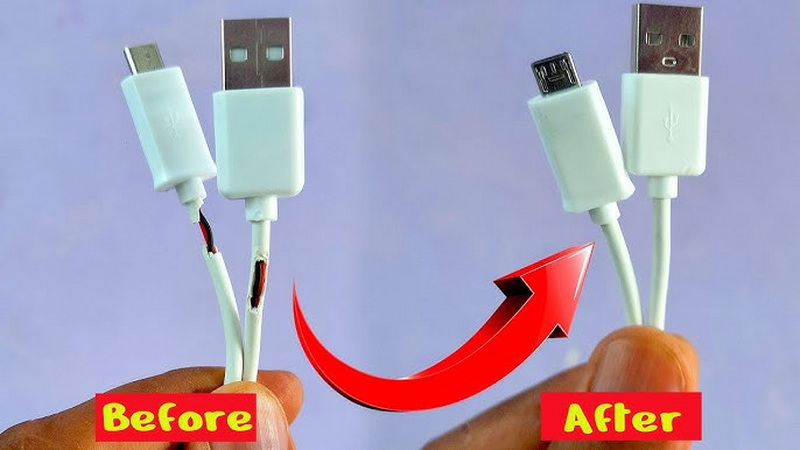

Repairing a micro USB cable can be a cost-effective and environmentally friendly way to extend the life of your devices. Micro USB cables are commonly used for charging and data transfer in many electronic devices, including smartphones, tablets, and portable speakers. However, these cables can easily become damaged due to frequent use or improper handling. In this article, we will guide you through the steps to repair a micro USB cable, including replacing the connector and fixing broken wires.
Materials Needed
To repair a micro USB cable, you will need the following materials:

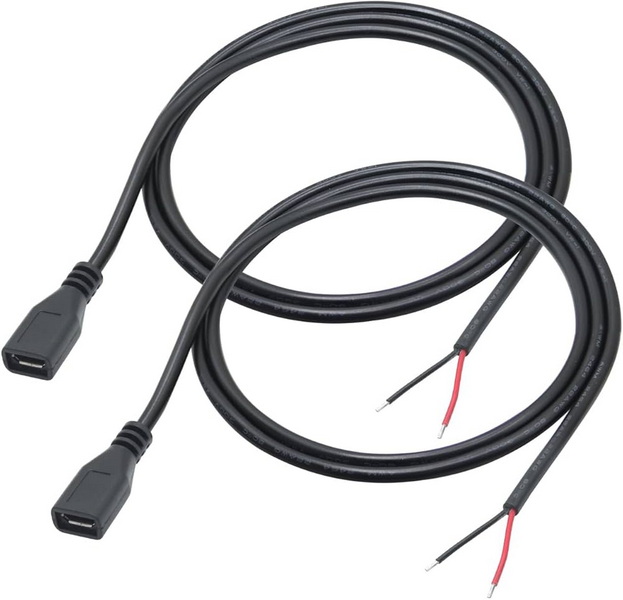

- Micro USB connector replacement: Available on platforms like Aliexpress, Amazon, or eBay.
- Wire strippers: For removing the insulation from the wires.
- Soldering iron and solder: For connecting the wires to the new connector.
- Tweezers: For handling small components.
- Multimeter: For testing the connections.
- Glue or tape: For securing the connector cover.
Step-by-Step Repair Guide

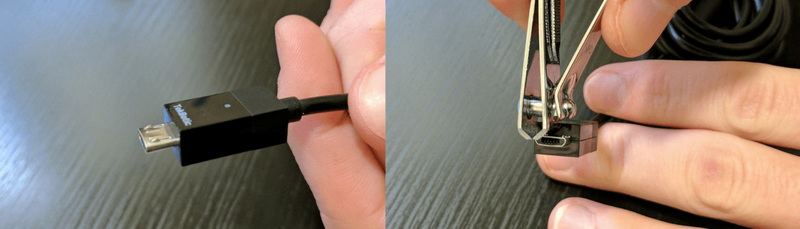

Step 1: Cut Off the Broken Connector
If the connector is damaged, you need to cut it off using wire cutters. Ensure you leave enough cable length for the new connector. It's crucial to be precise in this step to avoid cutting too much of the cable, which could make it difficult to connect the new connector properly.
Step 2: Remove the Outer Jacket
Use wire strippers to remove the outer insulation of the cable, exposing the inner wires. Be careful not to damage the inner wires during this process. If you find that the inner wires are also damaged, you may need to cut back further to find undamaged sections.
Step 3: Strip the Inner Wires
Strip the insulation from the ends of the inner wires. Typically, a micro USB cable has five wires: red (5V), black (GND), green (Data+), white (Data-), and sometimes an additional drain wire. The drain wire is usually connected to the shield of the cable and helps reduce electromagnetic interference.
Step 4: Connect the Wires to the New Connector
Solder the wires to the corresponding pins on the new connector. The pin layout may vary, so refer to the connector's datasheet or manufacturer's instructions. It's important to ensure that each wire is securely soldered to prevent loose connections.
Step 5: Insulate the Wires
Use electrical tape or heat shrink tubing to insulate the soldered connections and protect them from short circuits. This step is crucial for preventing electrical issues and ensuring the longevity of the repaired cable.

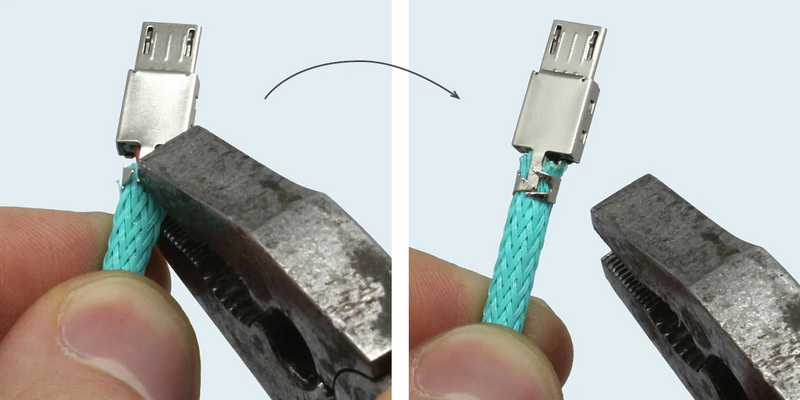

Step 6: Assemble the Connector
Place the wires through the connector's outer shell and assemble the connector parts. Use pliers to secure everything in place. Make sure the connector is properly aligned and securely fastened to prevent it from coming loose over time.
Tips for Successful Repair
- Use a multimeter to test the connections before using the cable. This will help you identify any short circuits or improper connections.
- Apply glue to secure the connector cover. This ensures that the connector remains intact and protects the internal components.
- Test the cable with a device to ensure it works properly. Try charging a device or transferring data to verify that both functions are working as expected.
Common Issues and Solutions
Shielded Cables
If your cable has a wire shield, carefully unwrap it during repair and rewrap it after soldering. Use shrink tubing to cover the repaired section for better protection. Shielded cables are designed to reduce electromagnetic interference, so it's important to maintain this shielding during the repair process.
Data Transfer Issues
If the cable is not transferring data, check that the Data+ and Data- wires are correctly connected and not damaged. These wires are crucial for data transfer, and any issues with them can prevent your devices from communicating properly.
Advanced Repair Techniques
For more complex repairs, such as fixing a damaged cable with multiple breaks, you may need to use additional materials like wire splices or connectors. These can help you join broken sections of the cable together, extending its usable length.
Safety Precautions
When working with electrical components, it's important to take safety precautions:
- Use protective gear: Wear safety glasses and gloves to protect yourself from solder splashes and electrical shocks.
- Work in a well-ventilated area: Soldering can release fumes, so ensure you have good airflow.
- Avoid overloading the cable: After repair, avoid using the cable for high-current applications if it was not designed for them.
Environmental Benefits
Repairing micro USB cables not only saves you money but also contributes to reducing electronic waste. By extending the life of your cables, you are helping to minimize the amount of waste that ends up in landfills and oceans.
Cost-Effectiveness
Purchasing replacement connectors and materials is often cheaper than buying a new cable. This makes repairing cables a cost-effective option for extending the life of your devices.
Conclusion
Repairing a micro USB cable can be a straightforward process with the right tools and knowledge. By following these steps and tips, you can extend the life of your cables and reduce electronic waste. Remember to always test your connections and ensure the cable is working properly before using it with your devices.
Frequently Asked Questions
1. What are the typical colors of the wires in a micro USB cable?
The typical colors are red (5V), black (GND), green (Data+), and white (Data-). Some cables may also include a drain wire.
2. How do I know which pin to connect each wire to on the new connector?
Refer to the connector's datasheet or the manufacturer's instructions for the correct pin layout.
3. Can I repair a micro USB cable with a shielded wire?
Yes, you can repair a shielded cable by carefully unwrapping the shield during the repair process and rewrapping it afterward. Use shrink tubing to protect the repaired section.
4. What tools do I need to repair a micro USB cable?
You will need wire strippers, a soldering iron, tweezers, a multimeter, and glue or tape.
5. How do I test if my repaired micro USB cable is working properly?
Use a multimeter to check for short circuits and test the cable with a device to ensure it charges or transfers data correctly.
