USB (Universal Serial Bus) cables are ubiquitous in modern technology, serving as the backbone for data transfer and power delivery between countless devices. While readily available for purchase, creating your own USB cable offers a unique opportunity to customize length, color, and connector types, as well as gain a deeper understanding of the technology. This guide provides a detailed walkthrough of the process, suitable for hobbyists, DIY enthusiasts, and anyone looking to expand their knowledge of electronics.
Before diving into the creation process, it's crucial to understand the anatomy of a USB cable and the function of each component. A standard USB cable consists of four wires:
- VCC (Power): Supplies +5V DC power. Typically red or orange.
- Data+ (D+): Carries differential data signals. Usually green.
- Data- (D-): Carries differential data signals. Usually white or gold.
- Ground (GND): Provides the ground connection. Usually black or blue.
USB cables come in various types and connectors, including USB-A, USB-B, Mini-USB, Micro-USB, and USB-C. Each connector type has a specific form factor and pinout configuration, but the underlying principle of data and power transmission remains the same. USB-C, the newest standard, offers significantly higher power delivery capabilities and faster data transfer speeds compared to its predecessors. It's also reversible, a convenient feature absent in older USB types. The internal wiring also differs slightly, with the addition of Configuration Channel (CC) pins used for device detection and power negotiation.
To embark on your USB cable creation journey, gather the following materials and tools:
- USB Connector(s): Choose the appropriate connector type(s) based on your project requirements (e.g., USB-A, USB-C, Micro-USB). Buying quality connectors from reputable suppliers ensures better performance and durability. Consider connectors with gold-plated pins for improved conductivity and corrosion resistance.
- Cable: A four-conductor cable with 20-28 AWG wires is recommended. Shielded cable is preferable to minimize interference and ensure data integrity, particularly for longer cable lengths or environments with electromagnetic noise.
- Wire Strippers: For removing the insulation from the wires without damaging them. Invest in a quality wire stripper tool that can accurately strip the insulation without nicking or cutting the copper conductors.
- Soldering Iron and Solder: For creating secure electrical connections between the wires and the connector pins. A temperature-controlled soldering iron is highly recommended for precise temperature control and consistent soldering results. Use rosin-core solder specifically designed for electronics.
- Multimeter: For testing the continuity and voltage of the cable. A multimeter is indispensable for verifying the integrity of your connections and ensuring that the cable is functioning correctly.
- Heat Shrink Tubing: For insulating and protecting the soldered connections. Choose heat shrink tubing with an appropriate diameter to fit snugly over the soldered joints.
- Heat Gun or Lighter: To shrink the heat shrink tubing. A heat gun provides more even and controlled heating compared to a lighter, reducing the risk of overheating and damaging the tubing.
- Scissors or Cutting Tool: For cutting the cable to the desired length. A sharp pair of scissors or a dedicated cable cutter will make clean, precise cuts.
- (Optional) Paracord or Sleeving: For aesthetic customization and added durability. Paracord or sleeving not only enhances the appearance of your cable but also provides additional protection against wear and tear.
- (Optional) Third Hand Tool: Useful for holding components in place while soldering. A third hand tool, also known as a helping hand, features adjustable arms with alligator clips to securely hold components in place, freeing up your hands for soldering.
1. Determine the desired length of your USB cable. Remember to add a few extra inches to account for stripping and soldering. Accurately measuring the required length prevents wastage and ensures that the finished cable meets your specific needs. It's always better to err on the side of caution and add a bit of extra length, as it's easier to trim excess cable than to lengthen a cable that's too short.
2. Use the cutting tool to cut the cable to the determined length. Ensure that the cut is clean and perpendicular to the cable axis. A frayed or uneven cut can make stripping and soldering more difficult.
3. Carefully strip the outer jacket of the cable to expose the four inner wires. Use the wire strippers and adjust them to the correct gauge to avoid damaging the conductors. The length of the exposed wires should be sufficient for soldering to the connector pins. Generally, exposing about 1/4 to 1/2 inch of wire is adequate.
4. Strip the insulation from the end of each of the four inner wires. Again, use the wire strippers carefully to avoid nicking or breaking the conductors. Twist the exposed strands of each wire to prevent fraying and ensure a solid connection. Tinning the exposed wire with a small amount of solder can further improve conductivity and prevent oxidation.
1. Refer to the pinout diagram for your specific USB connector type. These diagrams are readily available online and indicate the correct order for soldering the VCC, Data+, Data-, and Ground wires. Incorrect wiring can damage your devices, so double-check the pinout before proceeding.
2. Tin the connector pins with a small amount of solder. This pre-tinning step will make it easier to solder the wires to the pins and create a stronger, more reliable connection.

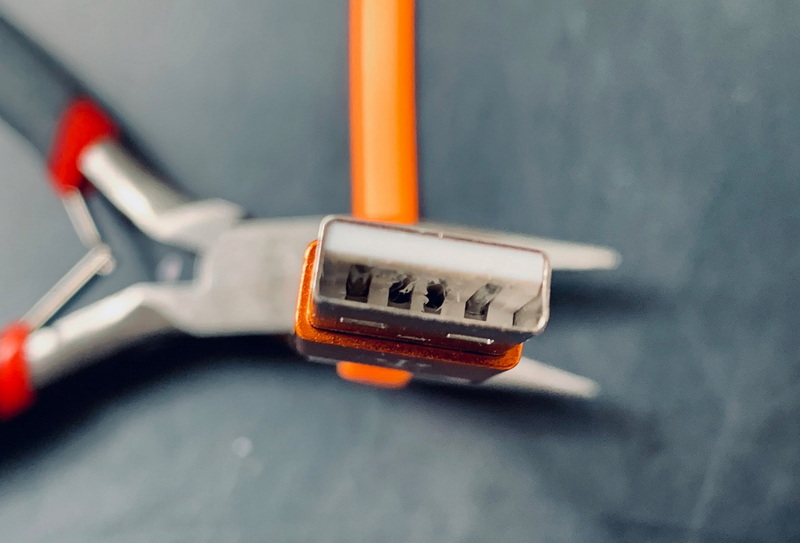

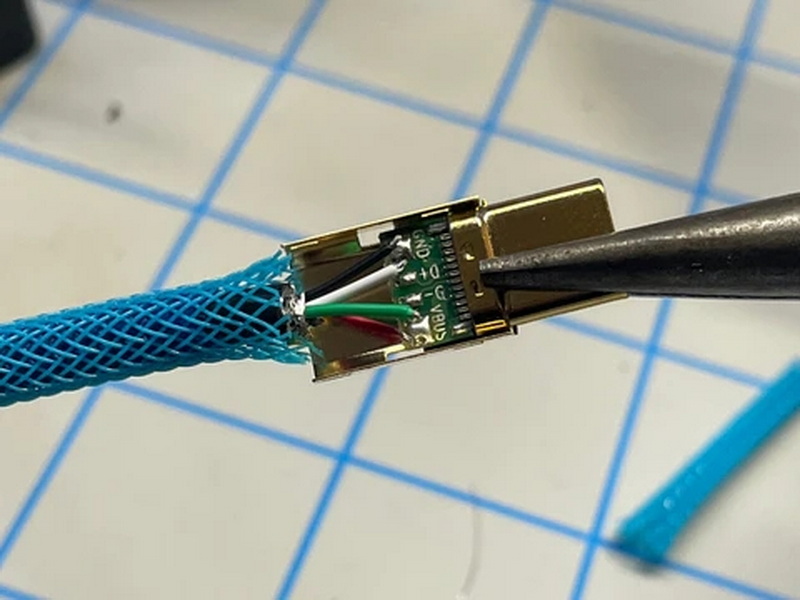

3. Carefully solder each wire to its corresponding pin on the USB connector. Ensure that the solder joints are clean, shiny, and free of any cold solder joints (dull, grainy appearance). A good solder joint should have a smooth, concave fillet between the wire and the pin. Hold the soldering iron to the pin and wire simultaneously, and apply solder to the heated joint. Allow the solder to flow smoothly and evenly around the connection.
4. Repeat the soldering process for the other end of the cable, ensuring that the wires are connected to the correct pins according to the USB standard. Precision and attention to detail are crucial at this stage to avoid any wiring errors.
1. Slide a piece of heat shrink tubing over each soldered connection. The tubing should be long enough to completely cover the exposed wire and the solder joint.
2. Use a heat gun or lighter to shrink the heat shrink tubing, providing insulation and protection for the soldered connections. Apply heat evenly around the tubing until it shrinks tightly around the joint. Be careful not to overheat the tubing, as this can cause it to melt or become brittle.

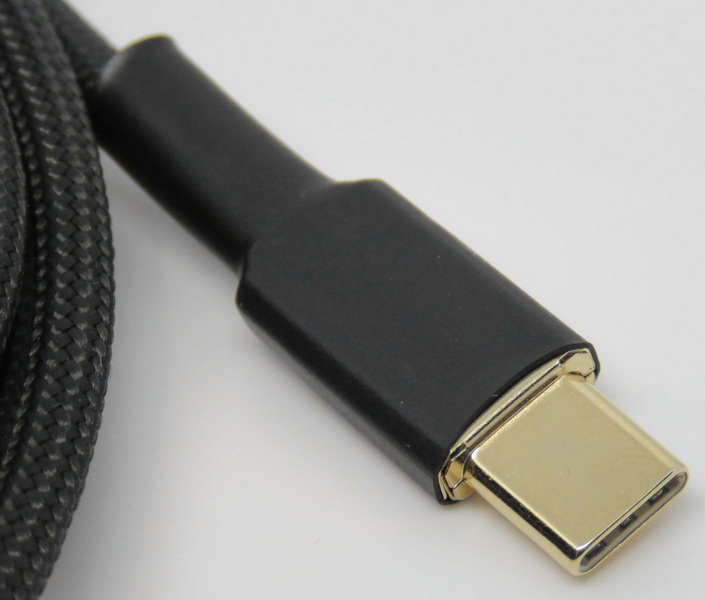

3. (Optional) Apply additional heat shrink tubing over the entire connector area for added strain relief and protection. This step can help to prevent the wires from breaking or becoming disconnected from the connector due to bending or pulling.
1. Use a multimeter to test the continuity between the corresponding pins on each end of the USB cable. This confirms that the wires are properly connected and that there are no breaks or shorts in the circuit. Set the multimeter to the continuity testing mode and touch the probes to the corresponding pins on each connector. The multimeter should beep or display a low resistance reading if the connection is good.
2. Test the voltage between the VCC and Ground pins to ensure that the cable is delivering the correct voltage. Connect the USB cable to a power source and use the multimeter to measure the voltage between the VCC and Ground pins. The voltage should be approximately +5V DC.
3. Connect the cable to a device and test its functionality. Verify that the cable is able to transfer data and provide power to the device as expected. If the cable is not working correctly, re-examine the solder joints and wiring for any errors.
1. If desired, add paracord or sleeving to the cable for aesthetic customization and added durability. Slide the paracord or sleeving over the cable and secure it at each end with heat shrink tubing.
2. Get creative with colors, patterns, and textures to create a unique and personalized USB cable. You can also add decorative elements such as beads, charms, or custom labels.
Even with careful execution, problems can arise during the USB cable creation process. Here are some common issues and their solutions:
- Cable not working: Double-check the wiring against the pinout diagram. Ensure that all solder joints are solid and that there are no shorts or breaks in the circuit.
- Device not recognized: Verify that the cable is providing the correct voltage and that the data lines are properly connected. Try using a different USB port or device to rule out any compatibility issues.
- Intermittent connection: Inspect the solder joints for any signs of cracking or looseness. Re-solder any suspect connections and ensure that the wires are securely attached to the connector pins.
- Data transfer errors: Use shielded cable to minimize interference. Ensure that the cable is not too long, as longer cables can be more susceptible to signal degradation.
- USB Standards: Be aware of the different USB standards (USB 2.0, USB 3.0, USB 3.1, USB 3.2, USB4) and their respective data transfer speeds and power delivery capabilities. Choose the appropriate standard based on your project requirements.
- Cable Length: Keep the cable length within the recommended limits specified by the USB standard. Longer cables can experience signal degradation and may not function reliably.
- Wire Gauge: Use the appropriate wire gauge for the current requirements of your application. Thicker wires (lower AWG) can handle higher currents with less voltage drop.
- Shielding: Consider using shielded cable to minimize interference, especially in environments with electromagnetic noise. Shielding helps to protect the data signals from external interference and ensures data integrity.
- Strain Relief: Provide adequate strain relief at the connector ends to prevent the wires from breaking or becoming disconnected due to bending or pulling. Strain relief can be achieved using heat shrink tubing, cable ties, or other mechanical fasteners.
- ESD Protection: Take precautions to prevent electrostatic discharge (ESD) from damaging the electronic components. Ground yourself before handling any electronic components and use ESD-safe tools and equipment.
By following these steps and guidelines, you can create your own custom USB cables that meet your specific needs and preferences. This project not only provides a practical solution for connecting your devices but also offers a valuable learning experience in electronics and soldering.
Creating your own USB cable is a rewarding project that allows for customization and a deeper understanding of electronics. By following the steps outlined in this guide, you can craft cables tailored to your specific needs, whether it's a custom length for a specific device or a personalized aesthetic. Remember to prioritize safety, accuracy, and quality materials for optimal performance and longevity. With patience and attention to detail, you'll be able to create USB cables that are both functional and uniquely your own.
The maximum length for a USB 2.0 cable is typically 5 meters (approximately 16 feet). Exceeding this length can lead to signal degradation and unreliable data transfer. For longer distances, consider using a USB extender or a USB hub with signal boosting capabilities.
Yes, it is acceptable to use different gauge wires for the power and data lines, provided that the power wires are of a sufficient gauge to handle the required current. For example, you could use 24 AWG wires for the power lines and 28 AWG wires for the data lines. However, it is generally recommended to use the same gauge wires for all four conductors to simplify the soldering process and ensure consistent performance.
USB-A is the traditional rectangular USB connector that is commonly found on computers and other devices. USB-C is a newer, smaller, and reversible connector that offers faster data transfer speeds and higher power delivery capabilities. USB-C is also more versatile, as it can be used for both data transfer and video output.
The choice of USB connector type depends on the specific requirements of your project. Consider the size, shape, and functionality of the device that you are connecting to. USB-A is suitable for standard connections to computers and peripherals. USB-C is ideal for newer devices that require faster data transfer speeds and higher power delivery. Micro-USB is commonly used for mobile devices and smaller electronics.
Shielding in a USB cable helps to minimize interference from external electromagnetic sources. The shield typically consists of a layer of braided metal or foil that surrounds the inner wires. The shield is connected to ground and provides a barrier against electromagnetic radiation, preventing it from interfering with the data signals. Shielded cables are recommended for environments with high levels of electromagnetic noise or for applications that require high data integrity.
