Creating a USB to RJ45 console cable is a practical solution for connecting your computer to networking devices like Cisco routers or switches. This cable allows you to access the console port of these devices using a USB interface, which is more convenient than traditional serial connections. In this article, we will explore the components needed, the steps to build such a cable, and common issues you might encounter.
Console cables are essential for managing network devices. They allow administrators to configure, troubleshoot, and update firmware on devices like routers and switches. Traditional console cables use serial connections, which require a DB9 or DB25 connector on the computer side. However, with the decline of serial ports on modern computers, USB-based solutions have become more popular.

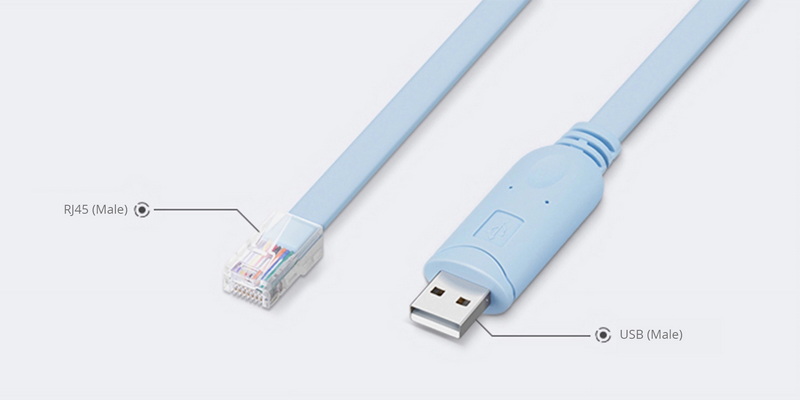

A USB to RJ45 console cable converts the USB signal from your computer into a serial signal that can be understood by the console port of a network device. This conversion is typically done using a USB-to-serial adapter embedded within the cable. The RJ45 end of the cable connects to the console port of the device, allowing you to access its command-line interface (CLI).
Key Components:
- USB-to-Serial Adapter: Converts USB signals to serial signals.
- RJ45 Connector: Connects to the console port of the network device.
- Cable: Typically uses Cat5e or Cat6 cable for the RJ45 connection.
Building your own USB to RJ45 console cable requires some basic electronics knowledge and tools. Here's a step-by-step guide:
- USB Connector
- USB-to-Serial Adapter (e.g., FTDI or Prolific Chipset)
- Cat5e or Cat6 Cable
- RJ45 Connector
- Soldering Iron and Solder
- Wire Strippers
- Heat-Shrink Tubing
1. Prepare the USB-to-Serial Adapter:
- If using a USB-to-serial module, ensure it is properly connected to the USB connector. You may need to solder the module to a USB header or directly to the USB connector wires.
2. Prepare the RJ45 Connector:
- Cut a length of Cat5e or Cat6 cable and strip the ends.
- Use a wire stripper to expose the inner wires.
3. Connect the Wires:
- The RJ45 connector for a console cable uses a specific pinout, often referred to as a "rollover" cable. This means that pin 1 on one end connects to pin 8 on the other, and so on.
- Connect the wires from the serial adapter to the RJ45 connector according to the rollover pinout:
- Pin 1 (White/Orange) to Pin 8 (Brown)
- Pin 2 (Orange) to Pin 7 (White/Brown)
- Pin 3 (White/Green) to Pin 6 (Green)
- Pin 4 (Blue) to Pin 5 (White/Blue)
- Pin 5 (White/Blue) to Pin 4 (Blue)
- Pin 6 (Green) to Pin 3 (White/Green)
- Pin 7 (White/Brown) to Pin 2 (Orange)
- Pin 8 (Brown) to Pin 1 (White/Orange)
4. Secure the Connections:
- Use heat-shrink tubing to protect the soldered connections and prevent shorts.
5. Test the Cable:
- Connect the USB end to your computer and the RJ45 end to the console port of your network device.
- Open a terminal emulator like PuTTY and configure it to use the appropriate COM port and settings (e.g., 9600 baud, 8 data bits, no parity, 1 stop bit).
If you have existing serial and RJ45 cables, you can also build a console cable by cutting these cables in half and joining them according to the rollover pinout[1]. This method involves using a USB-to-serial adapter as an intermediary to convert the USB signal to a serial signal.
- Solution: Ensure the USB-to-serial drivers are installed. If using Windows, check Device Manager under "Ports" for the COM port assigned to your adapter. You may need to manually update the driver if it doesn't automatically install.
- Solution: Use Device Manager to identify the correct COM port number. Some terminal emulators may only work with specific COM ports (e.g., COM1 or COM2), so you might need to manually adjust the port number in Device Manager.
- Solution: Check the physical connection and ensure the cable is securely plugged into both the computer and the network device. Also, verify that the correct baud rate and other serial settings are used.
- Solution: If you encounter issues installing drivers, try removing any existing software related to the USB console cable, disconnect the cable, and reinstall the drivers with administrator privileges. Then, reconnect the cable[2].
- Solution: Ensure the cable is properly connected to a powered device. Sometimes, Windows may not detect the device unless it is actively connected and powered on. Check for "Unknown Devices" in Device Manager and update the driver manually if necessary[4].
When troubleshooting issues with your USB console cable, it's essential to check all connections and ensure that the correct drivers are installed. If you're using a Cisco device, ensure you have the latest Cisco USB console drivers installed. However, some users have reported success using generic drivers instead of Cisco-specific ones[2][4].
When selecting components for your USB to RJ45 console cable, consider the quality and compatibility of the USB-to-serial adapter. Popular chipsets include FTDI and Prolific, which are known for their reliability and compatibility with various operating systems.
While building your own cable can be cost-effective, pre-made cables are often more convenient and reliable. They typically come with the necessary drivers and are designed to work seamlessly with most network devices. However, if you prefer a DIY approach or need a custom solution, building your own cable can be a rewarding project.
Creating a USB to RJ45 console cable is a practical solution for network administrators. By following the steps outlined above, you can build your own cable using readily available components. However, if you prefer a hassle-free experience, pre-made cables are also available from manufacturers like StarTech.
A USB to RJ45 console cable is used to connect a computer to the console port of a network device, such as a Cisco router or switch, allowing for configuration, troubleshooting, and firmware updates.
You need a USB connector, a USB-to-serial adapter, Cat5e or Cat6 cable, an RJ45 connector, and basic electronics tools like a soldering iron.
Typically, you would use settings like 9600 baud, 8 data bits, no parity, and 1 stop bit. Ensure these settings match the device's requirements.
Ensure that the USB-to-serial drivers are installed and that the cable is properly connected. Check Device Manager for the assigned COM port.
Yes, but ensure it supports the necessary baud rates and is compatible with your operating system. Popular chipsets include FTDI and Prolific.
