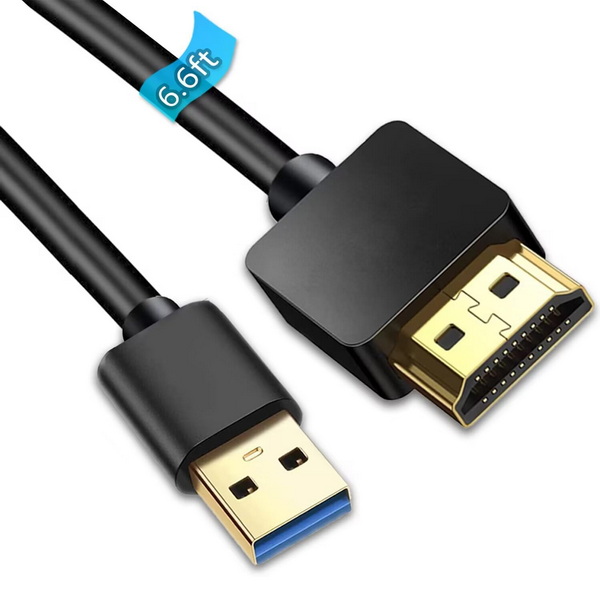

Creating a USB to HDMI cable is not a straightforward process due to the fundamental differences between USB and HDMI signals. However, with the right components and adapters, you can achieve a connection that allows you to display video from a USB device on an HDMI display. This guide will walk you through the process, highlighting the necessary components, potential challenges, and alternative solutions.
Introduction
USB and HDMI are two distinct technologies designed for different purposes. USB is primarily used for data transfer and device connectivity, while HDMI is specifically designed for transmitting high-definition video and audio signals. To connect a USB device to an HDMI display, you need a device or cable that can convert the USB signal into an HDMI-compatible format.
Understanding USB and HDMI
- USB (Universal Serial Bus): A standard interface for connecting devices to a computer. It supports various speeds, including USB 1.0, 2.0, 3.0, and newer versions like USB-C, which can also support video output through alternate modes.
- HDMI (High-Definition Multimedia Interface): A digital interface for transmitting video and audio signals. It is commonly used to connect devices like Blu-ray players, gaming consoles, and computers to TVs and projectors.
Creating a USB to HDMI Connection
To create a USB to HDMI connection, you typically need a device that can convert the USB signal into an HDMI signal. This is often achieved using a USB-based video adapter or a device with HDMI output capability.
Using a USB-Based Video Adapter
A common method is to use a USB-based video adapter, such as those from DisplayLink. These adapters act as a USB-to-HDMI converter, allowing you to connect your computer to an HDMI display via USB.
DisplayLink adapters are popular for extending desktops or adding additional monitors to a computer. They work by converting the USB signal into a video signal that can be understood by an HDMI display. However, the video performance might not be as smooth as a direct HDMI connection, especially for high-resolution or fast-paced content.
DIY Approach
While it's challenging to create a pure USB to HDMI cable without any conversion, you can make a USB-C to HDMI cable if your device supports USB-C with HDMI alternate mode. This involves using a USB-C connector and an HDMI connector, along with the necessary circuitry to support the signal conversion.

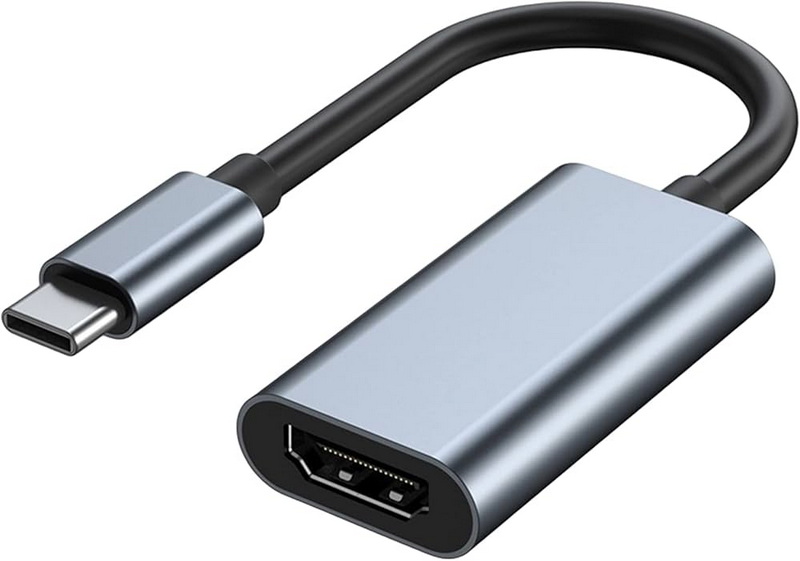

Creating a USB-C to HDMI cable requires careful consideration of the signal conversion process. USB-C is a versatile port that can support multiple protocols, including HDMI, through alternate modes. If your device supports this feature, you can use a USB-C to HDMI adapter or cable to connect directly to an HDMI display.
Challenges and Considerations
1. Signal Conversion: The primary challenge is converting the USB signal into an HDMI signal. This requires a sophisticated converter or adapter that can handle the signal conversion efficiently.
2. Performance: The performance of USB-based video adapters can vary. They might not support high-resolution video or fast frame rates as well as a direct HDMI connection.
3. Compatibility: Ensure that your device supports the necessary protocols for video output via USB. For example, USB-C devices can support HDMI alternate mode, allowing them to output video directly to an HDMI display.
4. Cost and Availability: The cost of adapters and converters can vary widely. Some high-quality adapters might be more expensive, but they often provide better performance and compatibility.
5. Future Developments: As technology advances, we may see more devices supporting direct video output through USB, potentially simplifying the process of connecting USB devices to HDMI displays.
Alternatives and Solutions
If creating a USB to HDMI cable is not feasible, consider these alternatives:
- USB-C with HDMI Alternate Mode: If your device supports USB-C with HDMI alternate mode, you can use a USB-C to HDMI adapter to connect to an HDMI display. This method provides a direct and efficient way to output video.
- DisplayPort to HDMI Adapters: Some devices support DisplayPort output, which can be converted to HDMI using a DisplayPort to HDMI adapter. This is useful for devices that do not have HDMI ports but support DisplayPort.
- Wireless Solutions: Consider using wireless streaming devices like Chromecast or Apple TV to stream content from your device to a TV without cables. These devices offer convenience and flexibility, especially in environments where cable management is a concern.
Wireless Streaming Devices
Wireless streaming devices have become increasingly popular due to their ease of use and flexibility. They allow you to stream content from your device to a TV without the need for cables, which can be particularly useful in environments where cable clutter is a problem. Devices like Chromecast and Apple TV support a wide range of apps and services, making them versatile options for streaming video content.
Advanced Technologies and Future Directions
As technology continues to evolve, we are seeing advancements in both USB and HDMI technologies. For example, USB4 and Thunderbolt 4 offer higher speeds and more versatile connectivity options, including support for video output. Similarly, HDMI 2.1 supports higher resolutions and refresh rates, making it ideal for gaming and high-definition video applications.
USB4 and Thunderbolt 4
USB4 and Thunderbolt 4 are next-generation connectivity standards that offer significant improvements over their predecessors. They support higher speeds and can handle multiple protocols, including video output. This means that devices equipped with these ports can potentially output video directly to HDMI displays using the right adapters or cables.
HDMI 2.1
HDMI 2.1 is the latest version of the HDMI standard, offering support for higher resolutions like 8K and faster refresh rates. It is designed to meet the demands of modern gaming and high-definition video applications. While it does not directly impact the creation of USB to HDMI cables, it highlights the ongoing advancements in display technology and the importance of having compatible and efficient connectivity solutions.
Troubleshooting Common Issues
When using USB-based video adapters or USB-C to HDMI adapters, you might encounter some common issues:
- No Signal: Ensure that the adapter is properly connected and that the device supports the necessary protocols for video output.
- Poor Video Quality: Check if the adapter supports the resolution and frame rate you are trying to output. Upgrading to a higher-quality adapter might improve performance.
- Compatibility Issues: Verify that the adapter is compatible with your device and display. Some adapters may require specific drivers or software to function correctly.
Conclusion
Creating a USB to HDMI cable is complex due to the inherent differences between USB and HDMI technologies. However, with the right adapters and devices, you can achieve a connection that allows you to display video from a USB device on an HDMI display. Always ensure compatibility and consider the performance limitations of USB-based video adapters. As technology continues to evolve, we can expect more efficient and versatile connectivity solutions.
Frequently Asked Questions
1. Can I make a USB to HDMI cable without any adapters?
- No, you cannot make a pure USB to HDMI cable without a converter or adapter. USB and HDMI signals are fundamentally different and require conversion.
2. What is the best way to connect a USB device to an HDMI display?
- The best method is to use a USB-based video adapter like DisplayLink or a device that supports USB-C with HDMI alternate mode.
3. Do USB to HDMI cables support high-resolution video?
- USB-based video adapters may not support high-resolution video as well as a direct HDMI connection. Performance can vary depending on the adapter and device.
4. Can I use a USB-C to HDMI adapter for high-speed video?
- Yes, if your device supports USB-C with HDMI alternate mode, you can use a USB-C to HDMI adapter for high-speed video connections.
5. Are there any wireless alternatives to USB to HDMI cables?
- Yes, you can use wireless streaming devices like Chromecast or Apple TV to stream content from your device to a TV without cables.
6. How do I ensure compatibility between my device and the HDMI display?
- Ensure that your device supports the necessary protocols for video output via USB or USB-C. Check the specifications of both your device and the HDMI display to confirm compatibility.
7. What are the limitations of using a USB-based video adapter?
- USB-based video adapters may not support high-resolution video or fast frame rates as well as a direct HDMI connection. They are best suited for general office use or low-demand video applications.
8. Can I use a USB-C to HDMI adapter for gaming?
- While a USB-C to HDMI adapter can work for gaming, it may not provide the same level of performance as a direct HDMI connection. It depends on the device's support for HDMI alternate mode and the quality of the adapter.
9. How do I troubleshoot issues with my USB to HDMI connection?
- Start by checking the connections and ensuring that all devices are properly powered on. If issues persist, try updating drivers or using a different adapter.
10. Are there any future developments that might simplify creating USB to HDMI connections?
- Yes, advancements in USB and HDMI technologies, such as USB4 and HDMI 2.1, are expected to improve connectivity options and potentially simplify the process of connecting USB devices to HDMI displays.
