Creating a USB RX TX cable involves understanding the basics of serial communication and how USB-to-serial converters work. This guide will walk you through the process, including the necessary components, wiring, and troubleshooting tips.
Introduction to Serial Communication
Serial communication is a method of transmitting data one bit at a time over a communication channel. It is commonly used in devices like microcontrollers, computers, and other electronic systems. The two primary pins involved in serial communication are TX (Transmit) and RX (Receive). The TX pin sends data, while the RX pin receives it.
Understanding USB-to-Serial Converters

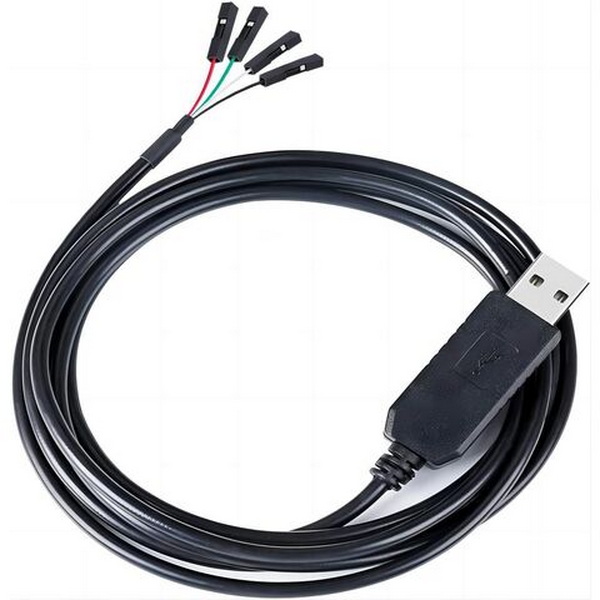

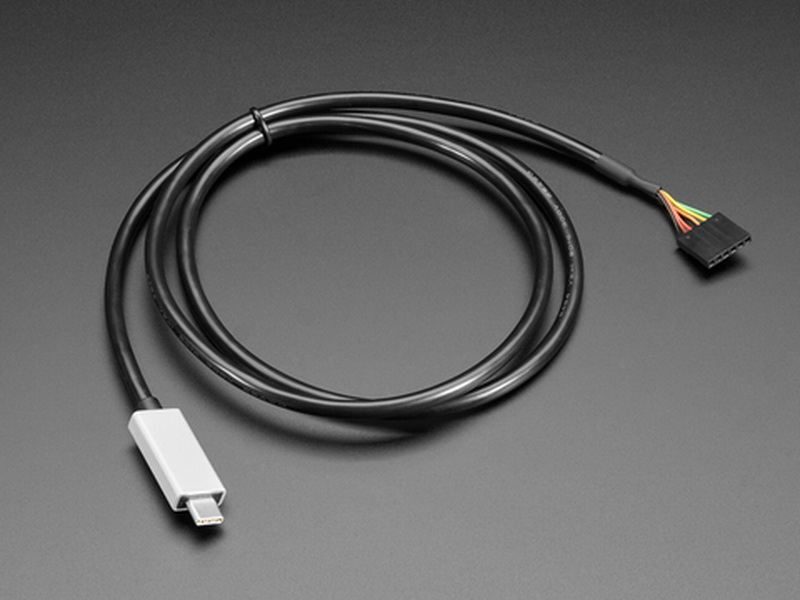

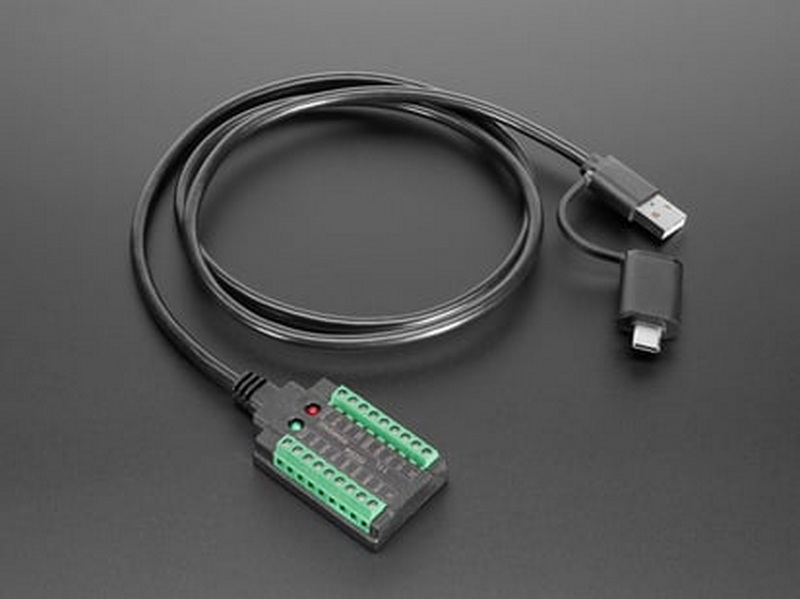

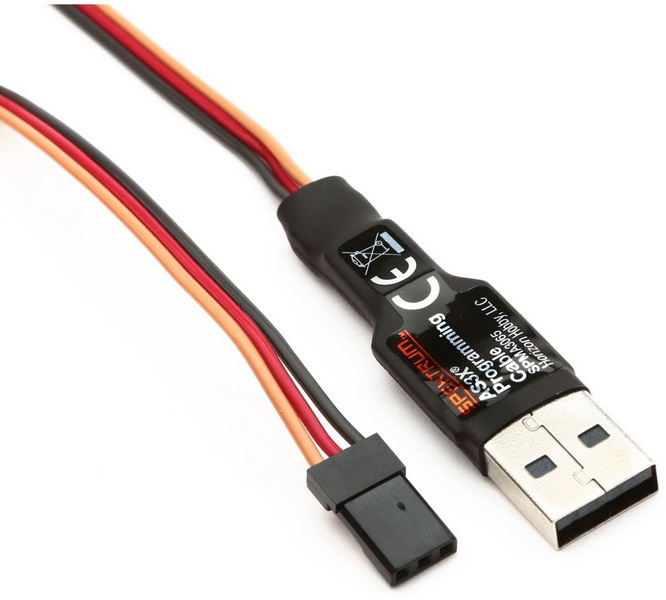

USB-to-serial converters are devices that convert USB signals into serial signals, allowing communication between a USB port and a serial device. These converters are essential for connecting devices that do not have a USB interface to a computer. They come in various forms, including USB-to-TTL serial adapters and USB-to-RS232 converters, each suited for different types of serial communication.
Components Needed
To create a USB RX TX cable, you will need the following components:
- USB-to-Serial Converter: This is the core component that converts USB signals to serial signals. Popular options include FTDI and PL2303 converters.
- Jumper Wires: For connecting the converter to your device. Ensure they are long enough to reach all necessary pins.
- Breadboard (Optional): For prototyping and testing. It helps keep your setup organized and makes it easier to modify connections.
- Multimeter: For troubleshooting and identifying pins. It's indispensable for checking voltage levels and continuity.
- Power Source (Optional): If your device requires external power, you may need a separate power source.
Wiring the USB-to-Serial Converter
Wiring the converter involves connecting the TX and RX pins correctly. Here's a step-by-step guide:
1. Connect the 5V Pin: If your device requires power from the USB port, connect the 5V pin from the converter to the 5V input on your device. Alternatively, you can power your device separately and only connect the ground.
2. Connect TX and RX Pins: Connect the TX pin on the converter to the RX pin on your device, and the RX pin on the converter to the TX pin on your device. This might seem counterintuitive, but remember that TX sends data, and RX receives it.
3. Connect Ground: Ensure that the ground pins are connected between the converter and your device. This is crucial for maintaining a common reference voltage.
Troubleshooting Tips
If your setup doesn't work as expected, here are some troubleshooting tips:
- Check the Voltage: Ensure that the voltage levels match between your device and the converter. Most converters support both 3.3V and 5V.
- Swap TX and RX: If data isn't being transmitted correctly, try swapping the TX and RX connections.
- Use a Multimeter: Identify the correct pins using a multimeter. This is especially useful if you're unsure about the pinout of your device.
Common Issues and Solutions
Swapped TX and RX Wires
If your TX and RX wires are swapped, you might experience communication issues. To fix this, simply swap the connections. This is a common mistake, especially when working with devices that have similar pinouts.
Incorrect Voltage
Using the wrong voltage can damage your device. Ensure that your converter and device operate at the same voltage level. If your device requires 3.3V but your converter outputs 5V, you may need a voltage regulator.
Power Issues
If your device is not receiving power, check that the 5V pin is correctly connected and that your USB port is supplying power. Some USB ports may not provide power when the computer is in sleep mode or turned off.
Advanced Applications
USB RX TX cables are not just limited to basic serial communication. They can be used in a variety of advanced applications:
- Microcontroller Programming: Many microcontrollers, like Arduino boards, use serial communication for programming. A USB-to-serial converter is essential for uploading code.
- Robotics and IoT Projects: Serial communication is often used in robotics and IoT projects to communicate between different modules or devices.
- Debugging: Serial output can be used to debug code or monitor system status in real-time.
Customizing Your Cable
If you need a custom setup, you can create your own USB RX TX cable from scratch. This involves soldering the converter to a custom PCB or using a breadboard for prototyping. Custom cables can be more reliable and tailored to specific needs, such as longer distances or specific voltage requirements.
Tips for Custom Cables
- Use Shielded Cables: For longer distances, use shielded cables to reduce electromagnetic interference.
- Choose the Right Converter: Select a converter that matches your device's voltage and communication protocol.
- Test Thoroughly: Before finalizing your custom cable, test it thoroughly to ensure reliability.
Conclusion
Creating a USB RX TX cable is a straightforward process that requires understanding the basics of serial communication and using the right components. By following the steps outlined in this guide and troubleshooting common issues, you can successfully connect your devices using a USB-to-serial converter. Whether you're working on a simple project or an advanced application, a well-made USB RX TX cable can be indispensable.
Frequently Asked Questions
1. How do I identify the TX and RX pins on my device?
- Use a multimeter to identify the pins. Connect the multimeter to the probable TX pin and type something in the terminal. If the LED on your device flashes, it's the TX pin.
2. Can I use a USB-to-serial converter with any device?
- Yes, as long as the device supports serial communication. Ensure the voltage levels match.
3. Why is my device not receiving power from the USB port?
- Check that the 5V pin is connected correctly and that your USB port is supplying power.
4. How do I troubleshoot a non-working serial connection?
- Check the TX and RX connections, ensure the correct voltage is used, and use a multimeter to identify pins.
5. Can I create a custom USB RX TX cable?
- Yes, by using a USB-to-serial converter and jumper wires. Ensure correct wiring and voltage matching.
