Creating a USB power cable can be a fun and rewarding DIY project, especially for those interested in electronics and maker projects. This guide will walk you through the process of making a USB power cable, including the materials needed, step-by-step instructions, and troubleshooting tips. Additionally, we will explore common questions and answers related to USB power cables.
Introduction to USB Power Cables
USB power cables are essential for charging and powering electronic devices. They convert AC power from a wall outlet into DC power that devices can use. The process involves using a USB power adapter, which typically includes a small box with a USB port and a plug for the wall socket.
Materials Needed
To make a basic USB power cable, you will need the following materials:
- USB Cable: You can use an old USB cable for this project.
- Wire Stripper: To strip the insulation from the wires.
- Jumper Wires: For connecting to devices.
- Soldering Iron (optional): If you prefer a soldered connection.
- Multimeter: To test the voltage output.
- 5V Power Source: Such as a wall charger or power bank.
Step-by-Step Instructions
1. Cut the USB Cable: Determine the desired length of your cable and cut it accordingly.

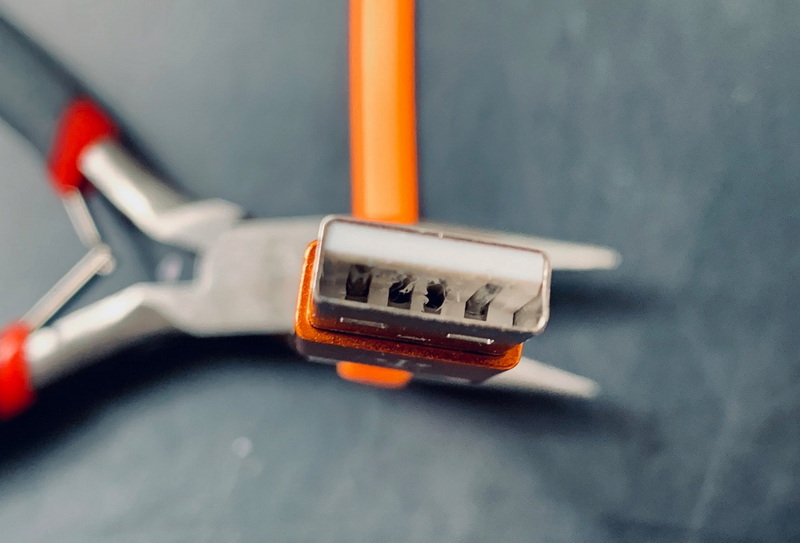

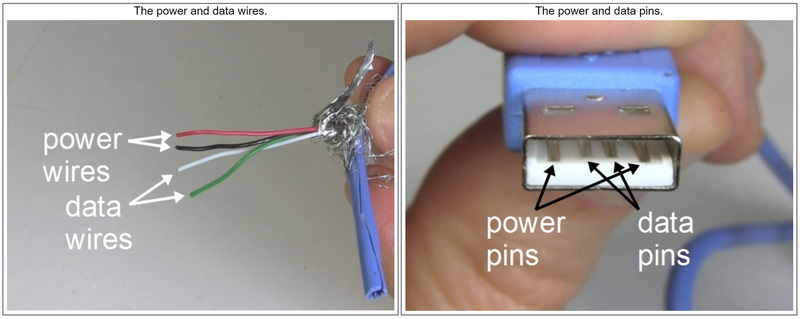

2. Strip the Wires: Use a wire stripper to expose the inner wires. Typically, you will find four wires: red (positive), black (ground), and two data wires (white and green).
3. Identify Power Wires: The red and black wires are used for power. You can clip the data wires as they are not needed for power supply.

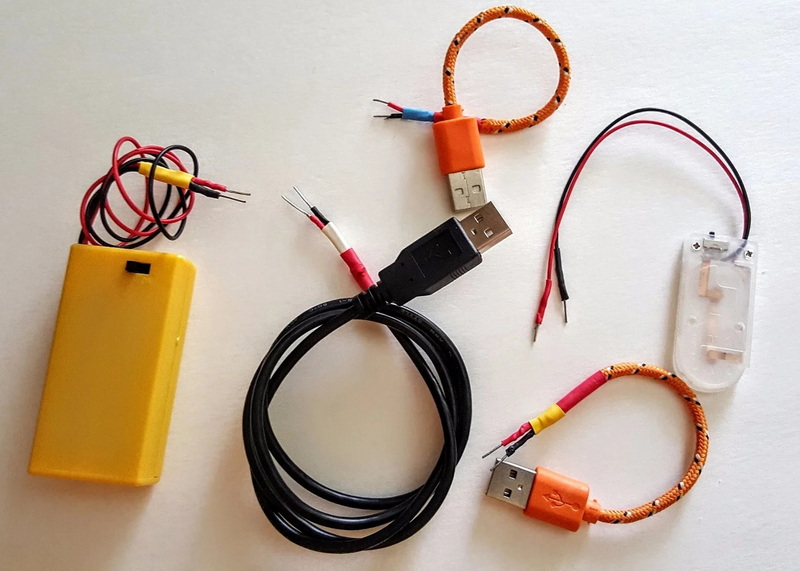

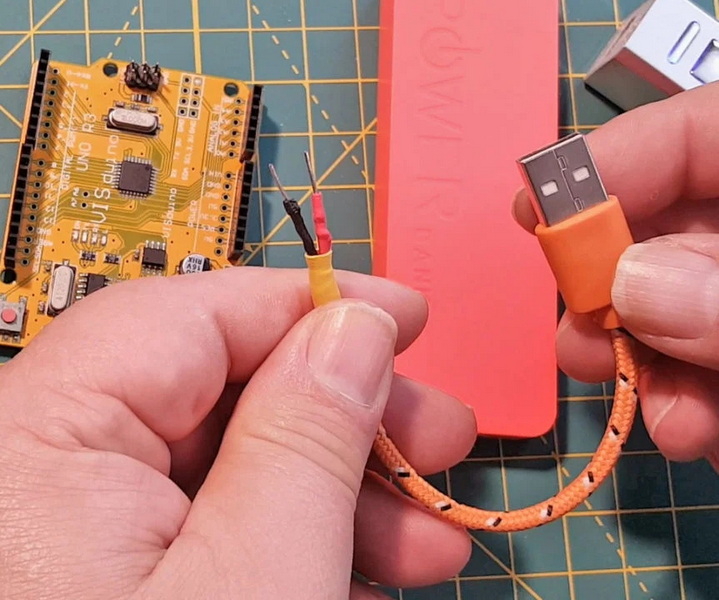

4. Connect Jumper Wires: Attach jumper wires to the red and black wires. If using a soldering iron, solder these connections for a more secure bond.
5. Test the Cable: Use a multimeter to ensure you are getting 5V from the cable when connected to a power source.
Common Applications
USB power cables are versatile and can be used in various projects, such as powering Arduino boards or other microcontrollers. They are also useful for connecting devices that require a direct power supply without data transfer.
Using Power Banks
Power banks are excellent sources of 5V power for mobile projects. They are rechargeable, portable, and come in various capacities. Power banks are particularly useful for outdoor projects where access to a wall outlet is limited.
Safety Considerations
When working with electrical components, safety is paramount. Always ensure that your workspace is well-ventilated and free from flammable materials. Use protective gear like gloves and safety glasses when handling tools.
Troubleshooting Tips
- Voltage Check: Always verify the voltage output using a multimeter to ensure it matches your device's requirements.
- Connection Issues: Check for loose connections or damaged wires if your device is not receiving power.
- Overheating: If your cable or device is overheating, it may indicate a short circuit or excessive current draw.
Materials for High-Performance USB Cables
For high-performance USB cables, materials like high-performance polyamides (PA46 and PA4T) are recommended for their mechanical and electrical properties. These materials enhance the reliability and safety of USB connectors, especially in newer USB-C designs.
High-performance USB cables often feature braided shielding nets and aluminum foil to reduce electromagnetic interference (EMI) and improve signal quality. Copper cores are used for their excellent conductivity, ensuring efficient power delivery.
USB-C and Its Advantages
USB-C is a newer standard that offers faster data transfer rates and higher power delivery capabilities compared to traditional USB-A. USB-C cables can support up to 100W of power, making them suitable for charging larger devices like laptops.
Customizing Your USB Power Cable
If you need a custom length or specific connector type, you can modify your USB power cable accordingly. For instance, you might want to add a USB-C connector for newer devices or extend the cable for better reach.
Advanced Projects
For more advanced projects, you might consider integrating USB power cables into custom enclosures or using them with other components like voltage regulators or DC-DC converters. These components can help stabilize the voltage output or step down the voltage for devices requiring lower voltages.
Voltage Regulators
Voltage regulators are essential in projects where the input voltage needs to be adjusted to match the device's requirements. For example, if you're using a 12V power source but need 5V for your device, a voltage regulator can safely step down the voltage.
DC-DC Converters
DC-DC converters are similar to voltage regulators but offer higher efficiency and flexibility. They can step up or step down voltages and are often used in applications requiring precise voltage control.
Conclusion
Making a USB power cable is a straightforward DIY project that can be useful for various electronic projects. By understanding the materials and steps involved, you can create reliable power cables for your devices. Whether you're working with Arduino boards or simply need a custom power solution, this guide provides the necessary information to get started.
Frequently Asked Questions
1. What Materials Are Used in High-Performance USB Cables?
High-performance USB cables often feature materials like braided shielding nets, aluminum foil, and copper cores for better signal quality. For connectors, high-performance polyamides are favored for their durability and electrical properties.
2. Can USB Cables Be Used for Both Data and Charging?
Yes, most USB cables support both data transfer and charging. However, some older USB-B cables might only offer data transfer capabilities.
3. How Do I Identify the USB Version of My Cable?
You can identify the USB version by checking the packaging or manufacturer's information. USB 3.0 cables typically have blue plastic inside the connector, while USB 2.0 cables have white or black plastic.
4. What Are the Different Types of USB Power Adapters?
USB power adapters come in various types, including standard USB-A, USB-C, multi-port adapters, and wireless adapters. USB-C adapters can deliver higher power outputs and support faster charging.
5. Can USB Power Modules Charge Multiple Devices?
Yes, USB power modules can charge multiple devices simultaneously. However, the charging speed may decrease as the current is shared across ports.
