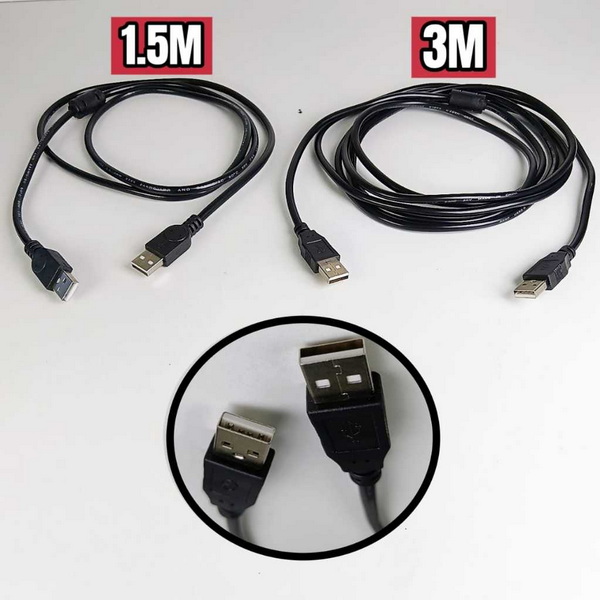

Creating a USB male to male cable can be a useful project for connecting devices that require direct USB communication without the need for a host device. This type of cable is less common but can be essential for specific applications, such as powering USB devices through a hub or connecting certain types of equipment directly.
Understanding USB Cables
Before diving into the DIY process, it's important to understand the basic structure of a USB cable. A standard USB cable consists of four wires: two for power (red and black) and two for data (green and white). The colors may vary depending on the manufacturer, so it's crucial to identify the correct wires using a multimeter.
Materials Needed
To make a USB male to male cable, you will need the following materials:
- Two spare USB cables or one spare cable and a USB type A male plug.
- Multimeter for testing wire continuity.
- Soldering equipment (soldering iron and solder).
- Wire strippers or cutting pliers.
- Electrical tape or heat shrink tubes for insulation.
- Hot glue or superglue for securing the connectors.
Step-by-Step Guide to Making a USB Male to Male Cable
Step 1: Prepare the Cables

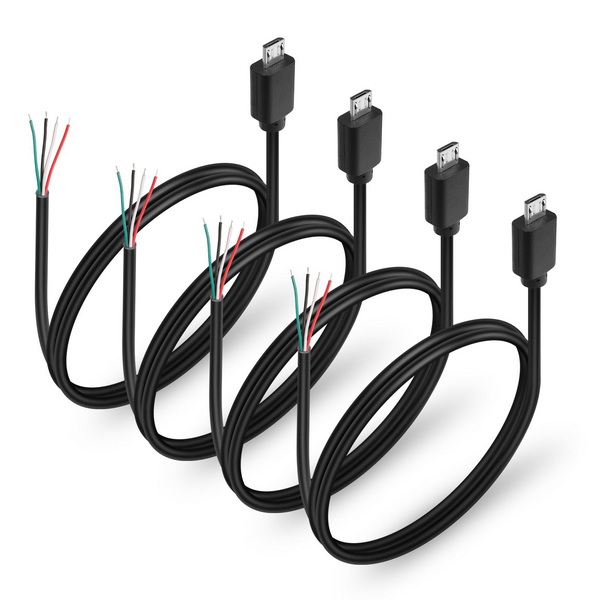

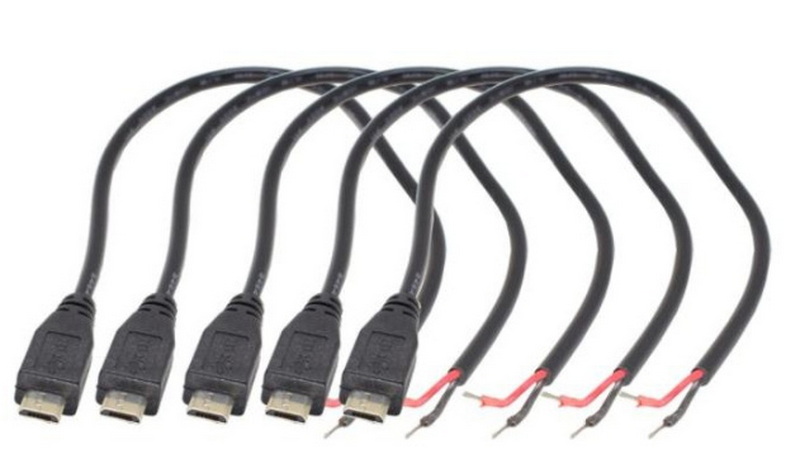

1. Cut the Ends: Cut both ends of the USB cables to expose the internal wires.
2. Strip the Wires: Use wire strippers to remove about 2 cm of the insulation from each wire.
Step 2: Identify Wire Correspondences
Use a multimeter to identify which wire corresponds to which pin on the USB connector. The standard pinout for a USB type A connector is:
- Pin 1: VCC (red)
- Pin 2: D- (white)
- Pin 3: D+ (green)
- Pin 4: GND (black)
Step 3: Solder the Wires
1. Match the Wires: Connect the corresponding wires from each cable together (VCC to VCC, D- to D-, D+ to D+, GND to GND).
2. Solder the Joints: Use a soldering iron to solder the matched wires together.
Step 4: Insulate the Cables
1. Use Electrical Tape or Heat Shrink Tubes: Wrap each soldered joint with electrical tape or heat shrink tubes to prevent shorts.
2. Secure the Connectors: Use hot glue or superglue to secure the USB connectors to the cable ends.
Step 5: Test the Cable
1. Connect Devices: Plug the cable into two devices that can communicate via USB.
2. Verify Functionality: Ensure that data can be transferred or power is delivered as expected.
Common Applications
USB male to male cables are not as common as other types but can be useful in specific scenarios:
- Powering Devices: Connecting a device to a powered USB hub.
- Data Transfer: Directly connecting two devices for data transfer without a host.
Customizing Your Cable
If you want to customize your cable for aesthetic or durability reasons, you can use materials like paracord or PET sleeves to give it a unique look.
Materials for Customization
- Paracord: For a durable and stylish outer sheath.
- PET Sleeve: Adds an extra layer of protection and customization options.
- Heat Shrink Tubes: For insulating and protecting the soldered joints.
Customization Steps
1. Install Paracord Sheath: Wrap the paracord around the cable for a rugged look.
2. Install PET Sleeve: Slide the PET sleeve over the cable for added protection.
3. Apply Heat Shrink Tubes: Use heat shrink tubes to secure and protect the soldered connections.
Safety Precautions
When working with electrical components, safety is paramount. Always ensure that you are in a well-ventilated area and avoid touching electrical components with your bare hands. Use protective gear like gloves and safety glasses to prevent accidents.
Safety Equipment
- Gloves: Insulated gloves can protect you from electrical shocks.
- Safety Glasses: Protect your eyes from solder splashes.
- Ventilation: Work in a well-ventilated area to avoid inhaling solder fumes.
Troubleshooting Common Issues
If your cable doesn't work as expected, here are some common issues to check:
- Short Circuits: Ensure that no wires are touching each other.
- Incorrect Wire Connections: Verify that the wires are correctly matched and soldered.
- Insufficient Insulation: Make sure all soldered joints are properly insulated.
Advanced Customizations
For those interested in advanced customizations, you can explore using different materials for the cable's outer sheath, such as braided nylon or silicone sleeves. These materials can provide additional durability and resistance to wear and tear.
Advanced Materials
- Braided Nylon: Offers flexibility and resistance to abrasion.
- Silicone Sleeves: Provides flexibility and protection against moisture.
Advanced Customization Steps
1. Install Braided Nylon Sleeve: Wrap the braided nylon around the cable for added flexibility.
2. Install Silicone Sleeve: Slide the silicone sleeve over the cable for moisture protection.
Conclusion
Making a USB male to male cable is a straightforward DIY project that requires basic electronics knowledge and tools. It can be useful for specific applications where direct USB communication is needed. Always ensure that the cable is properly insulated and tested to avoid any electrical issues.
Frequently Asked Questions
1. What is the purpose of a USB male to male cable?
A USB male to male cable is used to connect two devices directly without the need for a host device. It can be useful for powering devices through a USB hub or for specific data transfer applications.
2. How do I identify the wires in a USB cable?
Use a multimeter to identify the wires. Typically, red is VCC, white is D-, green is D+, and black is GND. However, colors may vary, so always verify with a multimeter.
3. Can I use any USB cable for this project?
No, you need to ensure that the cables you use are compatible with your project. Standard USB cables work well, but always check the wire colors and pinouts.
4. Is it safe to make a USB male to male cable?
Yes, it is safe if done correctly. Ensure proper insulation and avoid short circuits to prevent electrical hazards.
5. Can I customize the cable's appearance?
Yes, you can customize the cable using materials like paracord or PET sleeves for a unique look and added durability.
