Creating a USB data transfer cable can be a rewarding DIY project, allowing you to customize the length and features of your cable according to your needs. This guide will walk you through the process step-by-step, including materials needed, detailed instructions, and troubleshooting tips.
Introduction to USB Data Transfer Cables
USB data transfer cables are essential tools for transferring files between devices, charging gadgets, or even powering small electronics. While store-bought options are widely available, making your own cable can offer flexibility and cost savings.
Types of USB Connectors
USB connectors come in various shapes and types, including:

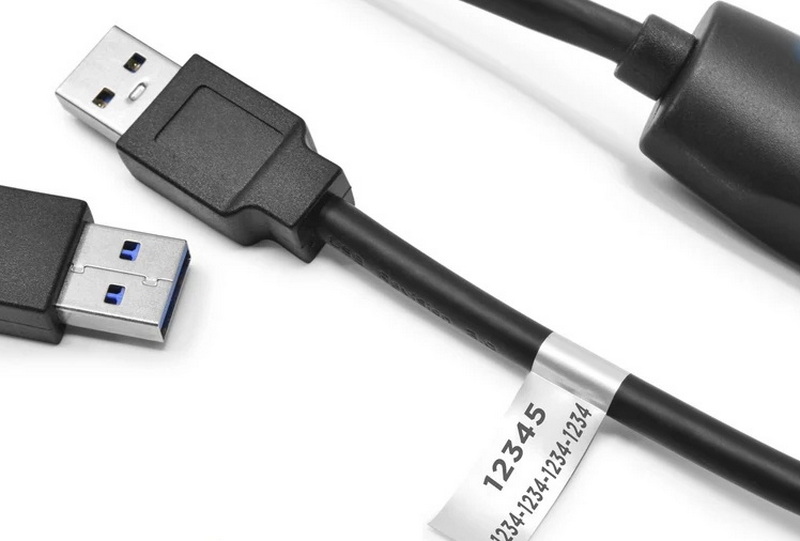

- Type-A: The standard rectangular connector found on most computers.
- Type-B: Square-shaped connectors often used for printers.

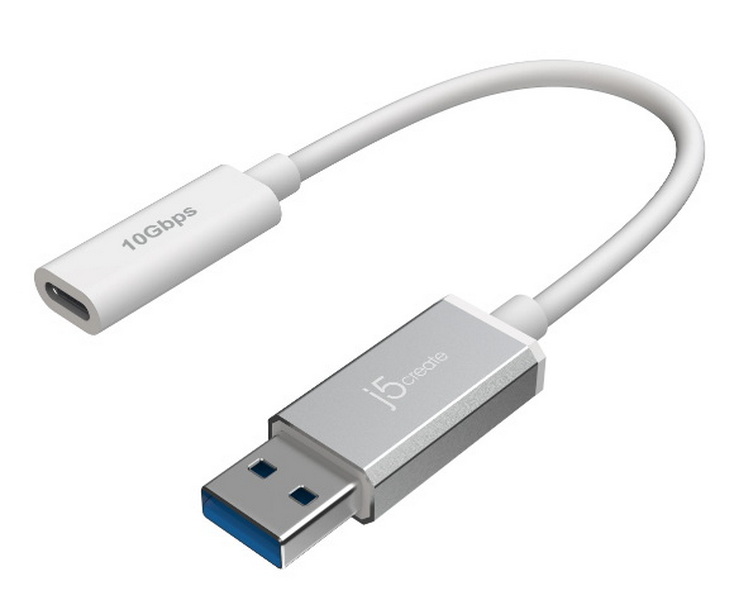

- Type-C: A reversible connector used for modern devices.
- Mini and Micro USB: Smaller connectors used for portable devices.
Each connector type serves different purposes, so understanding your requirements is crucial before starting the DIY process.
Materials Needed
To create your own USB data transfer cable, gather the following materials:
- Cat-5 or Other Suitable Cable: This cable provides the necessary wires for data transfer.
- Two USB Connectors: Choose Type-A or Type-C, depending on your needs.
- Soldering Iron and Solder: Essential for connecting wires to the USB connectors.
- Heat Shrink Tubing: For insulating and protecting the soldered joints.
- Wire Strippers and Pliers: Tools for preparing the wires.
- Electrical Tape (Optional): For added protection.
- Multimeter (Optional): For testing continuity.
Step-by-Step Guide
Step 1: Cut the Cable to Desired Length
Cut the Cat-5 cable to the length you need. This allows you to customize the cable for your specific setup.
Step 2: Strip the Insulation
Strip about 2 cm of insulation from both ends of the cable to expose the wires inside. Use wire strippers for this task.
Step 3: Identify the Essential Wires
Identify the four essential wires:
- Red: Power (+5V)
- Black: Ground (GND)
- White: Data-
- Green: Data+
Step 4: Open the USB Connectors
Carefully open the USB connectors using pliers to access the pins inside.
Step 5: Solder the Wires
Solder each wire to its corresponding pin on one connector:
- Red wire to Pin 1 (Power)
- White wire to Pin 2 (Data-)
- Green wire to Pin 3 (Data+)
- Black wire to Pin 4 (Ground)
Repeat the process for the second connector at the other end of the cable.
Step 6: Insulate and Protect
Slide heat shrink tubing over each soldered joint and shrink it using a heat source. Cover any exposed wires with electrical tape for added protection.
Step 7: Test the Cable
Use a multimeter to check continuity between corresponding pins on both ends of the cable. Connect your cable to devices and verify that it works for data transfer or charging.
Customizing Your Cable
Adding Features
Consider adding additional features to your cable:
- LED Indicators: Add small LEDs to indicate power or data transfer.
- Shielding: Use shielded cables to reduce electromagnetic interference (EMI).
- Custom Lengths: Make cables of specific lengths tailored to your workspace or setup.
Tips for Customization
- Choose High-Quality Materials: Use durable cables and connectors to ensure longevity.

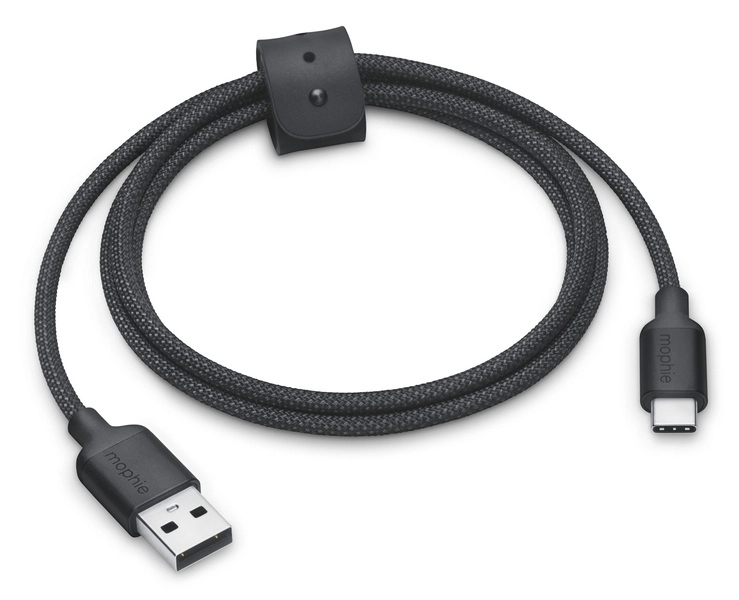

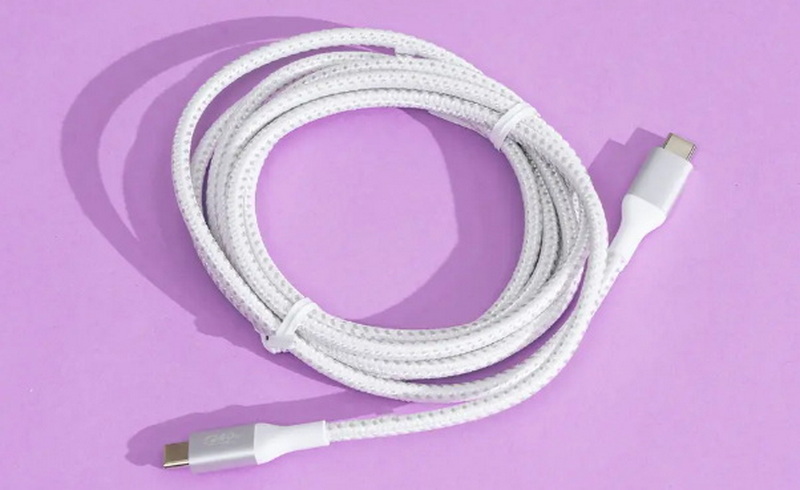

- Add Sleeving: For aesthetics, add braided sleeving over your cable.
- Label Ends: Mark one end as "Device" and the other as "Host" for easy identification.
Troubleshooting Common Issues
Cable Doesn't Work
If your cable doesn't work, check the following:
- Ensure all wires are securely soldered to the correct pins.
- Use a multimeter to verify there are no breaks in the wires.
- Check for proper insulation to prevent short circuits.
Electromagnetic Interference
Minimize electromagnetic interference by using shielded cables.
Power Load
Ensure the cable is not carrying too much power.
Advanced Customization Techniques
Using Different Materials
Experiment with different materials for your cable, such as using copper wires for better conductivity or fiber optic cables for high-speed data transfer.
Enhancing Durability
To enhance durability, consider adding a protective outer sleeve or using reinforced connectors.
Creating a USB Hub
You can also create a USB hub by connecting multiple USB connectors to a single cable, allowing you to connect multiple devices at once.
Safety Precautions
When working with electrical components, safety is paramount:
- Always use protective gear like gloves and safety glasses.
- Ensure your workspace is well-ventilated and free from flammable materials.
- Never touch electrical components with wet hands.
Common Mistakes to Avoid
- Incorrect Wire Connections: Double-check that wires are connected to the correct pins.
- Insufficient Insulation: Ensure all soldered joints are properly insulated.
- Using Low-Quality Materials: Invest in high-quality materials for better performance and durability.
Future Developments in USB Technology
As technology advances, new types of USB connectors and faster data transfer speeds are being developed. Stay updated with the latest standards to ensure your DIY cables remain compatible with future devices.
Conclusion
Creating a USB data transfer cable is a straightforward DIY project that allows you to customize your cable according to your needs. By following the steps outlined in this guide, you can ensure a reliable and efficient data transfer solution.
FAQs
1. Can I Use Any Type of Wire to Make a USB Cable?
No, not all wires are suitable. You need wires that can handle the required voltage and data transfer speed, such as those found in Cat-5 cables.
2. What Tools Are Essential for This Project?
Essential tools include a soldering iron, solder, wire strippers, and pliers.
3. How Do I Ensure My DIY Cable Supports Fast Charging?
Use high-quality materials and ensure proper connections to support fast charging.
4. Can I Make a USB-C Cable with This Method?
Yes, you can make a USB-C cable using this method, but ensure you have the correct USB-C connectors.
5. What Should I Do If My Cable Doesn't Work?
Check the soldering, use a multimeter to test continuity, and ensure proper insulation.
