Making a USB cable can be a fun and rewarding DIY project, allowing you to customize your cables to fit specific needs or simply to learn more about electronics. In this guide, we will walk you through the process of creating a USB cable, including the materials needed, the steps involved, and some tips for ensuring your cable works properly.
USB (Universal Serial Bus) cables are widely used for connecting devices such as computers, printers, and smartphones. They come in various types, including USB-A, USB-B, and USB-C, each with different applications. For this guide, we will focus on making a male-to-male A-A USB cable, which is less common but useful for certain applications like powering USB hubs.
To make a USB cable, you will need the following materials:
- USB Cable or Plugs: You can use spare USB cables or purchase USB-A plugs.
- Soldering Equipment: A soldering iron, solder, and a soldering stand.
- Wire Strippers: To strip the insulation from the wires.
- Multimeter: For testing continuity and voltage.
- Electrical Tape or Heat Shrink Tubes: For insulation.
- Hot Glue or Superglue: For securing components.
First, cut the ends off your USB cables and strip about 2 cm of the outer insulation. You will find four wires inside, typically colored red, black, white, and green. Use a multimeter to identify which wire corresponds to which pin on the USB connector.
The standard USB pinout is as follows:
- Pin 1: VCC (Red)
- Pin 2: D- (White)
- Pin 3: D+ (Green)
- Pin 4: GND (Black)
Use your multimeter to confirm these correspondences.
Solder the corresponding wires from one cable to the other. For example, solder the red wire from one cable to the red wire from the other. Repeat this process for all four wires.
Once soldered, insulate the wires using electrical tape or heat shrink tubes to prevent shorts. You can also use hot glue to secure any loose parts.
Before using your new cable, test it with a multimeter to ensure there are no shorts and that the voltage is correct.

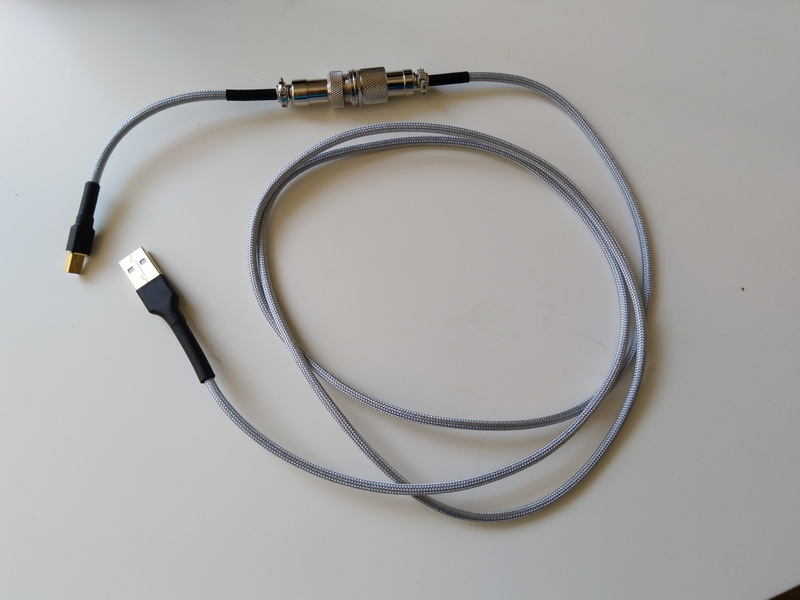

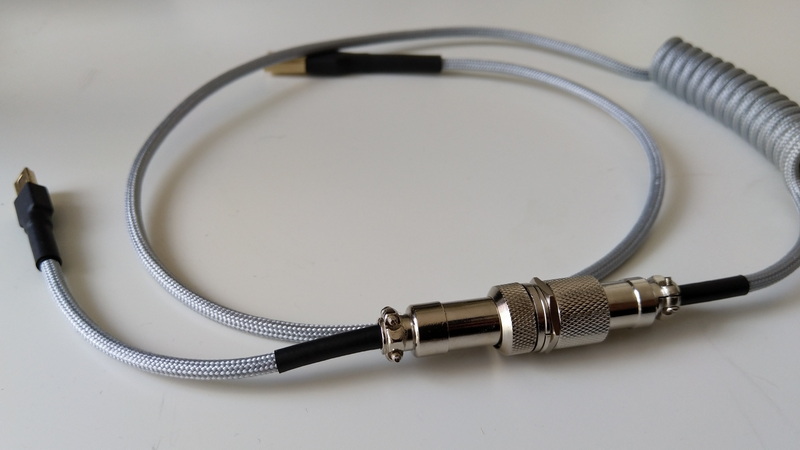

If you want to make your USB cable more durable or visually appealing, you can use materials like nylon or TPE for the outer casing. Nylon provides excellent strength and resistance to wear, while TPE is flexible and environmentally friendly.
Nylon is a popular choice for custom USB cables due to its durability and resistance to abrasion. It can withstand heavy use and is ideal for cables that will be frequently moved or exposed to harsh environments. On the other hand, TPE offers flexibility and can be molded into various shapes, making it suitable for cables that need to bend or twist.
You can also customize the design of your USB cable by using different colors or patterns for the insulation. This can be particularly useful if you want to differentiate your cables from others or match them with specific devices.

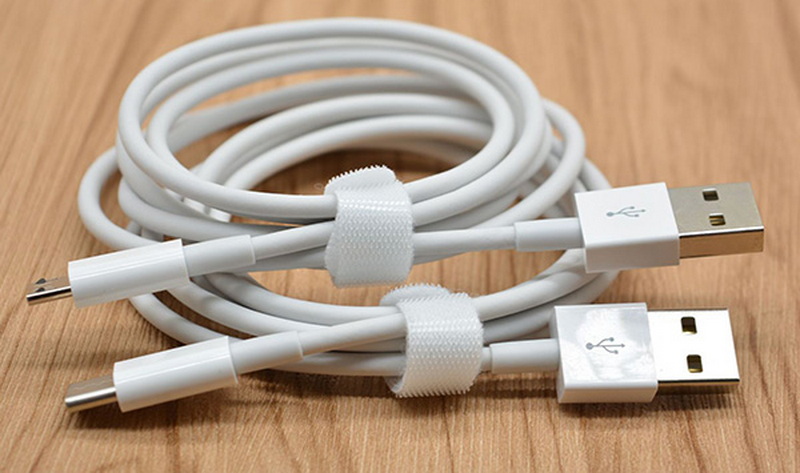

USB cables typically consist of copper or silver wires for conductivity, with PVC or TPE as the outer insulation. High-performance materials like nylon are used for added durability.
Copper wires are the most common choice for USB cables due to their excellent conductivity and affordability. However, silver wires offer even better conductivity and are used in high-performance cables where signal quality is critical.
PVC is a common insulation material due to its cost-effectiveness and ease of use. However, TPE is gaining popularity for its flexibility and environmental benefits. Nylon is used for its strength and durability.
When making a USB cable, common issues include incorrect wire connections or insulation failures. Always double-check your connections and ensure proper insulation to avoid these problems.
- Incorrect Connections: Use a multimeter to verify that each wire is connected to the correct pin.
- Insulation Failures: Ensure that all soldered joints are properly insulated with electrical tape or heat shrink tubes.
To prevent damage to your homemade USB cable, avoid bending it excessively or exposing it to high temperatures. Regularly inspect the cable for signs of wear and tear.
For those looking to take their DIY skills to the next level, you can experiment with advanced techniques such as using shielded cables for better signal protection or integrating additional components like USB hubs or splitters.
Shielded cables use a braided or foil shield around the wires to protect against electromagnetic interference (EMI). This is particularly useful for applications where signal integrity is crucial.
You can also integrate components like USB hubs or splitters into your custom cable. This allows you to create multi-functional cables that can power multiple devices or provide additional connectivity options.
Making a USB cable is a straightforward process that requires some basic electronics knowledge and tools. By following these steps and using the right materials, you can create custom USB cables tailored to your needs. Whether you're looking to power a USB hub or simply want to learn more about electronics, this guide provides a comprehensive overview of the process.
USB cables typically use copper or silver for the wires, with PVC or TPE as the outer insulation. Nylon is used for added durability.
Use a multimeter to identify which wire corresponds to which pin on the USB connector. The standard colors are red for VCC, black for GND, white for D-, and green for D+.
Male-to-male A-A USB cables are used for connecting devices that require external power, such as USB hubs, to a computer or another power source.
Use a multimeter to check for shorts and ensure the correct voltage is present. You can also test the cable by connecting it to a device and checking if it functions properly.
Common issues include incorrect wire connections and insulation failures. Always double-check your connections and ensure proper insulation.
