In today's digital age, USB cables are ubiquitous, connecting devices from computers to peripherals and beyond. However, the standard length of USB cables often falls short of our needs, especially when devices are placed far apart. This guide will walk you through the process of extending a USB cable, including DIY methods and the use of specialized equipment.

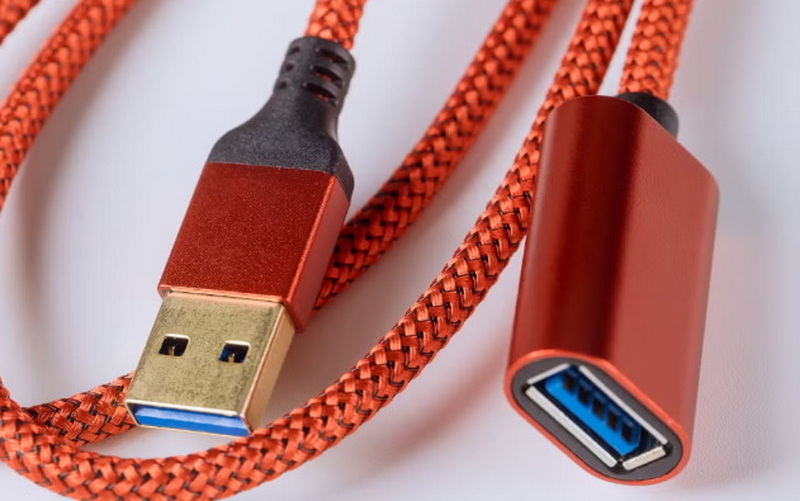

USB cables are designed to connect devices over short distances due to signal degradation issues. The maximum length for a standard USB 2.0 cable is about 5 meters, while USB 3.0 and later versions are limited to around 3 meters. To overcome these limitations, users can employ USB extenders or create their own extension cables.
Before diving into extending USB cables, it's essential to understand the pinout of a standard USB connector. A typical USB connector has four pins:
- Red (VCC): Power (+5V)
- Black (GND): Ground
- White (D-): Data negative
- Green (D+): Data positive
Additionally, many USB cables include a fifth wire for shielding, which helps reduce electromagnetic interference.

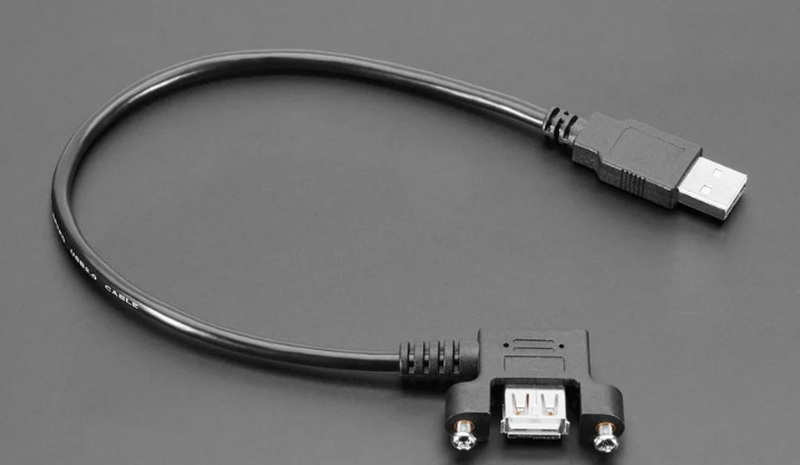

Creating a DIY USB extension cable can be a fun and cost-effective project. Here's a step-by-step guide:
- USB Male Connector (Type-A)
- USB Female Connector (Type-A)
- USB Cable (Existing or shielded wire)
- Soldering Iron and Solder
- Wire Stripper and Cutter
- Heat Shrink Tubing or Electrical Tape
- Multimeter (Optional)
1. Cut the USB Cable: Cut the USB cable to the desired length, keeping in mind the maximum recommended lengths for different USB versions.
2. Strip the Cable Insulation: Use a wire stripper to expose the internal wires.
3. Prepare the USB Connectors: Open the connectors or use pre-made ones for soldering.
4. Solder the Wires: Connect each wire to the appropriate terminal on the connectors. Ensure that the VCC (red) wire is connected to the VCC terminal, GND (black) to GND, D- (white) to D-, and D+ (green) to D+.
5. Insulate the Connections: Use heat shrink tubing or electrical tape to protect the connections.
Once the extension cable is made, test it by connecting a USB device to ensure it's recognized by your computer. This step is crucial to verify that the connections are correct and there are no short circuits.
For longer distances, USB extenders are more effective. These devices amplify and boost the USB signal, allowing for cable runs beyond the standard limits.

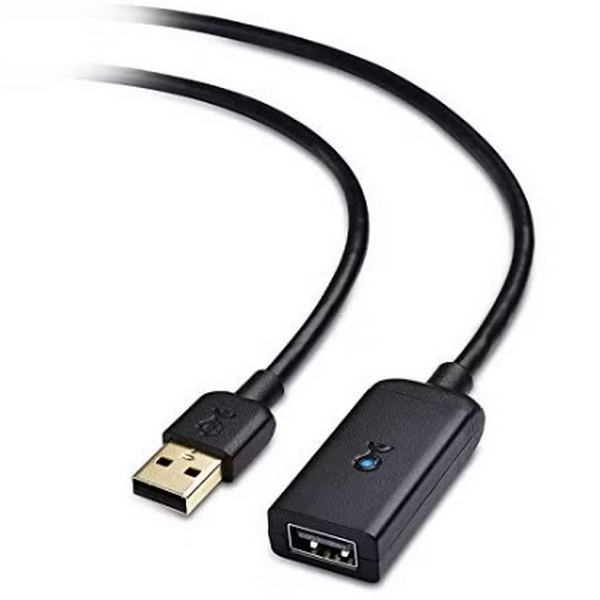

- Active Cables: Contain repeater circuits that recondition and retransmit the signal, extending the cable length significantly.
- USB Hubs: Can be used to extend the distance by acting as signal repeaters.
- Ethernet-based Extenders: Use Ethernet cables to extend USB signals over longer distances.
Active USB cables are designed to extend the length of USB connections beyond the standard limitations. They contain tiny electronic circuits that reshape, re-amplify, and re-transmit the signal to maintain integrity over greater distances.
- Extended Lengths: Can extend USB 2.0 cables up to 30 meters and USB 3.0/3.1 cables up to 18 meters.
- Signal Integrity: Maintain high-speed data flow across longer distances.
- Cost: Generally more expensive than passive cables.
- Compatibility Issues: May not work with all devices or configurations.
USB hubs can also be used to extend the distance by acting as simple signal repeaters. By daisy-chaining multiple hubs, you can increase the coverage area.
- Cost-Effective: Less expensive than active cables.
- Flexibility: Allow multiple devices to be connected.
- Bandwidth Limitations: Shared among all connected devices.
- Connection Tier Limitations: Limited number of tiers in a daisy-chain configuration.
- Stability Concerns: Longer chains can lead to unstable connections.
For even longer distances, Ethernet-based extenders can be used. These systems transmit USB signals over Ethernet cables, allowing for much greater distances.
1. Transmitter: Converts the USB signal into an Ethernet signal.
2. Receiver: Converts the Ethernet signal back into a USB signal.
This method is particularly useful for extending USB connections across different rooms or floors. It's also beneficial in environments where multiple devices need to be connected over long distances.
- Long Distance Support: Can extend USB signals over hundreds of meters.
- Stability: Generally more stable than daisy-chaining USB hubs.
- Complexity: Requires more setup and configuration.
- Cost: Typically more expensive than active cables or hubs.
When working with electrical components, safety is paramount. Always ensure you are using proper insulation and avoid short circuits, which can damage devices or cause electrical shocks.
If your extended USB cable or extender setup is not working as expected, here are some common issues to check:
- Signal Strength: Ensure that the signal is strong enough for the distance.
- Cable Quality: Use high-quality cables to minimize signal degradation.
- Power Supply: Ensure that the power supply is adequate for all connected devices.
Extending a USB cable can be achieved through DIY methods or by using specialized equipment like active cables, USB hubs, or Ethernet-based extenders. Each method has its advantages and limitations, depending on the required distance and application. Understanding these options can help you choose the best solution for your needs.
The maximum length for a standard USB 2.0 cable is about 5 meters, while USB 3.0 and later versions are limited to around 3 meters.
Active USB cables contain small repeater circuits that sense and recondition deteriorating USB signals, reshaping, re-amplifying, and re-transmitting them to maintain signal integrity over longer distances.
Yes, USB hubs can be used to extend the distance by acting as signal repeaters. However, they have limitations such as shared bandwidth and connection tiers.
Ethernet-based USB extenders use Ethernet cables to transmit USB signals over longer distances. They consist of a transmitter that converts the USB signal into an Ethernet signal and a receiver that converts it back.
To make a DIY USB extension cable, you need a USB male connector, a USB female connector, a USB cable, a soldering iron, and other basic tools. Solder the wires to the appropriate terminals on the connectors and insulate the connections.
