Introduction to MIDI to USB Cables
MIDI (Musical Instrument Digital Interface) technology has been a cornerstone of music production for decades, allowing various electronic instruments and devices to communicate with each other. However, as technology advances, many modern computers and devices no longer have traditional MIDI ports, making it necessary to use MIDI to USB adapters to connect older MIDI devices to newer systems. In this article, we will explore how to make a MIDI to USB cable, common issues with MIDI connections, and troubleshooting tips.
Understanding MIDI and USB Protocols

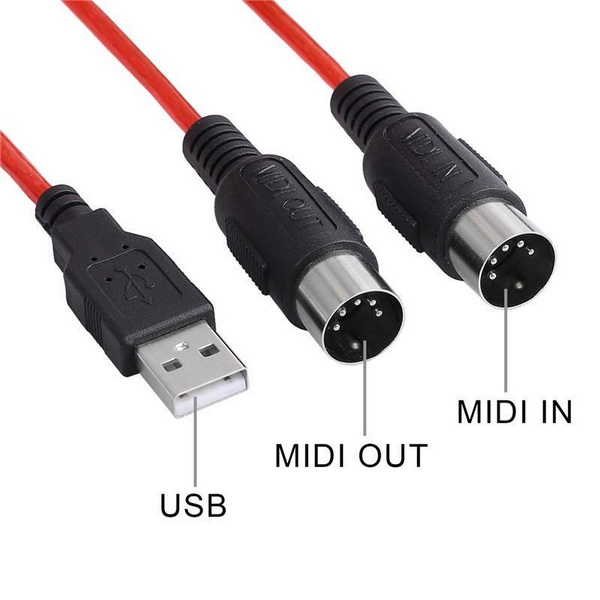

MIDI is a protocol that allows electronic musical instruments, computers, and related music and audio equipment to communicate, control, and synchronize with each other. It uses a 5-pin DIN connector for its connections. On the other hand, USB (Universal Serial Bus) is a standard interface for connecting devices to computers. To connect a MIDI device to a computer via USB, a MIDI to USB adapter is required.
Why Use a MIDI to USB Adapter?
- Compatibility: Many modern computers lack traditional MIDI ports, so an adapter is necessary for connecting older MIDI devices.
- Convenience: It simplifies the setup process by allowing you to use a single USB port instead of multiple MIDI cables.
- Flexibility: Some adapters can handle multiple MIDI inputs and outputs, making them ideal for complex setups.
Building a MIDI to USB Adapter

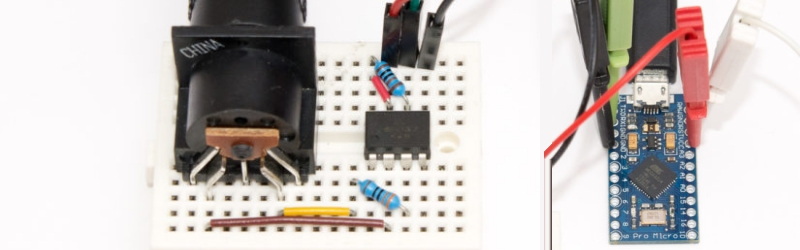

Creating a DIY MIDI to USB adapter involves using a microcontroller like Arduino. Here's a basic guide:
Materials Needed:
- Arduino Micro or Leonardo: These boards have native USB support, making them ideal for creating a MIDI interface.
- Opto-coupler (e.g., 6N137): For isolating the MIDI circuit.
- Resistors: For completing the MIDI circuit.
- MIDI Connector: A 5-pin DIN connector for MIDI input/output.
- Breadboard and Jumper Wires: For prototyping.
Steps to Build:
1. Connect the MIDI Circuit: Use the opto-coupler and resistors to create a fully isolated current loop. Ensure that only the MIDI OUT connector has pin 2 connected to ground.
2. Connect to Arduino: Use the Arduino's digital pins to connect to the MIDI circuit. You will need to write or use existing firmware to handle MIDI to USB conversion.
3. Write Firmware: Use a library like the Control Surface library for Arduino to handle MIDI protocol complexities. This library allows you to add extra MIDI controls and filter MIDI data if needed.
4. Test the Adapter: Once built, test the adapter by connecting it to a MIDI device and a computer. Use MIDI software to monitor incoming MIDI data.
Common Issues with MIDI to USB Adapters
Despite their convenience, MIDI to USB adapters can sometimes malfunction. Here are some common issues and solutions:
Inverted MIDI Connections
- Problem: Inverting the MIDI In and Out cables can cause the adapter to not work.
- Solution: Ensure that the MIDI In plug goes into the MIDI Out port of the device, and vice versa.
Driver Issues
- Problem: Some adapters may require specific drivers to function properly.
- Solution: Check if your adapter is class-compliant. If not, install the necessary drivers from the manufacturer's website.
Hardware Malfunction
- Problem: Sometimes, the adapter itself may be faulty.
- Solution: Try using a different adapter or replacing the faulty one.
Troubleshooting MIDI Connections
If your MIDI device is not recognized by your computer, here are some troubleshooting steps:
1. Reconnect the Device: Unplug and replug the MIDI to USB adapter into a different USB port.
2. Restart the Computer: Sometimes, a simple reboot can resolve connectivity issues.
3. Check for Driver Updates: Ensure that your MIDI device drivers are up-to-date.
4. Use a MIDI Test Utility: Software tools can help monitor MIDI data and identify where the issue lies.
Advanced MIDI Applications
MIDI technology is not limited to just connecting devices. It can also be used in advanced applications such as live performances, studio recordings, and even lighting control systems.
Live Performances
In live performances, MIDI is crucial for synchronizing lights, video, and sound effects with music. It allows performers to control multiple devices from a single console, enhancing the overall experience.
Studio Recordings
In the studio, MIDI is used to record and edit musical performances. It allows producers to adjust timing, pitch, and other parameters of recorded tracks with precision.
Lighting Control Systems
MIDI can also control lighting systems, allowing for synchronized light shows during performances. This is achieved by using MIDI to control DMX (Digital Multiplex) lighting controllers.
MIDI in Modern Music Production
MIDI remains a vital tool in modern music production. It allows producers to create complex musical arrangements using virtual instruments and effects processors. Software like Ableton Live, Logic Pro, and FL Studio heavily rely on MIDI for their functionality.
Virtual Instruments
Virtual instruments, such as software synthesizers and drum machines, are controlled via MIDI. This allows producers to create a wide range of sounds without the need for physical instruments.
Effects Processors
MIDI can also control effects processors, allowing for dynamic changes in sound during performances or recordings.
Conclusion
Creating a MIDI to USB adapter can be a fun DIY project, especially with the help of microcontrollers like Arduino. However, for most users, purchasing a pre-made adapter is more convenient and cost-effective. Understanding how MIDI and USB protocols work can help troubleshoot common issues and ensure seamless integration of older MIDI devices with modern computers. MIDI technology continues to play a crucial role in music production and live performances, offering flexibility and precision in controlling electronic instruments and devices.
Frequently Asked Questions (FAQ)
1. What is a MIDI to USB adapter used for?
A MIDI to USB adapter is used to connect MIDI devices to computers that lack traditional MIDI ports, allowing them to communicate and control each other.
2. Can I make my own MIDI to USB cable?
Yes, you can build a DIY MIDI to USB adapter using an Arduino or similar microcontroller. However, it requires some technical knowledge and components.
3. Why does my MIDI to USB adapter not work?
Common issues include inverted MIDI connections, driver problems, or hardware malfunctions. Try reconnecting cables, updating drivers, or replacing the adapter.
4. Do all MIDI devices require drivers?
Many modern MIDI devices are class-compliant and do not require specific drivers. However, some may need drivers installed for proper functionality.
5. Can I use a USB to MIDI adapter with any device?
Generally, yes, but ensure that your device supports MIDI over USB. Some devices may require specific adapters or configurations.
