Introduction to Micro USB to HDMI Cables
Creating a micro USB to HDMI cable is a complex project that requires a good understanding of electronics and the right tools. This guide will walk you through the process, explaining the challenges and providing alternative solutions for connecting micro USB devices to HDMI-enabled displays.
Understanding Micro USB and HDMI Technologies
Micro USB is primarily used for data transfer and charging, operating on a protocol designed for communication between devices. It is commonly found on older smartphones and tablets. On the other hand, HDMI is a standard for transmitting high-definition video and audio signals, designed for point-to-point connections. It is widely used in home entertainment systems, including TVs, projectors, and gaming consoles.
Due to these differences, creating a direct cable is not as simple as splicing wires. Instead, active adapters or converters are required to bridge the gap between these two technologies. These adapters convert the digital signals from micro USB into a format that HDMI can understand.
Components Needed
To make a functional micro USB to HDMI cable or adapter, you will need the following components:
- Micro USB Connector: A male connector compatible with your device. Ensure it matches the type of micro USB port on your device (e.g., micro USB-B).
- HDMI Connector: A male connector to connect to your TV or monitor. Typically, this is an HDMI Type A connector.
- Active Converter Chip: Necessary for converting micro USB signals into HDMI-compatible signals. This chip is crucial for handling the complex signal conversion required.
- Soldering Kit: For assembling the components. This includes a soldering iron, solder, and possibly a soldering stand.
- Heat Shrink Tubing: To insulate the connections and protect them from environmental factors.
- Multimeter: To test connectivity and ensure proper wiring before plugging the cable into your devices.
- Cable Management Tools: Optional tools like cable ties or electrical tape can help keep the assembly organized.
Step-by-Step Guide
1. Strip the Wires: Strip the wires of both the micro USB and HDMI cables.
2. Identify Pins: Identify the pins on each connector using their respective pinout diagrams. For micro USB, there are typically five pins (VCC, D-, D+, ID, and GND), while HDMI has 19 pins.
3. Solder the Connections: Using a soldering iron, match the corresponding pins (e.g., power, ground) from the micro USB to the HDMI connector.
4. Attach Active Converter: Attach an active converter chip between the connectors if required. This chip will handle the signal conversion necessary for HDMI output.
5. Insulate Wires: Use heat shrink tubing to cover exposed wires.
6. Test the Cable: Test the cable using a multimeter to ensure proper connections before plugging it into your devices. This step is crucial to avoid damaging your equipment.
Troubleshooting Common Issues
- No Video Output: Check if your device supports MHL or if the active converter is functioning correctly.
- Poor Video Quality: Ensure proper connections and consider using higher-quality cables or adapters.
- Device Not Recognized: Verify that the adapter is properly connected and powered if necessary.
Alternatives to DIY

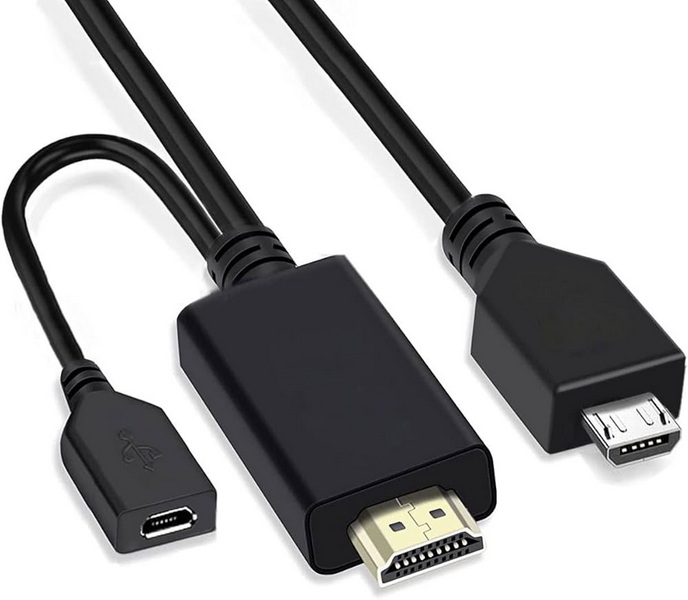

1. Purchase an MHL Adapter: These adapters are pre-built with active converters and are plug-and-play. They are widely available for devices that support MHL.
2. Use Wireless Casting Devices: Devices like Chromecast or Amazon Fire Stick can mirror your screen wirelessly, eliminating the need for cables altogether.
3. USB-C to HDMI Adapters: If your device supports USB-C, these adapters are more straightforward and often do not require active conversion for video output.
Advanced Solutions
For those interested in exploring more advanced solutions, consider the following:
- Custom Enclosures: Designing a custom enclosure can provide better protection and aesthetics for your DIY adapter.
- Signal Quality: Ensure that your cable or adapter maintains high signal quality to avoid video degradation or lag.
- Power Requirements: Some adapters may require external power sources to operate effectively, especially if they handle high-resolution video output.
Exploring MHL Technology
MHL (Mobile High-Definition Link) is a technology that allows devices to output video and audio signals through micro USB ports. However, not all devices support MHL, so it's essential to check your device's specifications before attempting to use an MHL adapter.
Designing for Durability
When building your own cable, consider using durable materials and techniques to ensure longevity. This includes using high-quality connectors and properly insulating the wires to protect against moisture and physical stress.
Choosing the Right Converter Chip
The choice of converter chip is critical for the success of your project. Look for chips that are specifically designed for micro USB to HDMI conversion and ensure they support the resolution and refresh rate you need.
Future Developments
As technology advances, newer standards like USB-C and Thunderbolt are becoming more prevalent, offering easier and more efficient ways to connect devices to displays. However, for older devices with micro USB ports, DIY adapters or MHL adapters remain viable options.
Conclusion
Creating a micro USB to HDMI cable is a challenging project that requires technical expertise and specialized components. While it is possible to build one, purchasing a ready-made adapter is often more practical and reliable. Understanding your device's requirements is crucial for success, whether you choose a DIY or pre-built solution.
Frequently Asked Questions
1. Can I Splice a Micro USB Cable Directly to an HDMI Cable?
- No, splicing is not sufficient because micro USB and HDMI use different communication protocols. An active converter is required to handle the signal conversion.
2. How Do I Know if My Device Supports MHL?
- Check your device's specifications in its user manual or online documentation for MHL compatibility.
3. Are There Any Risks in Making My Own Cable?
- Yes, improper wiring can damage your devices or pose safety hazards. Always proceed with caution and test connections thoroughly.
4. Is It Cheaper to Make My Own Cable Than Buying One?
- In most cases, purchasing an adapter is more cost-effective and reliable than building one from scratch due to the complexity of signal conversion.
5. What Are the Alternatives to Using a Micro USB to HDMI Cable?
- Alternatives include using wireless casting devices like Chromecast or purchasing USB-C to HDMI adapters if your device supports USB-C.
