Creating a Micro USB OTG (On-The-Go) cable allows you to connect your Android device to other USB devices like keyboards, mice, or flash drives, effectively turning your phone into a host device. This guide will walk you through the process step by step, including materials needed, detailed instructions, and troubleshooting tips.
Introduction to USB OTG
USB OTG is a technology that allows a USB device to act as a host or a peripheral. This means your Android phone can connect to other USB devices without needing a computer. The key to making an OTG cable is understanding how to configure the micro USB connector to enable host mode.
Materials Needed
- Female Standard USB Connector
- Male Micro USB Connector
- Thin Insulated Copper Wires (Red, Black, White, Green)
- Soldering Iron and Solder
- Heat Shrink Tubing or Electrical Tape
- Scissors or Wire Cutters
Step-by-Step Instructions
Step 1: Prepare the Connectors and Wires
First, obtain a female standard USB connector and a male micro USB connector. You will also need thin insulated copper wires in red, black, white, and green. Cut four pieces of wire to the same length (about 10 cm) and one very short piece for the OTG mode.
Step 2: Soldering the Wires

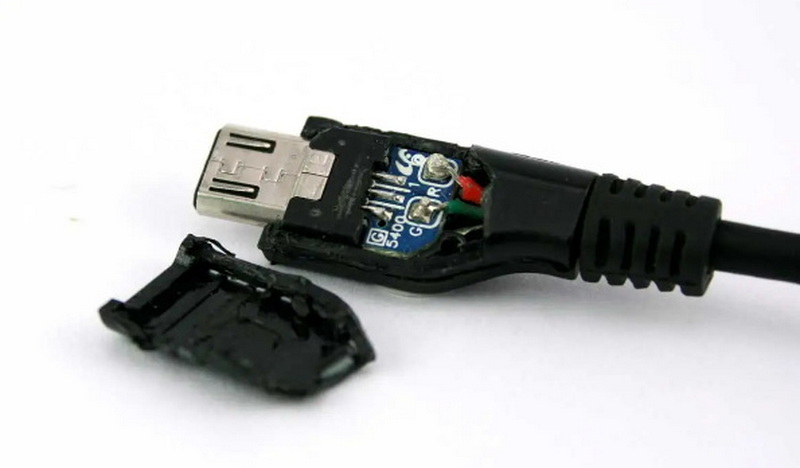

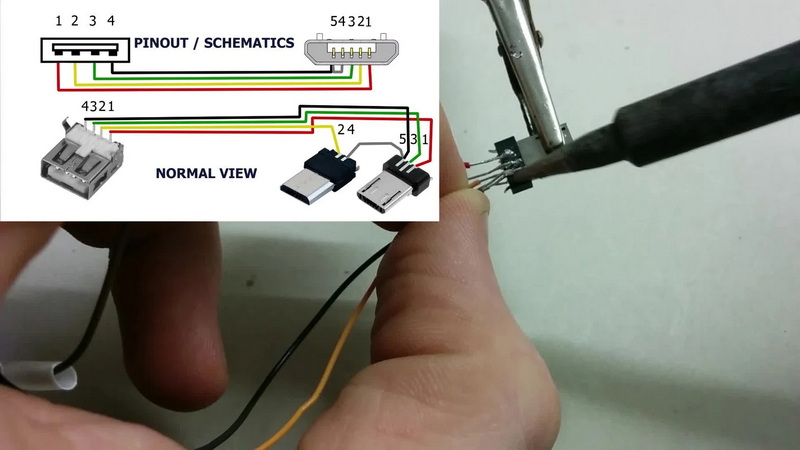

Peel the ends of the wires and apply a small amount of solder to facilitate soldering. The standard USB connector has four pins: red (VCC), black (GND), white (D-), and green (D+). For the micro USB connector, you need to connect these wires correctly and ensure the OTG pin (pin 4) is connected to ground (pin 5) to enable host mode. This step requires precision to avoid short circuits.
Step 3: Insulation and Assembly
After soldering, use heat shrink tubing or electrical tape to insulate the connections. This step is crucial for protecting the wires and ensuring the cable is durable. Make sure there are no exposed wires that could cause electrical shock or short circuits.
Step 4: Testing the Cable
Once assembled, test your OTG cable by connecting it to your Android device and a USB device like a keyboard or mouse. Ensure your phone supports OTG and has the necessary apps installed. Some devices may require specific software to recognize and manage OTG connections.
Common Uses of OTG Cables
OTG cables are incredibly versatile:
- File Transfer: Connect a flash drive to transfer files between your phone and the drive. This is particularly useful when you need to move large files without using cloud storage.
- Input Devices: Use keyboards or mice for more efficient input. This can be especially helpful for tasks that require extensive typing or precise cursor control.
- Game Controllers: Enhance gaming experiences with external controllers. Many games support OTG controllers, allowing for a more immersive experience.
- Powering Devices: Some OTG cables can be modified to power devices that require more power than your phone can supply, such as external hard drives.
Troubleshooting Tips
- Short Circuits: Check for any short circuits between wires. This is a common issue that can prevent the cable from working.
- Loose Connections: Ensure all soldered joints are secure. Loose connections can cause intermittent connectivity issues.
- Device Compatibility: Verify that your device supports OTG functionality. Not all Android devices are compatible with OTG.
Advanced Modifications: Adding External Power
For devices that require more power than your phone can supply, you can modify the OTG cable to include an external power source. This involves adding a power connector to the cable. This modification is useful for powering devices like external hard drives or larger game controllers.
Safety Precautions
When working with electrical components, safety is paramount:
- Use Protective Gear: Wear safety glasses and gloves to protect yourself from electrical shock.
- Work in a Well-Ventilated Area: Avoid inhaling solder fumes.
- Avoid Overheating: Keep the soldering iron at a safe temperature to avoid damaging components.
Conclusion
Creating a Micro USB OTG cable is a straightforward DIY project that can greatly enhance the functionality of your Android device. With the right materials and a bit of patience, you can enjoy the benefits of using your phone as a host device.
Frequently Asked Questions (FAQs)
1. What is USB OTG?
USB OTG allows a device to act as either a host or a peripheral, enabling it to connect to other USB devices without a computer.
2. How do I enable OTG mode on my micro USB connector?
To enable OTG mode, connect the OTG pin (pin 4) to the ground pin (pin 5) on the micro USB connector.
3. What devices can I connect using an OTG cable?
You can connect keyboards, mice, flash drives, and even game controllers to your Android device using an OTG cable.
4. Do all Android devices support OTG?
Not all Android devices support OTG. Check your device's specifications to confirm compatibility.
5. Can I use an OTG cable with other types of USB connectors?
OTG functionality is primarily associated with micro USB connectors, but USB-C devices may also support OTG with the appropriate adapters.
6. The OTG Cable Does Not Work with My Device
Ensure your device supports OTG and that the cable is properly assembled.
7. The Cable Keeps Disconnecting
Check for loose connections and ensure the cable is securely plugged in.
8. The Device Requires More Power Than My Phone Can Supply
Modify the OTG cable to include an external power source.
9. I Don't Have the Right Tools for Soldering
Use a soldering iron and solder from a local electronics store or online.
10. The OTG Cable Does Not Support Data Transfer
Verify that the cable is correctly wired for data transfer and that your device supports OTG data transfer.
